Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt from the data link connector.
  2. Remove the data link connector from the instrument panel.

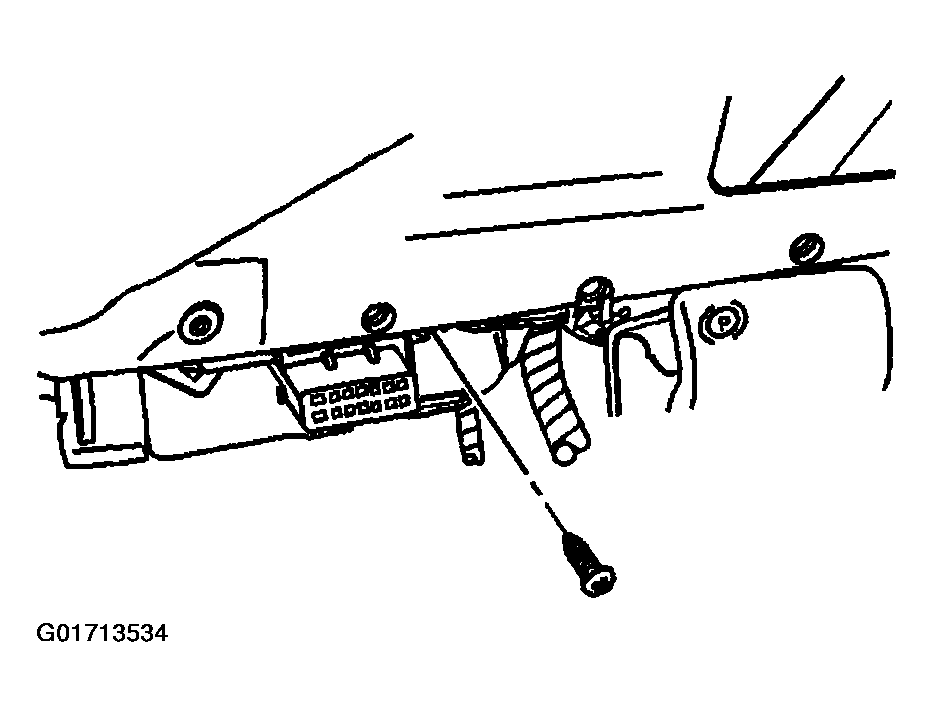

    Fig 1: Locating DLC
    G01713534Courtesy of GENERAL MOTORS CORP.
