Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt from the data link connector.
  2. Remove the data link connector from the instrument panel.

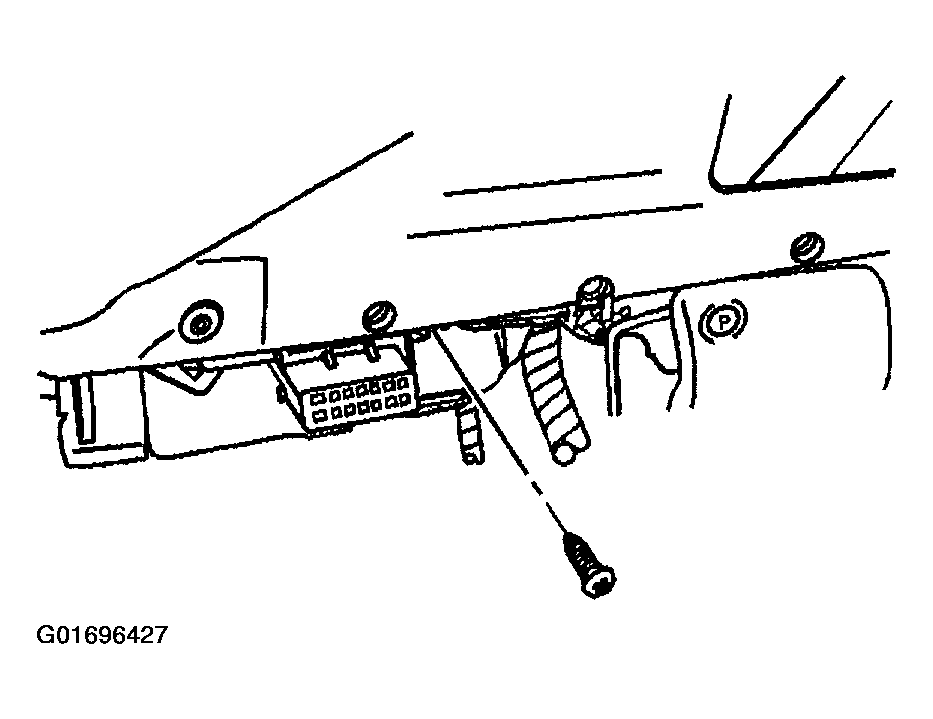

Fig 1: Removing Data Link Connector
G01696427Courtesy of GENERAL MOTORS CORP.
