Powertrain Control Module Location

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The powertrain control module is located on the left side of engine compartment under the air cleaner. See Fig 1.

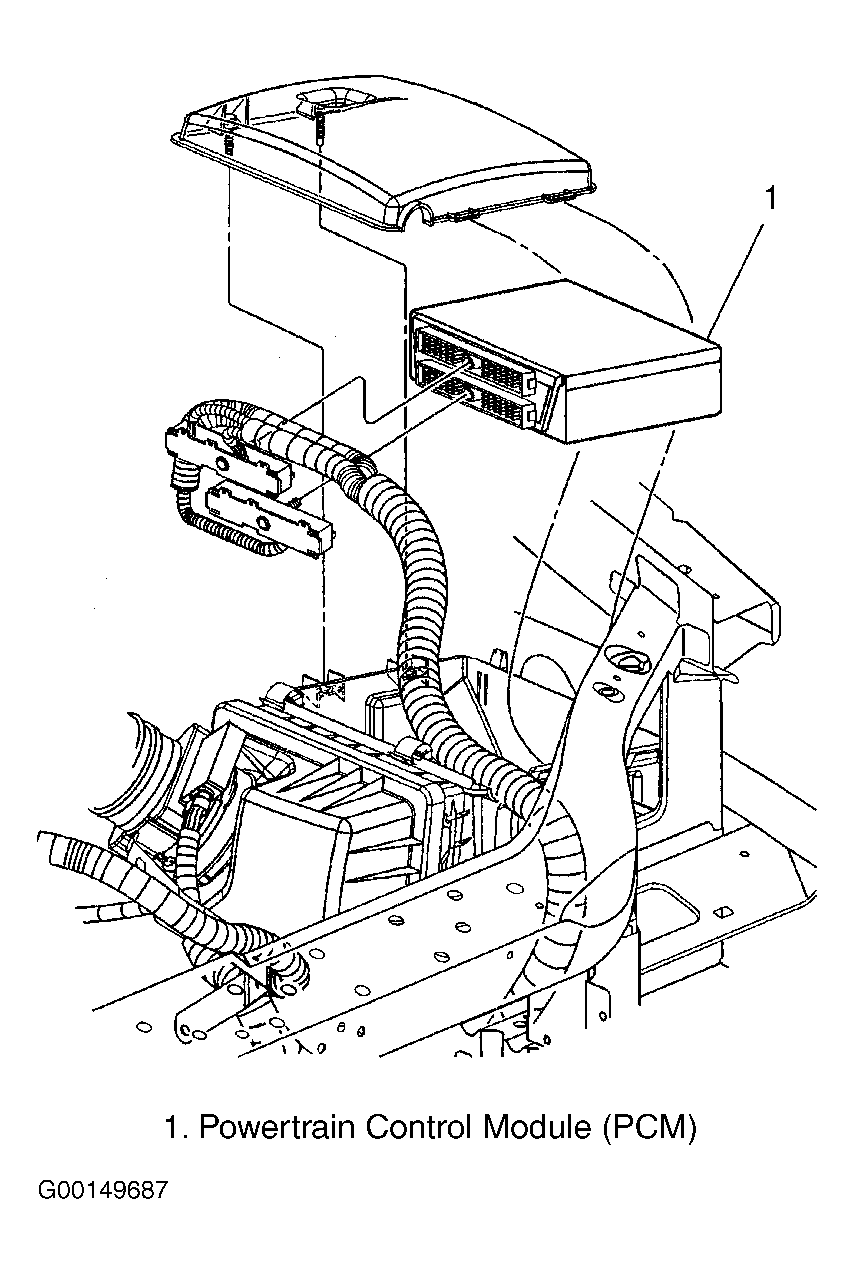

Fig 1: Locating Powertrain Control Module
G00149687Courtesy of GENERAL MOTORS CORP.
