Transmission Control Module Replacement (2.4L LAT)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

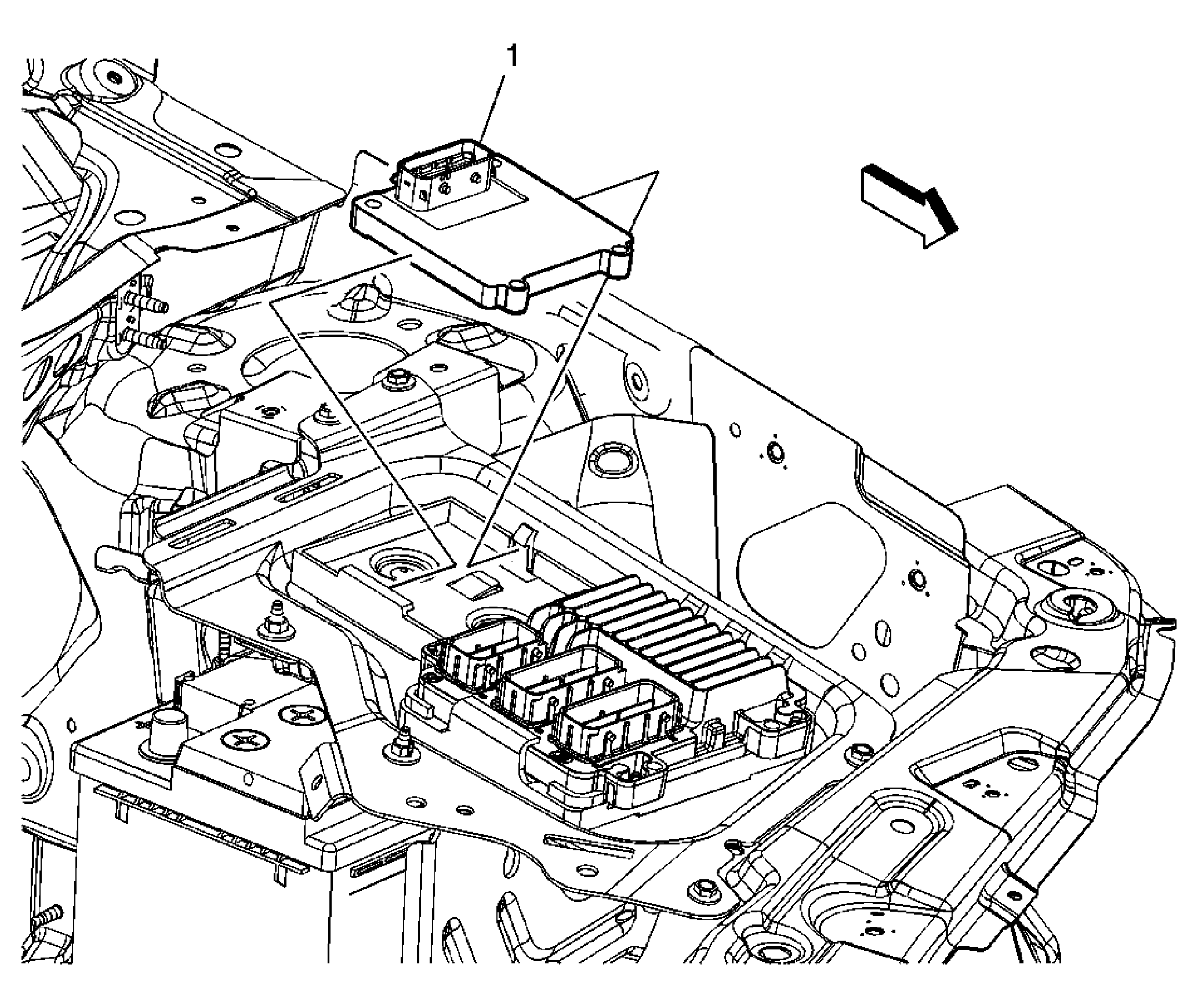

Fig 1: Transmission Control Module
GM1873798Courtesy of GENERAL MOTORS CORP.
Callout Component Name
CAUTION: Control module damage may result when the metal case contacts battery voltage. DO NOT contact the control module metal case with battery voltage when servicing a control module, using battery booster cables or when charging the vehicles battery.

Preliminary Procedures

  1. Remove the battery control module cover.
  2. Disconnect the transmission control module (TCM) electrical connector.
1 TCM
Procedure:
Reprogram the TCM. Refer to Control Module References for programming and setup information.
