Engine Controls Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

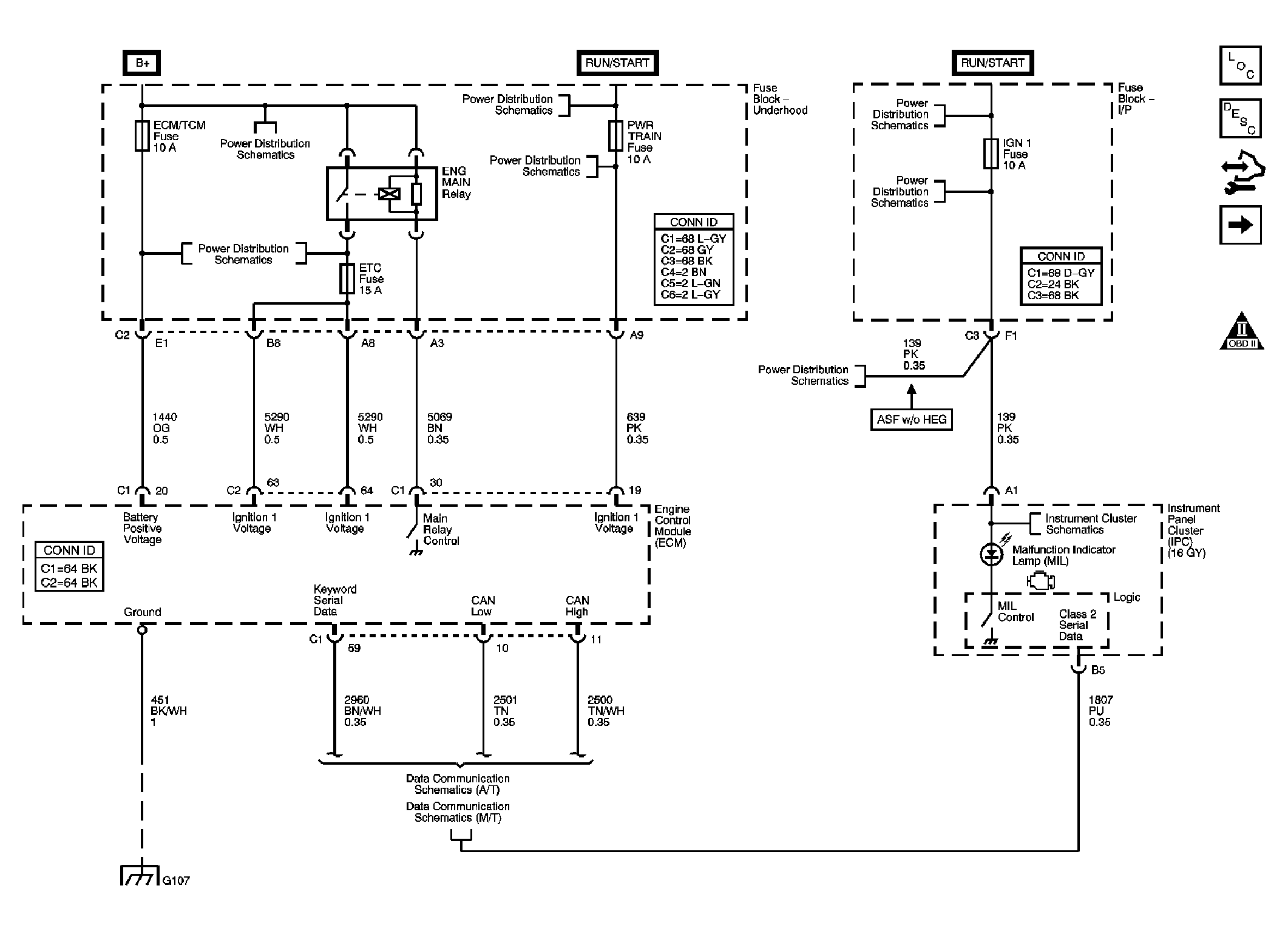

Fig 1: Power, Ground, MIL, and Serial Data

Courtesy of GENERAL MOTORS CORP.

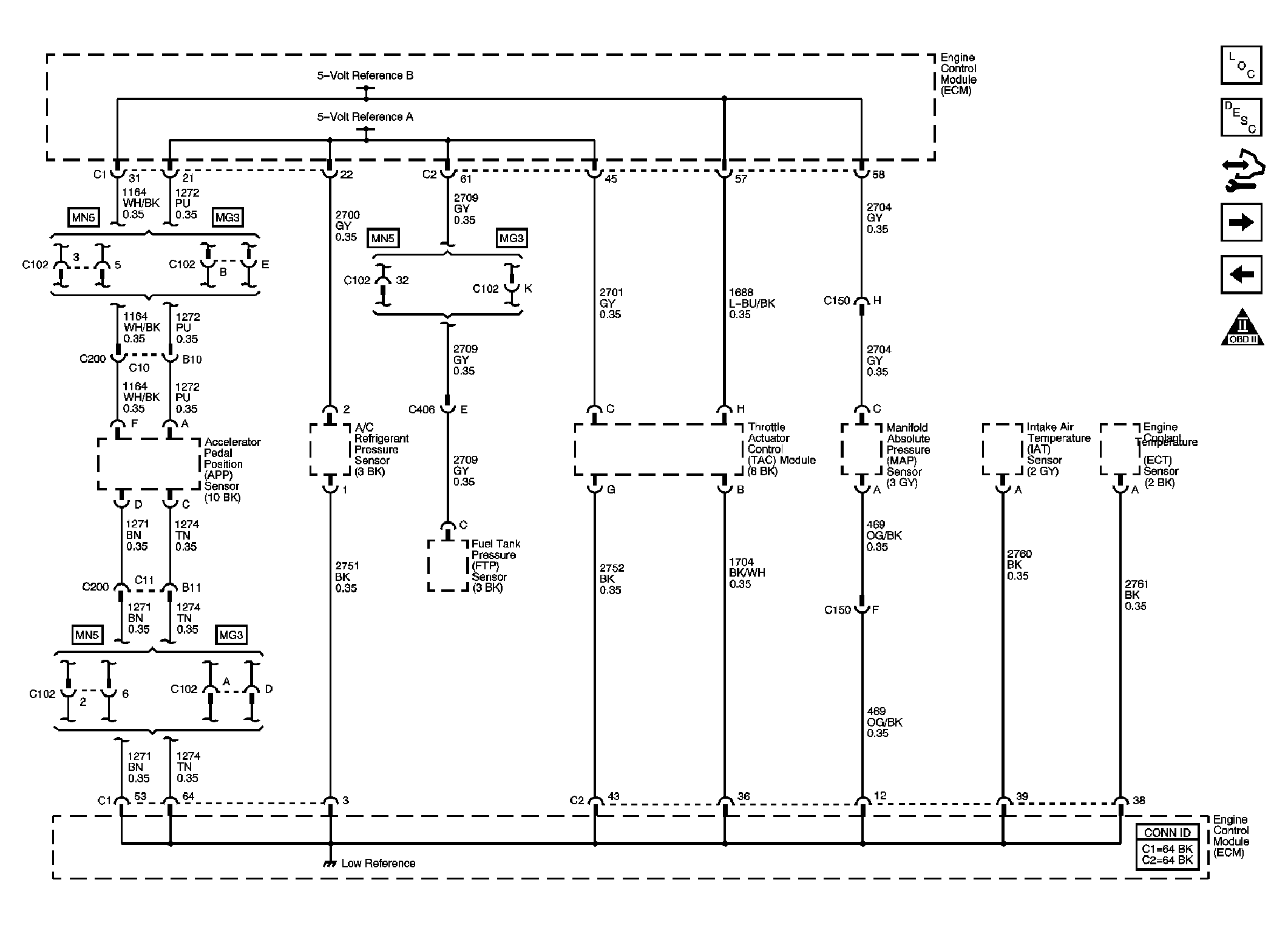

Fig 2: 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

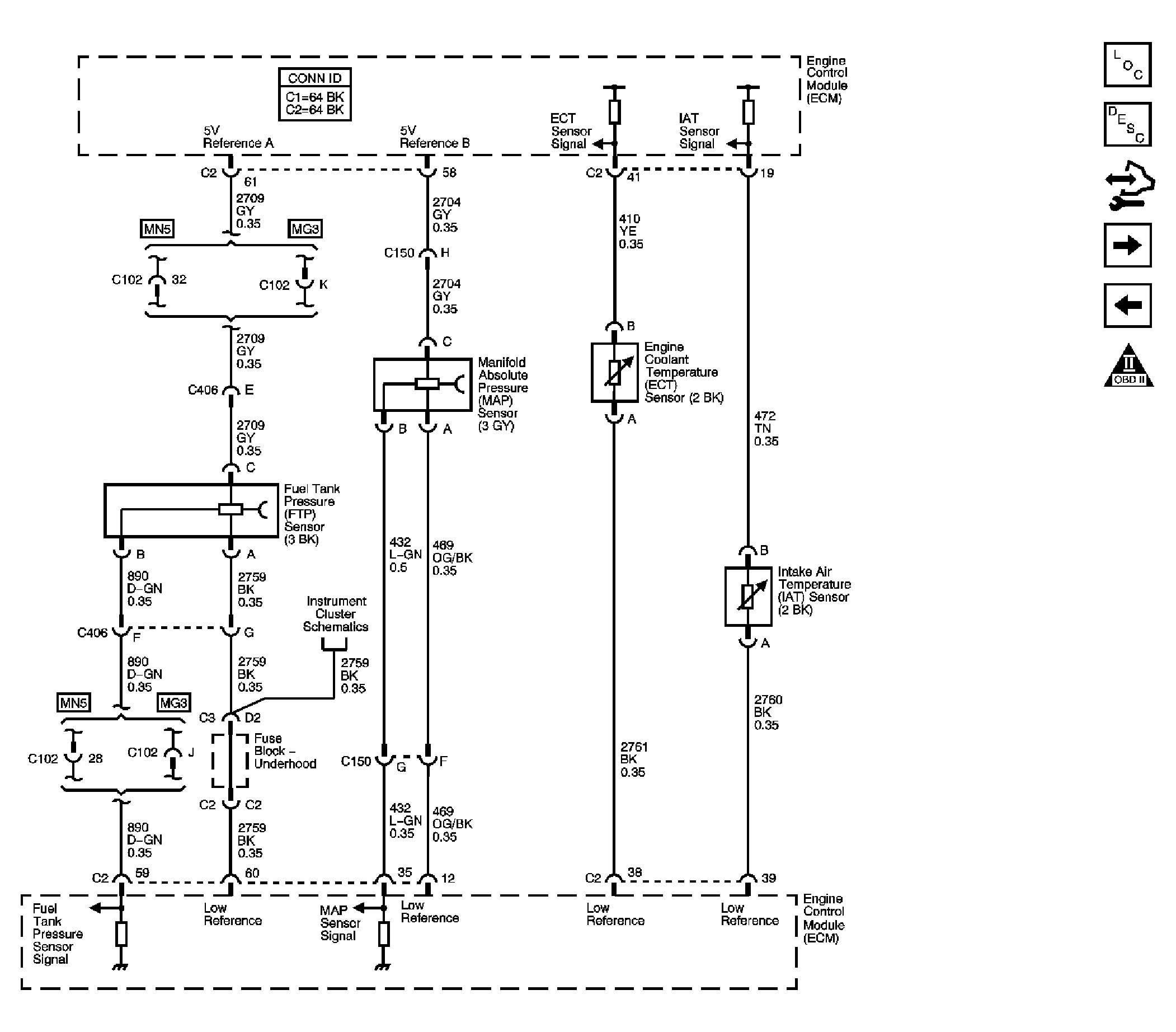

Fig 3: Pressure and Temperature Signals

Courtesy of GENERAL MOTORS CORP.

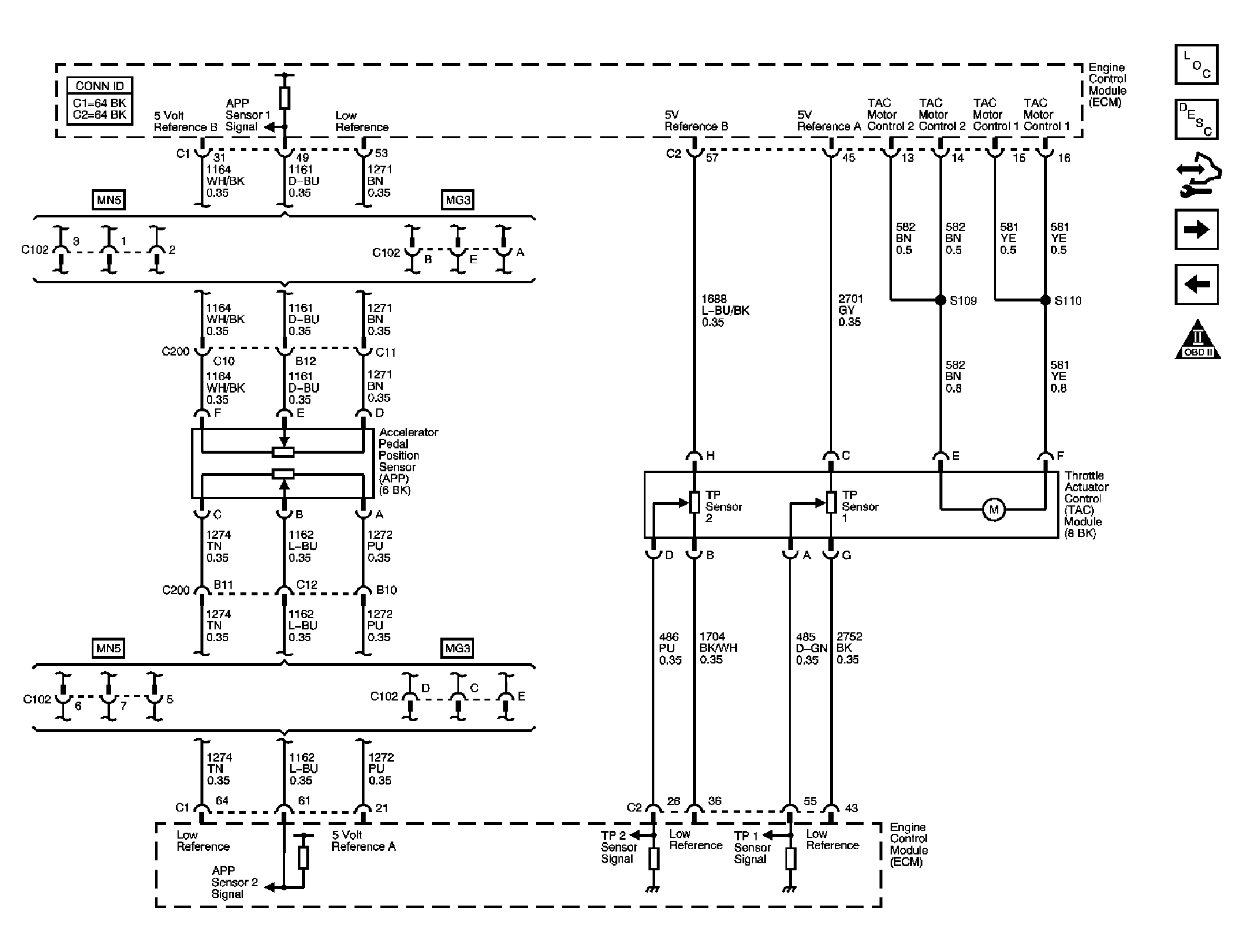

Fig 4: TAC and APP Sensor Signals

Courtesy of GENERAL MOTORS CORP.

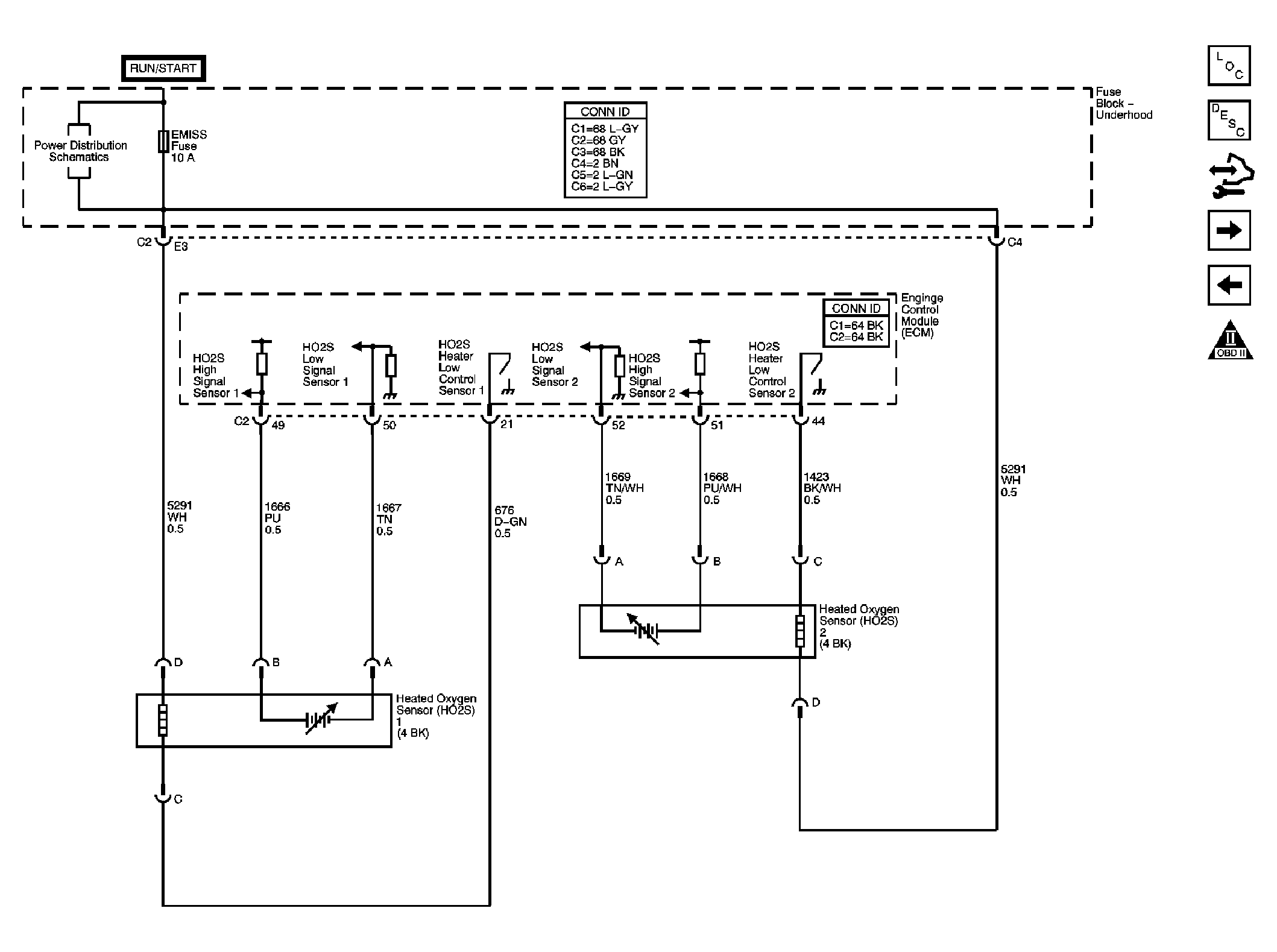

Fig 5: Oxygen Signals

Courtesy of GENERAL MOTORS CORP.

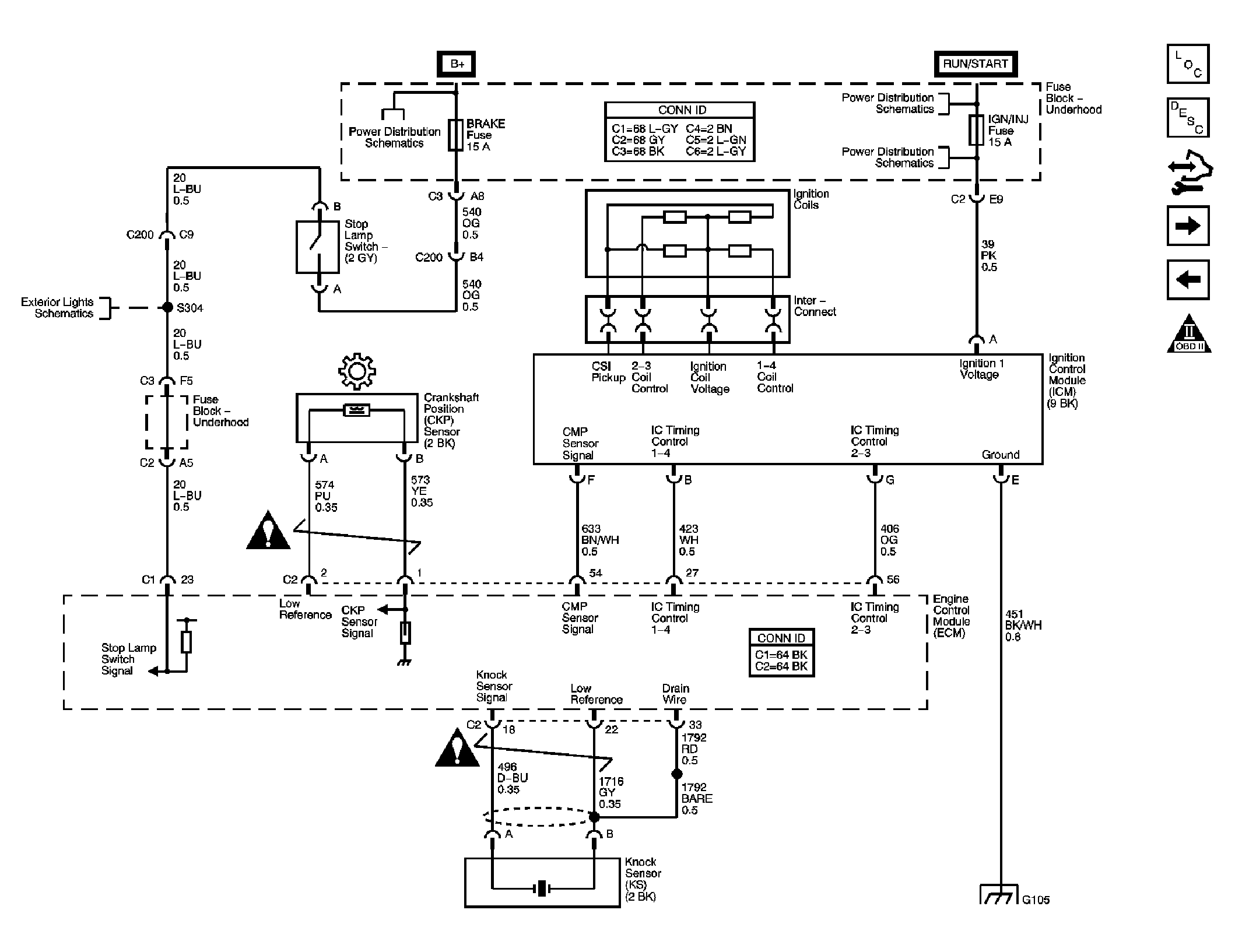

Fig 6: Ignition Controls

Courtesy of GENERAL MOTORS CORP.

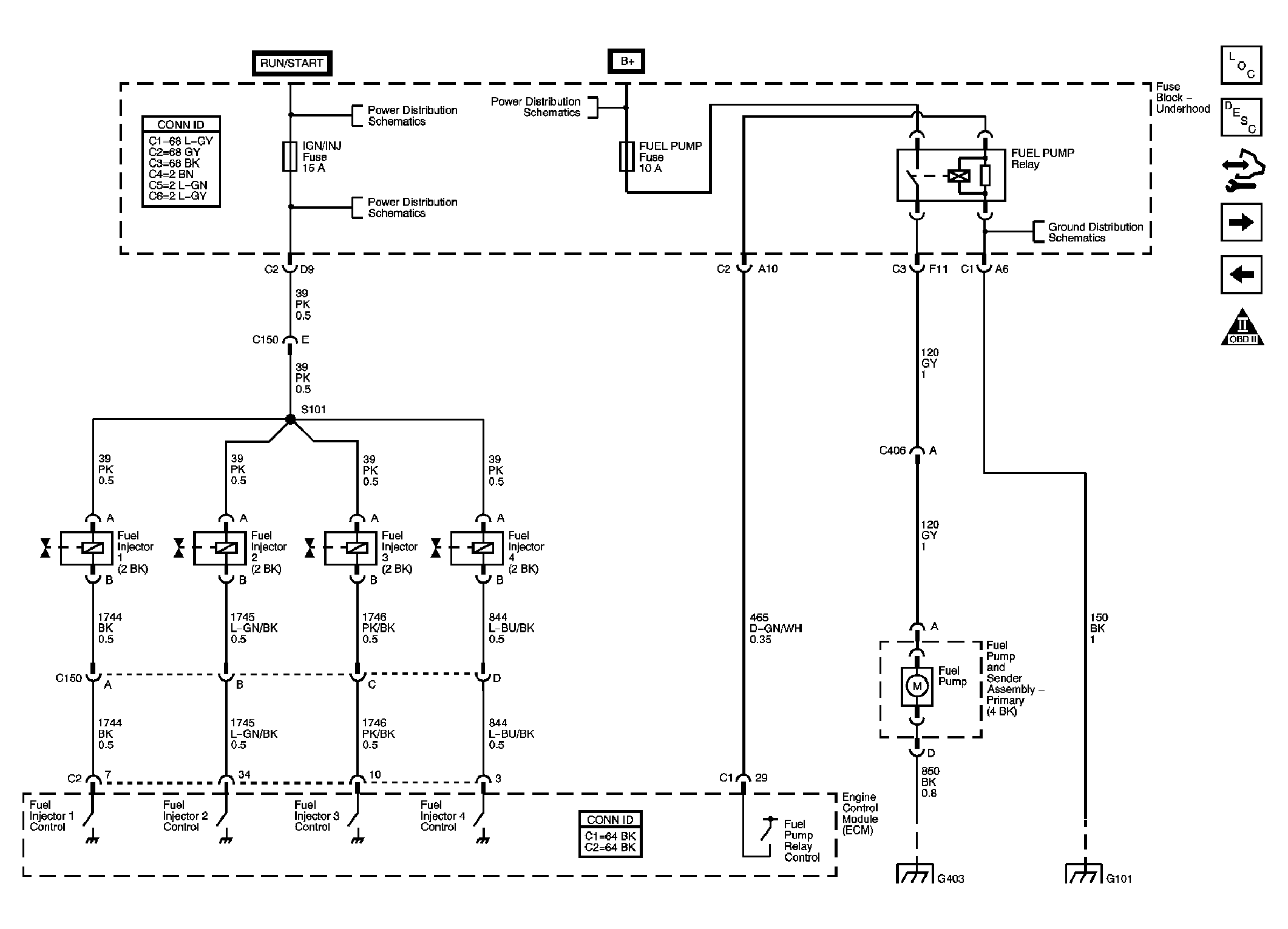

Fig 7: Fuel Pump and Injectors

Courtesy of GENERAL MOTORS CORP.

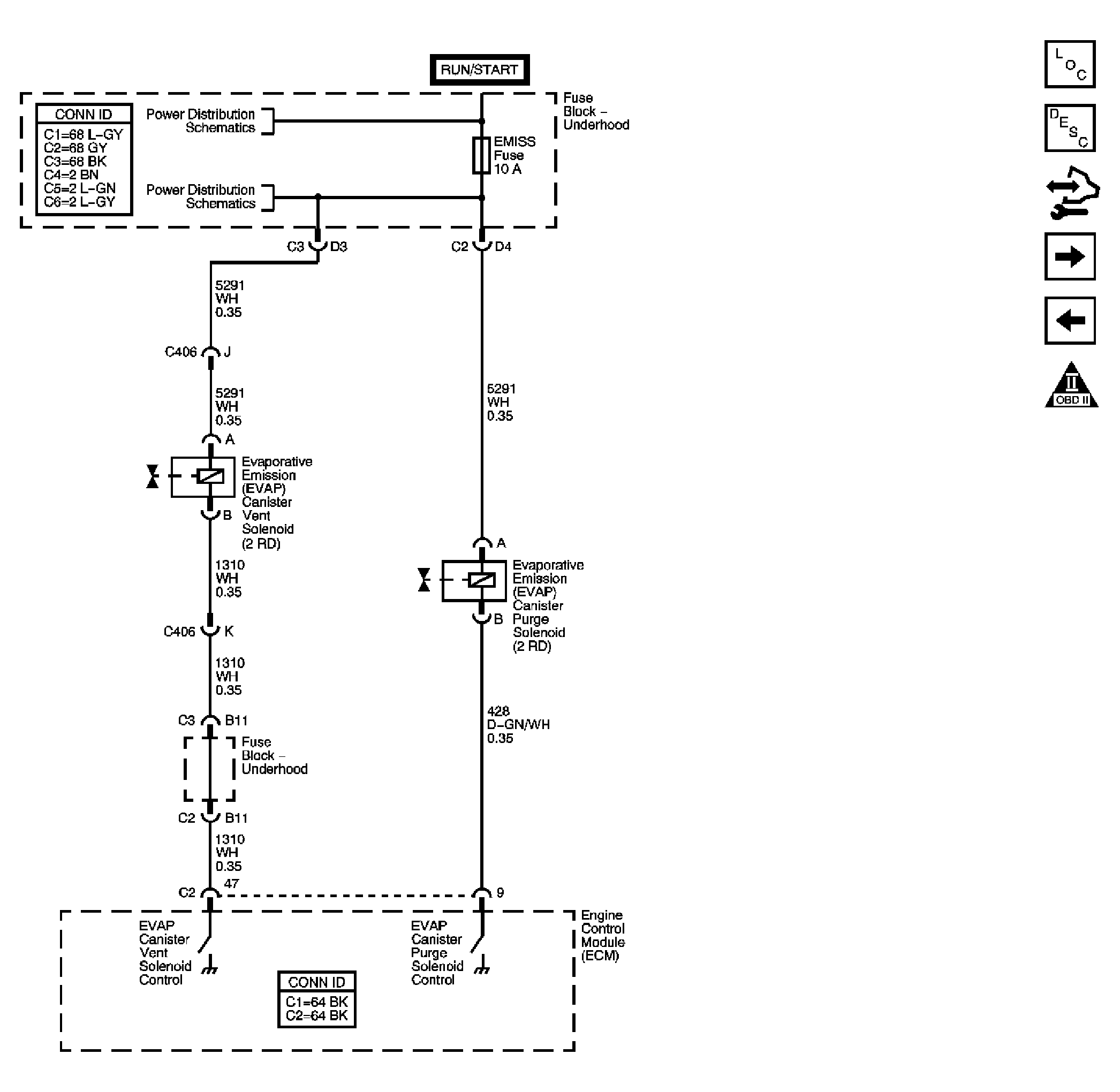

Fig 8: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

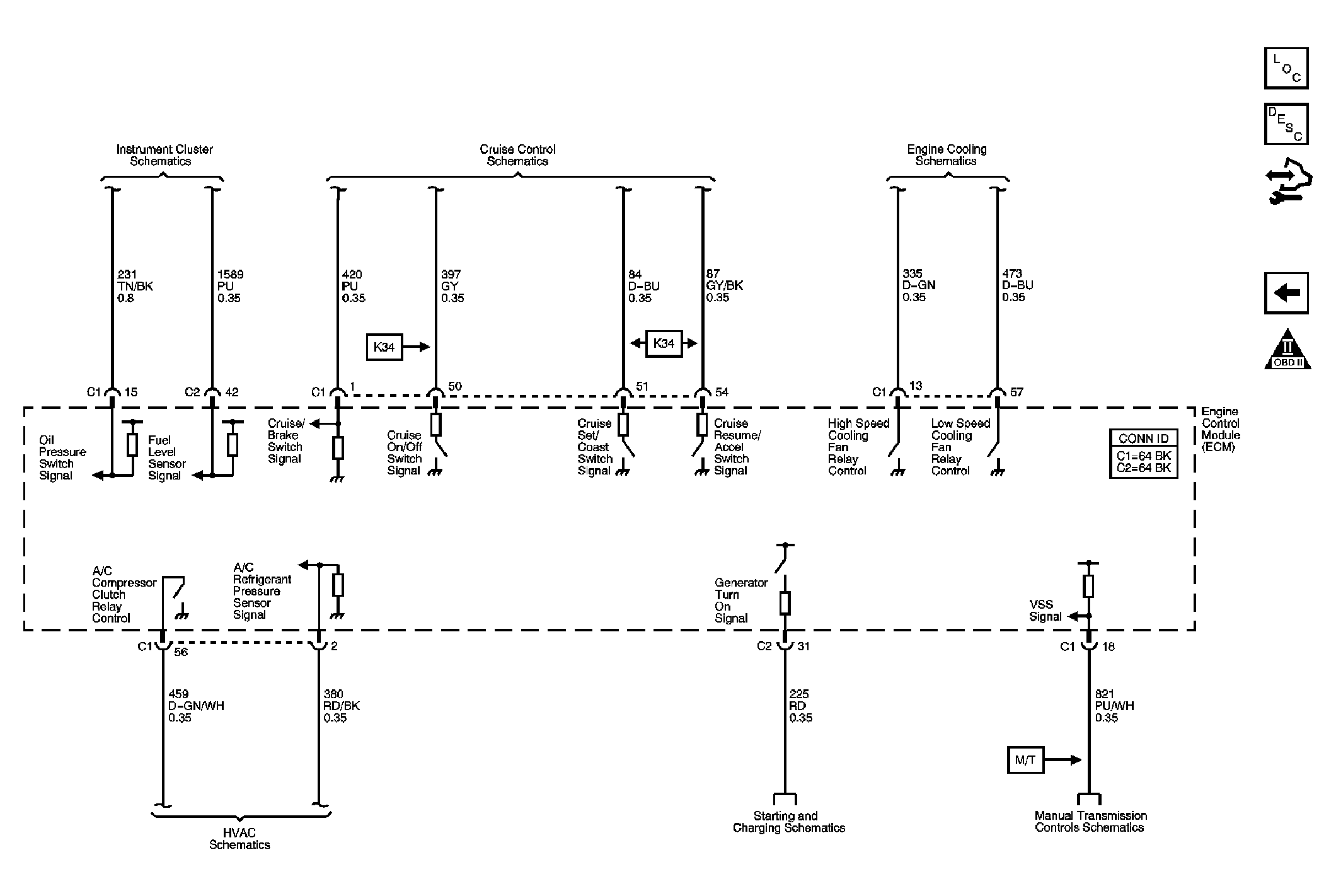

Fig 9: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
