Wiper/Washer System Schematics

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

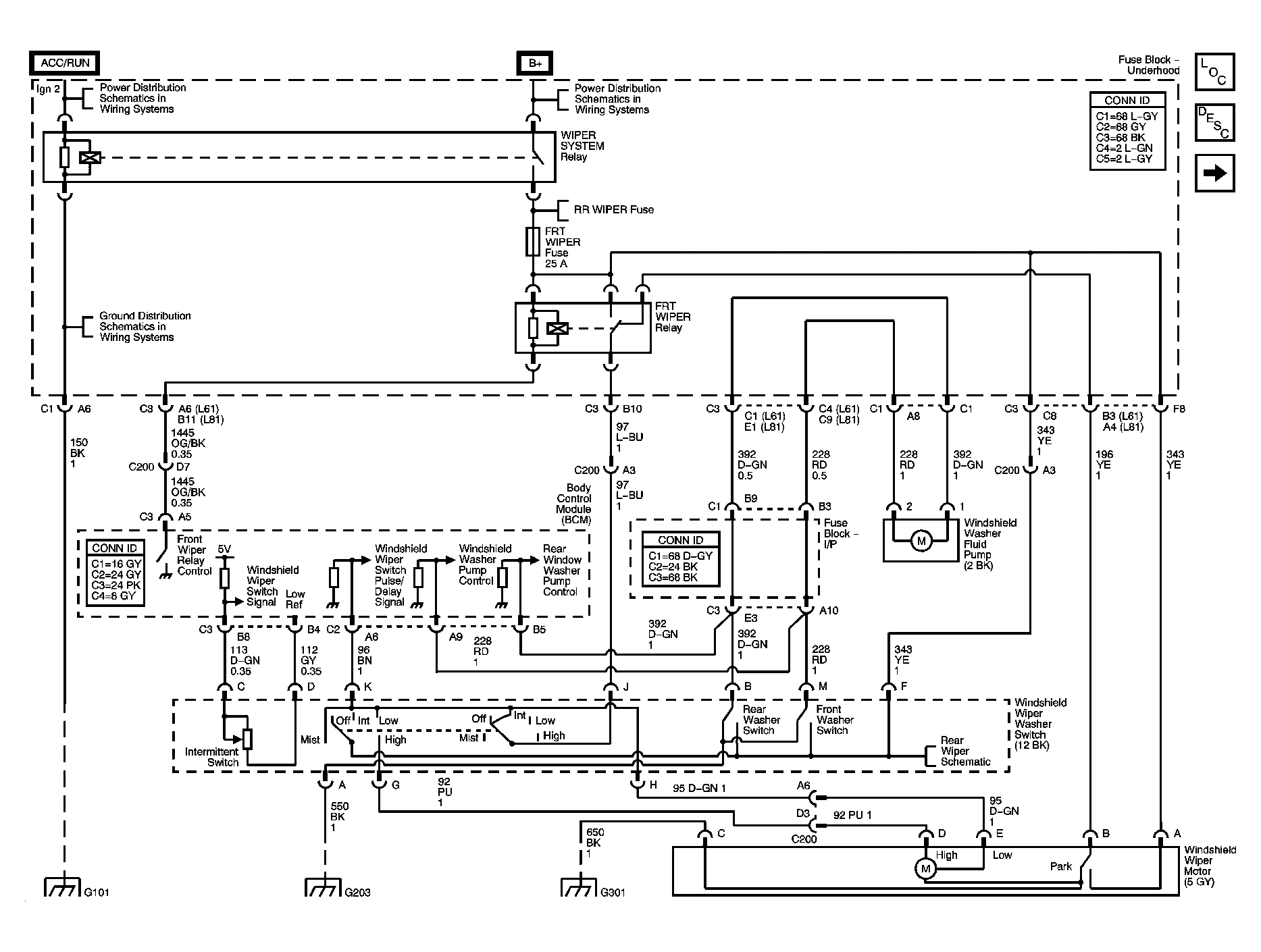

Fig 1: Wiper Switches & Washer Pump
GM1218098Courtesy of GENERAL MOTORS CORP.

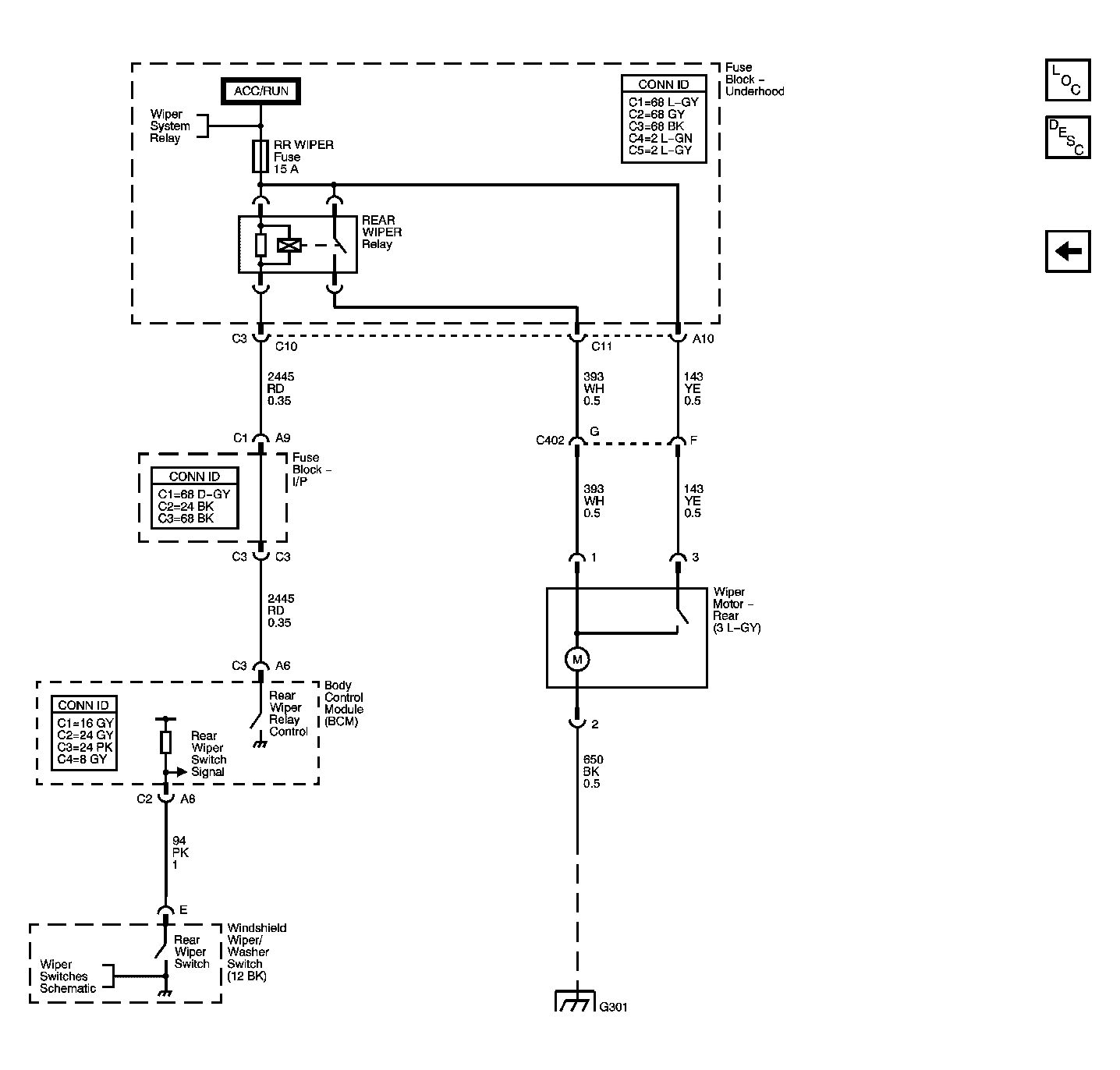

Fig 2: Rear Wiper
GM1218099Courtesy of GENERAL MOTORS CORP.
