Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

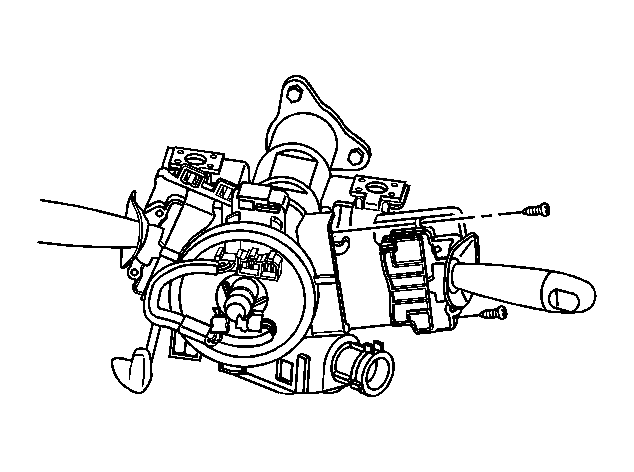

    Fig 1: Wiper Washer Switch
    GM878314Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the wipers/washer signal switch to the steering column.

    Tighten:  Tighten the wipers/washer signal switch screws to 2 N.m (17 lb in).

  2. Connect the wipers/washer switch harness connector.
  3. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement in Steering Wheel and Column.
