Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

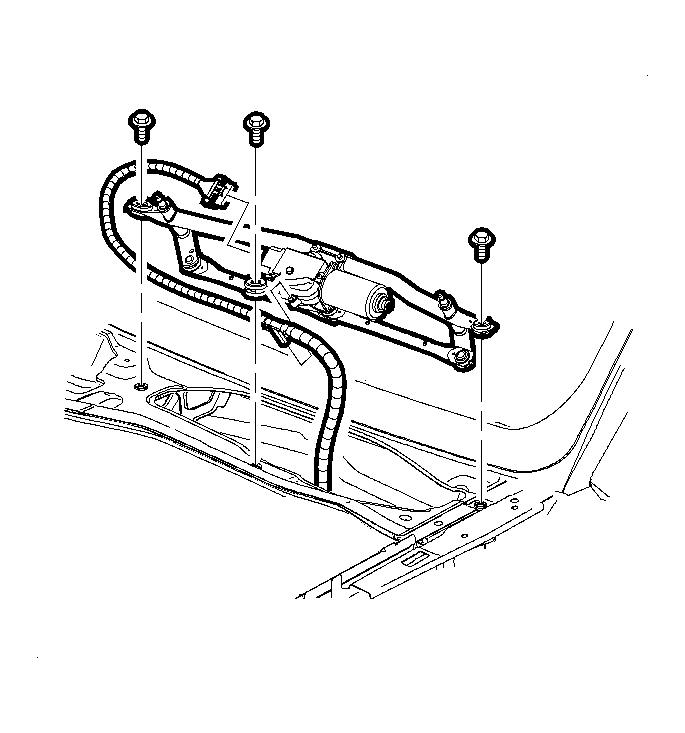

    Fig 1: Wiper Motor Module Assembly
    GM929322Courtesy of GENERAL MOTORS CORP.
  1. Connect the wiper module electrical connector to the motor.
  2. Connect the wire harness rosebud clip to the wiper module frame.
  3. Install the wiper module assembly into the plenum.
    4. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the fasteners attaching the wiper module assembly to the plenum.

    Tighten:  Tighten the fasteners to 12 N.m (9 lb ft)

  5. Turn the key to RUN position and cycle wiper system to ensure motor is in the park position.
  6. Install the air inlet screens. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  7. Install the wiper arms. Refer to Wiper Arm Replacement .
