Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

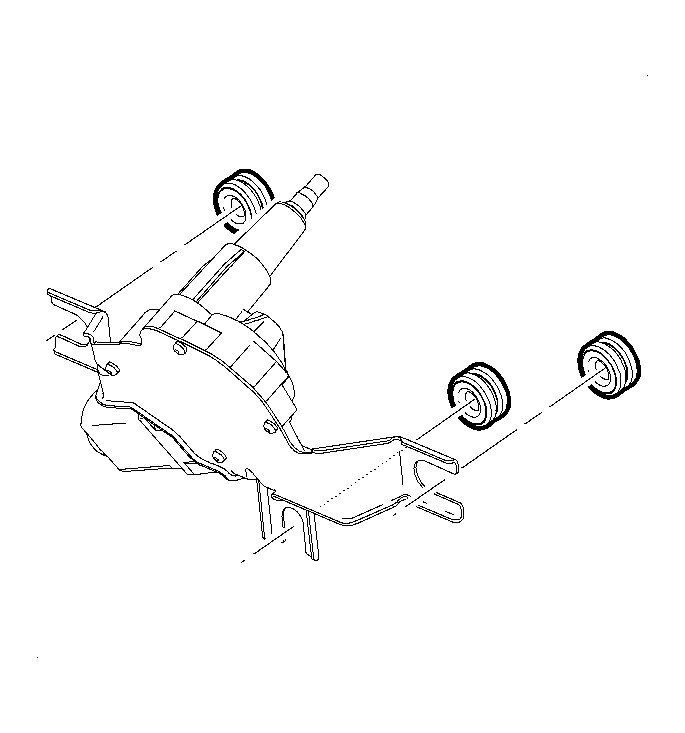

    Fig 1: Washer Solvent Filter Grommet
    GM929443Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The metal bushing inserts need to be installed with the flat side underneath the module bolts.
  1. Install the washer solvent filter grommet to the pump.
  2. Install the rear wiper motor. Refer to Wiper Motor Replacement - Liftgate .
