Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: The metal bushing inserts need to be installed with the flat side underneath the module bolts.

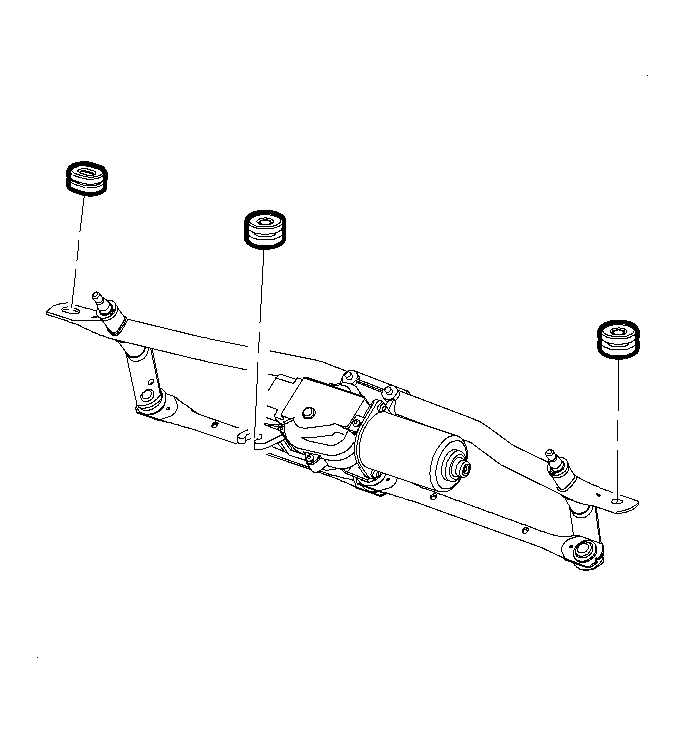

    Fig 1: Front Wiper Motor
    GM929441Courtesy of GENERAL MOTORS CORP.
  1. Install the grommets and the bushings to the module.
  2. Install the front wiper motor. Refer to Wiper Motor Module Replacement .
