Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

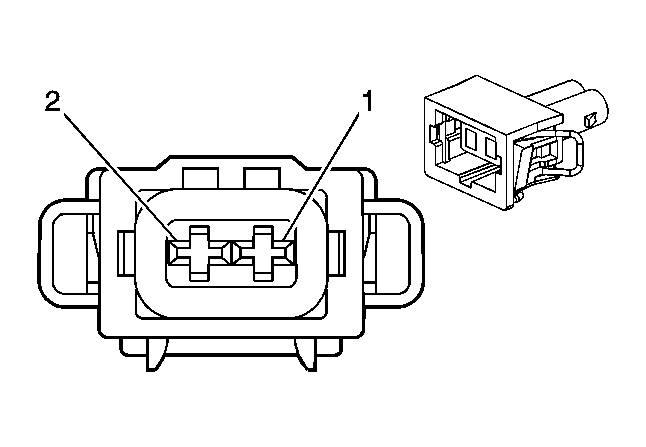

Windshield Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15305325 2-Way F Mini Timer (BK)
Pin	Wire Color	Circuit Number	Function
1	D-GN	392	Rear Window Washer Pump Control
2	RD	228	Windshield Washer Pump Control

Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12084891 5-Way F Metri-Pack 280 Series Sealed (GY)
Pin	Wire Color	Circuit Number	Function
A	YE	343	Accessory Voltage
B	YE	196	Windshield Wiper Motor Park Switch Signal
C	BK	650	Ground
D	PU	92	Windshield Wiper Motor High Speed
E	D-GN	95	Windshield Wiper Motor Low Speed

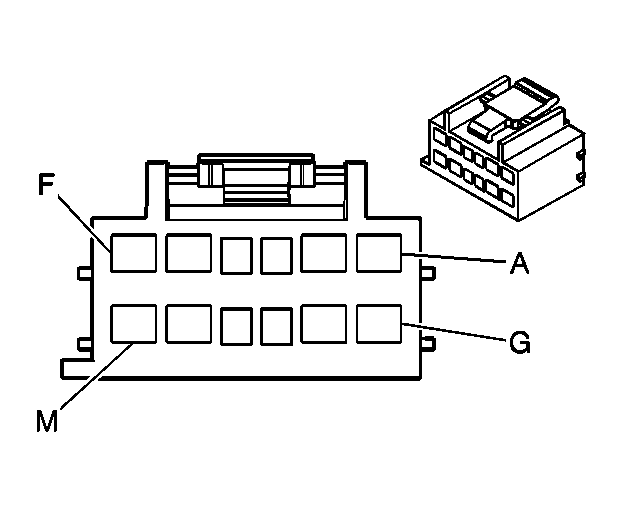

Windshield Wiper/Washer Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15336888 12-Way F GT 150 280 (BK)
Pin	Wire Color	Circuit Number	Function
A	BK	550	Ground
B	D-GN	392	Rear Window Washer Pump Control
C	D-GN	113	Windshield Wiper Switch Signal
D	GY	112	Low Reference
E	PK	94	Rear Wiper Switch Signal
F	YE	343	Accessory Voltage
G	PU	92	Windshield Wiper Motor High Speed
H	D-GN	95	Windshield Wiper Motor Low Speed
J	L-BU	97	Windshield Wiper Switch Mist/Off/Low Signal
K	BN	96	Windshield Wiper Switch Pulse Delay Signal
L	-	-	Not Used
M	RD	228	Windshield Washer Pump Control

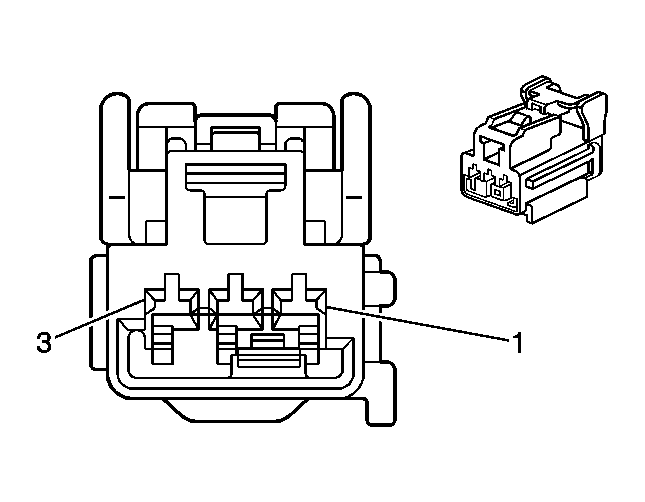

Wiper Motor - Rear

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7283-5539-40 3-Way F (L-GY)
Pin	Wire Color	Circuit Number	Function
1	WH	393	Rear Window Wiper Motor Control
2	BK	650	Ground
3	YE	143	Accessory Voltage
