Stationary Windows Connector End Views

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

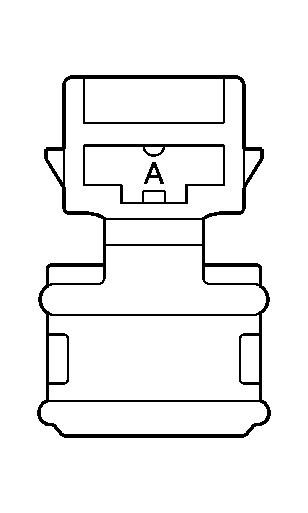

Rear Defogger C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		520961-1 1-Way (BK)
Pin	Wire Color	Circuit Number	Function
A	BK	293	Defogger Relay Control

Rear Defogger C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		520961-1 1-Way (BK)
Pin	Wire Color	Circuit Number	Function
A	BK	750	Ground

Inside Rearview Mirror (ISRVM)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		917981-2 16-Way F Housing Hybrid I/O (BK)
Pin	Wire Color	Circuit Number	Function
1-5	-	-	Not Used
6	L-GN/BK	735	Ambient Air Temperature Sensor Signal (w/DH3)
7	GY	720	Low Reference
8	BK	750	Ground
9	L-GN	24	Backup Lamps Supply Voltage
10	-	-	Not Used
11	D-GN/WH	2514	Keypad Signal (w/UE1)
12	L-GN/BK	2515	Keypad Supply Voltage (w/UE1)
13	YE	43	Accessory Voltage
14	YE/BK	2516	Keypad Green LED Signal (w/UE1)
15	BN/WH	2517	Keypad Red LED Signal (w/UE1)
16	-	-	Not Used
