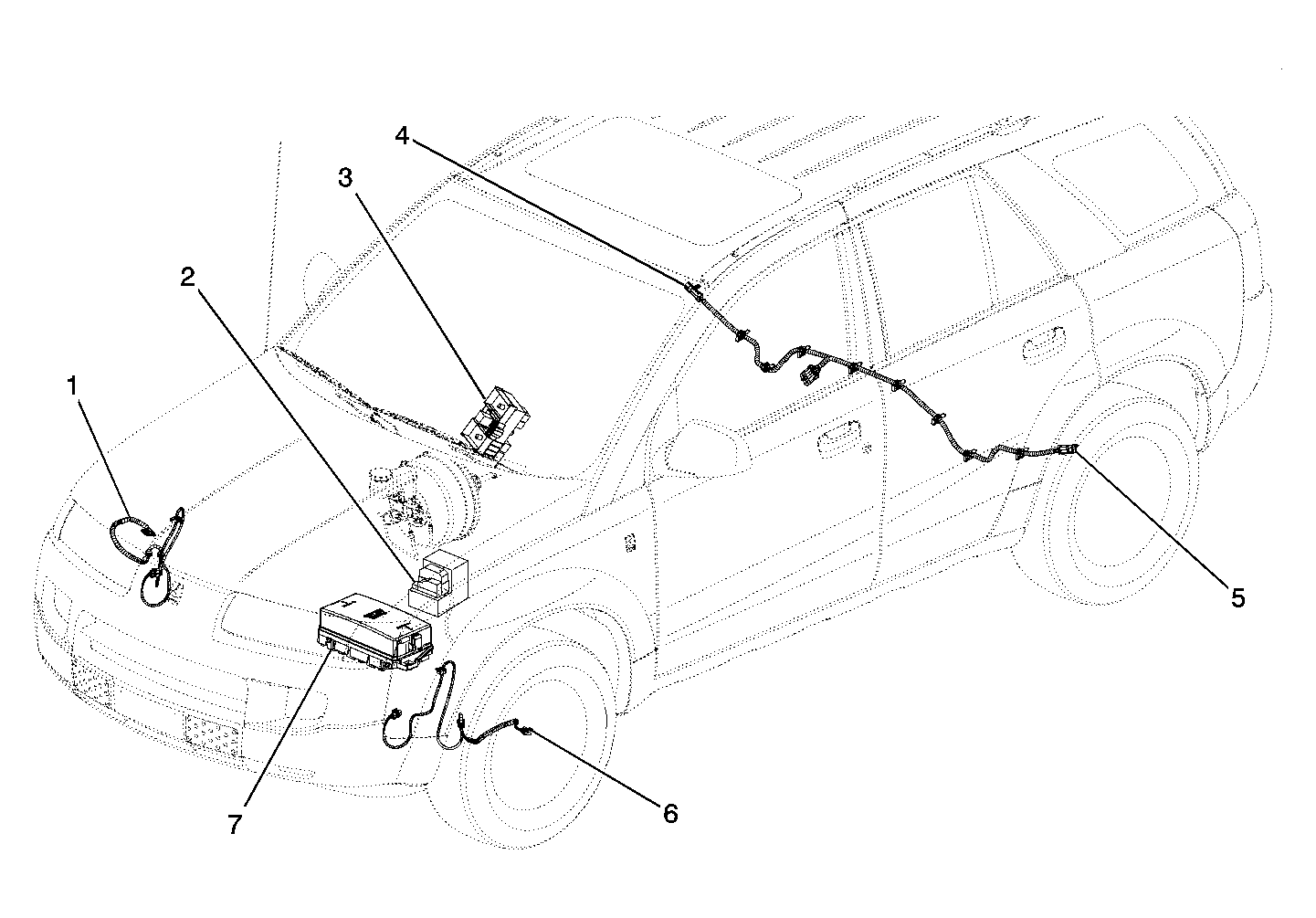

ABS Component Views
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Wheel Speed Sensor (WSS) - RF |
| 2 |
Electronic Brake Control Module (EBCM) |
| 3 |
Fuse Block - I/P |
| 4 |
Wheel Speed Sensor (WSS) - RR |
| 5 |
Wheel Speed Sensor (WSS) - LR |
| 6 |
Wheel Speed Sensor (WSS) - LF |
| 7 |
Fuse Block - Underhood |
