Power Door Systems Connector End Views

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Door Jamb Switch - LF

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A GY/BK 745 Left Front Door Ajar Switch Signal
B BK/WH 151 Ground
C - - Not Used
Door Jamb Switch - RF

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK/WH 746 Right Front Door Ajar Switch Signal
B BK 650 Ground
C - - Not Used

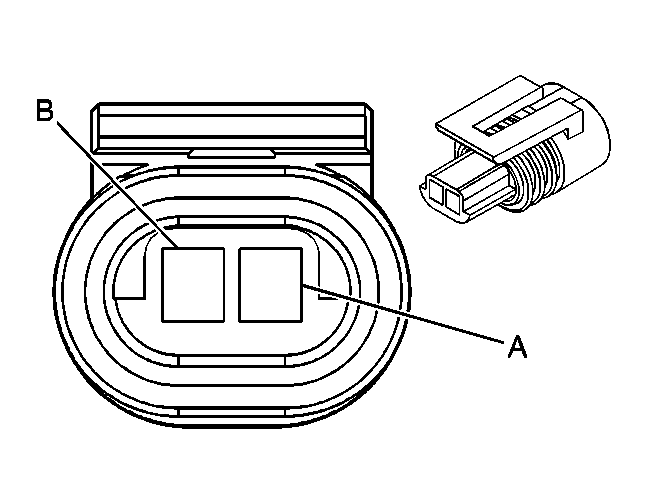

Door Jamb Switch - LR

GM295483Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304635
  • 2-Way F Metri-Pack 150 Series (L-GY)
Pin Wire Color Circuit No. Function
A BK/WH 746 Right Front Door Ajar Switch Signal
B BK 650 Ground
Door Jamb Switch - RR

GM295483Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304635
  • 2-Way F Metri-Pack 150 Series (L-GY)
Pin Wire Color Circuit No. Function
A BK/WH 746 Right Front Door Ajar Switch Signal
B BK 650 Ground
Door Lock Actuator - LF

GM872584Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6-1355678-1
  • 4-Way F Housing (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 TN 694 Driver Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 - - Not Used
Door Lock Actuator - RF

GM872584Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6-1355678-1
  • 4-Way F Housing (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 TN 294 Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 - - Not Used
Door Lock Actuator - LR

GM872584Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6-1355678-1
  • 4-Way F Housing (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 TN 294 Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 - - Not Used
Door Lock Actuator - RR

GM872584Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6-1355678-1
  • 4-Way F Housing (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 TN 294 Door Lock Actuator Unlock Control
3 GY 295 Door Lock Actuator Lock Control
4 - - Not Used
Door Lock Switch - Driver

GM872587Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 968943-1
  • 4-Way F Housing (BK)
Pin Wire Color Circuit No. Function
1 RD/BK 780 Driver Door Lock Switch Lock Signal
2 OG/BK 781 Driver Door Lock Switch Unlock Signal
3 OG 440 Battery Positive Voltage
4 - - Not Used
Door Lock Switch - Front Passenger

GM872587Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 968943-1
  • 4-Way F Housing (BK)
Pin Wire Color Circuit No. Function
1 RD/BK 780 Driver Door Lock Switch Lock Signal
2 OG/BK 781 Driver Door Lock Switch Unlock Signal
3 OG 440 Battery Positive Voltage
4 - - Not Used
Outside Rearview Mirror - Driver

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A YE 1496 Mirror Switch Control
B WH 81 Driver Mirror Motor Right Control
C L-GN 89 Driver Mirror Motor Down Control
Outside Rearview Mirror - Passenger

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A YE 1496 Mirror Switch Control
B RD/WH 881 Passenger Mirror Motor Right Control
C PU/WH 889 Passenger Mirror Motor Down Control
Outside Rearview Mirror Switch

GM901282Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336862
  • 8-Way F (GY)
Pin Wire Color Circuit No. Function
1 OG 440 Battery Positive Voltage
2 BK 650 Ground
3 PU/WH 889 Passenger Mirror Motor Down Control
4 WH 81 Driver Mirror Motor Right Control
5 YE 1496 Mirror Switch Control
6 - - Not Used
7 L-GN 89 Driver Mirror Motor Down Control
8 RD/WH 881 Passenger Mirror Motor Right Control
Window Motor - Front Passenger

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock, Sealed (GY)
Pin Wire Color Circuit No. Function
A D-BU 666 Power Window Motor Right Front Up Control
B BN 667 Power Window Motor Right Front Down Control
Window Motor - LR

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock, Sealed (GY)
Pin Wire Color Circuit No. Function
A D-BU 668 Power Window Motor Left Rear Up Control
B BN 669 Power Window Motor Left Rear Down Control
Window Motor - RR

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock, Sealed (GY)
Pin Wire Color Circuit No. Function
A D-BU 670 Power Window Motor Right Rear Up Control
B BN 671 Power Window Motor Right Rear Down Control
Window Motor - Driver

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock, Sealed (GY)
Pin Wire Color Circuit No. Function
A D-BU 164 Power Window Motor Left Front Up Control
B BN 165 Power Window Motor Left Front Down Control
Window Switch - Driver

GM333036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191825
  • 8-Way Metri-Pack 280 Series (BN)
Pin Wire Color Circuit No. Function
A D-BU 1307 Power Window Master Switch Lockout Control
B D-BU 164 Power Window Motor Left Front Up Control
C BN 165 Power Window Motor Left Front Down Control
D PU 638 Power Window Motor Driver Down Control
E PU 169 Power Window Master Switch Left Rear Down Signal
F BK 650 Ground
G D-GN 168 Power Window Master Switch Left Rear Up Signal
H D-BU 1307 Power Window Master Switch Lockout Control
Window Switch - Front Passenger

GM556473Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 156326924
  • 8-Way F GT 280 (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B D-BU 666 Power Window Motor Right Front Up Control
C BN 667 Power Window Motor Right Front Down Control
D PU 638 Power Window Motor Driver Down Control
E - - Not Used
F L-GN 170 Power Window Master Switch Right Rear Up Signal
G BK 650 Ground
H PU 171 Power Window Master Switch Right Rear Down Signal
Window Switch - LR

GM288397Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015344
  • 6-Way Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A PU 169 Power Window Master Switch Left Rear Down Signal
B BN 669 Power Window Motor Left Rear Down Control
C D-BU 1307 Power Window Master Switch Lockout Control
D D-GN 168 Power Window Master Switch Left Rear Up Signal
E D-BU 668 Power Window Motor Left Rear Up Control
F - - Not Used
Window Switch - RR

GM288397Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015344
  • 6-Way Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A PU 171 Power Window Master Switch Right Rear Down Signal
B BN 671 Power Window Motor Right Rear Down Control
C D-BU 1307 Power Window Master Switch Lockout Control
D L-GN 170 Power Window Master Switch Right Rear Up Signal
E D-BU 670 Power Window Motor Right Rear Up Control
F - - Not Used
