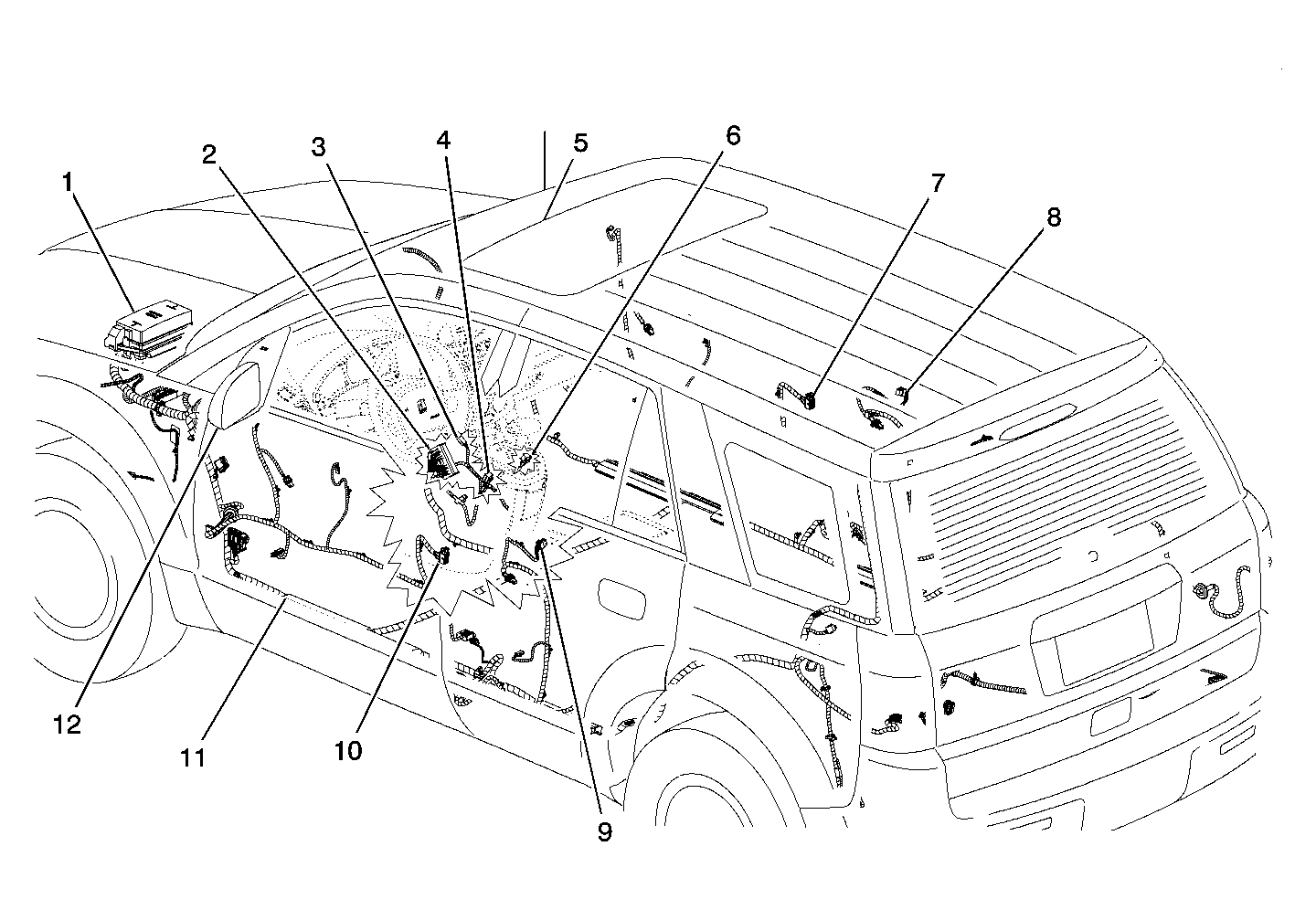

Power Door Systems Component Views
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Fuse Block - Underhood |
| 2 | Fuse Block - I/P |
| 3 | Body Harness |
| 4 | Window Switch - Driver |
| 5 | Sunroof Switch |
| 6 | Window Switch - Front Passenger |
| 7 | Window Motor - RR |
| 8 | Window Switch - RR |
| 9 | Window Switch - LR |
| 10 | Window Motor - LR |
| 11 | Body Harness |
| 12 | Outside Rearview Mirror - Driver, Passenger Similar |
