Engine Electrical Component Views

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

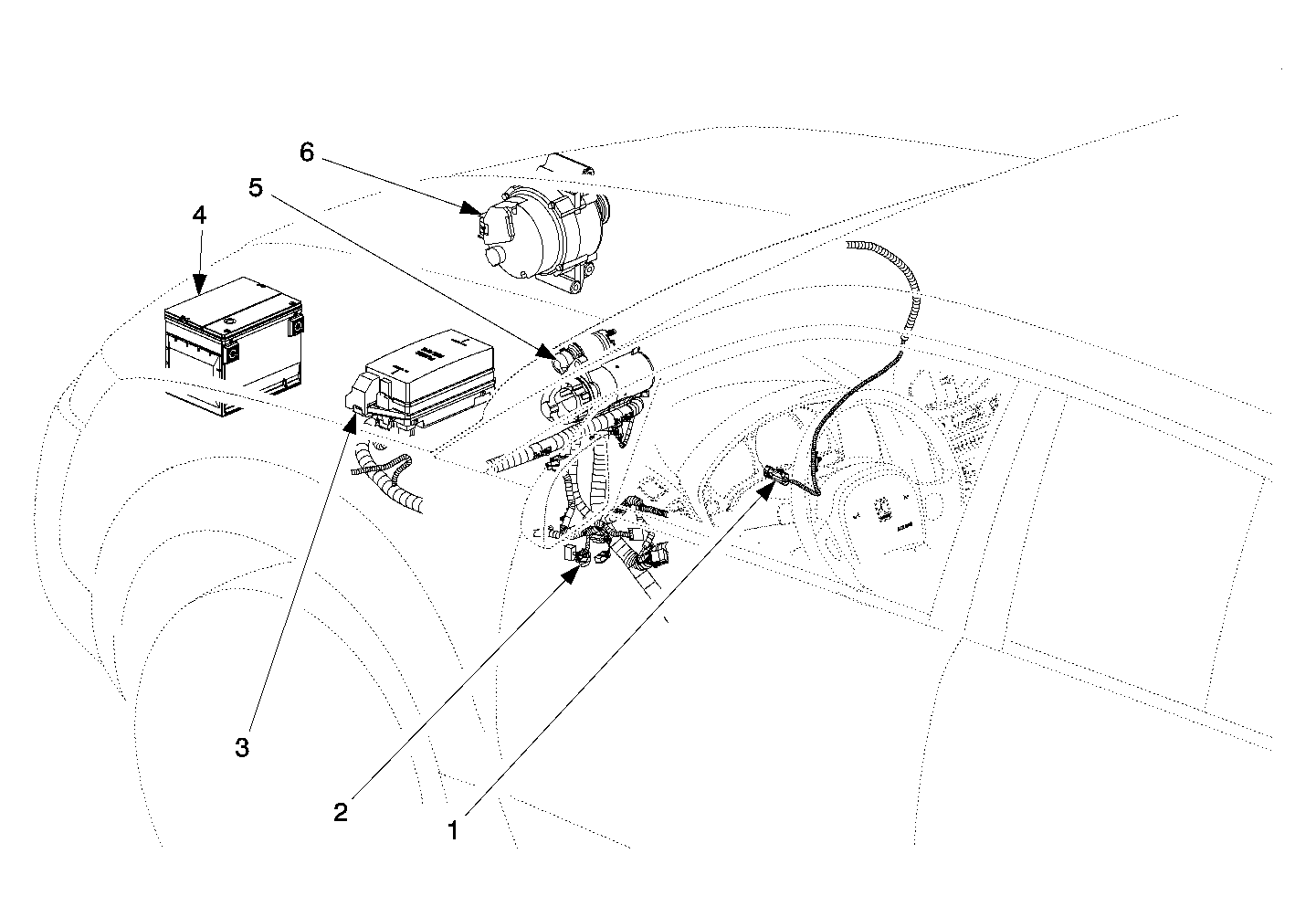

Fig 1: Starting & Charging Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Park/Neutral Position (PNP) Switch
3	Underhood Fuse Block
4	Battery
5	Starter
6	Generator
