Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

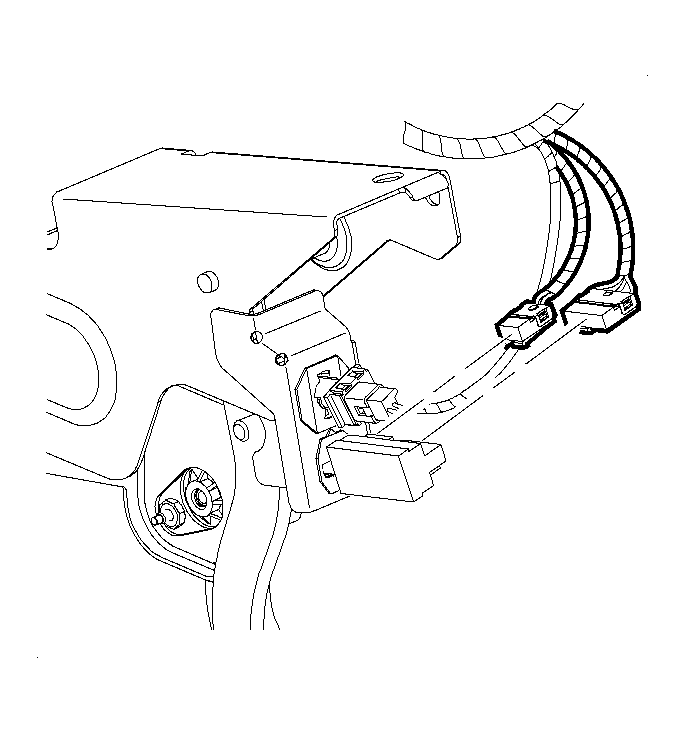

    Fig 1: Stop Lamp Switch
    GM931241Courtesy of GENERAL MOTORS CORP.
    NOTE: Proper stoplamp switch adjustment is essential. Improper stoplamp switch adjustment may cause brake drag, heat buildup and excessive brake lining wear.
    IMPORTANT: Do NOT depress the brake pedal assembly during the stop lamp switch installation. This will cause a drag condition on the brake.
    IMPORTANT: Inspect the retainer to insure that the locking tabs have locked into position and the retainer is in place.
  1. Connect the electrical connectors on the stop lamp switch.

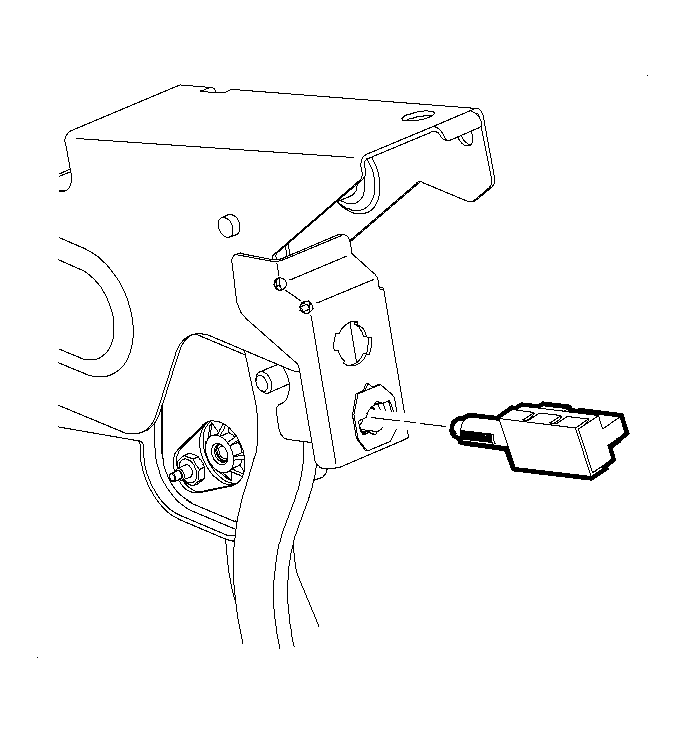

    2. Fig 2: Installing Switch To Bracket
    GM931292Courtesy of GENERAL MOTORS CORP.
  2. Install the switch to the bracket by turning and pushing the switch until the switch bottoms on the brake pedal.
  3. Inspect the stop lamps for proper operation
