DTC B2662: Park Lamp Input Is Inactive: Notes

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

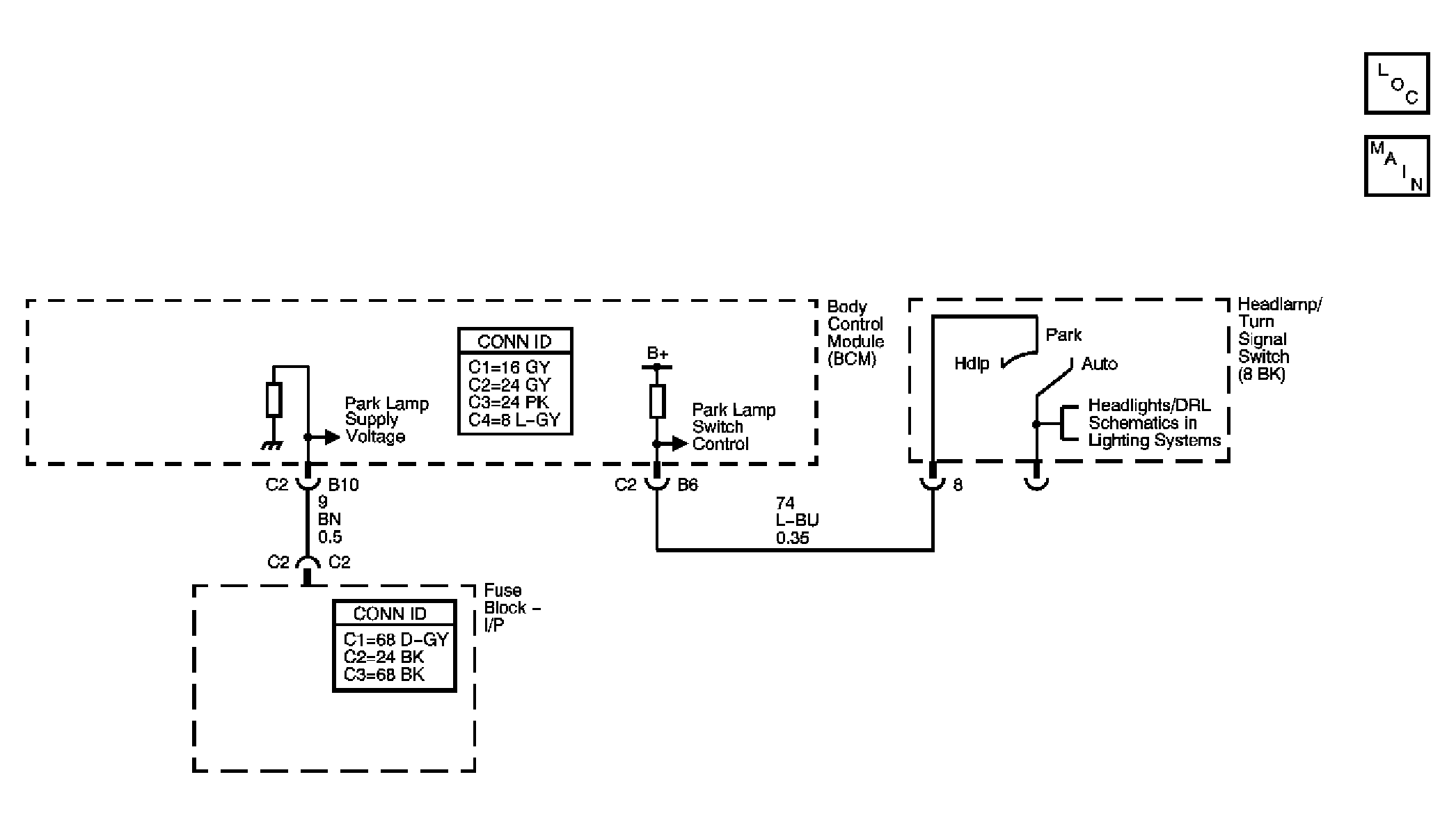

Fig 1: DTC B2662 Circuit
GM1351198Courtesy of GENERAL MOTORS CORP.
