HVAC Component Views
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

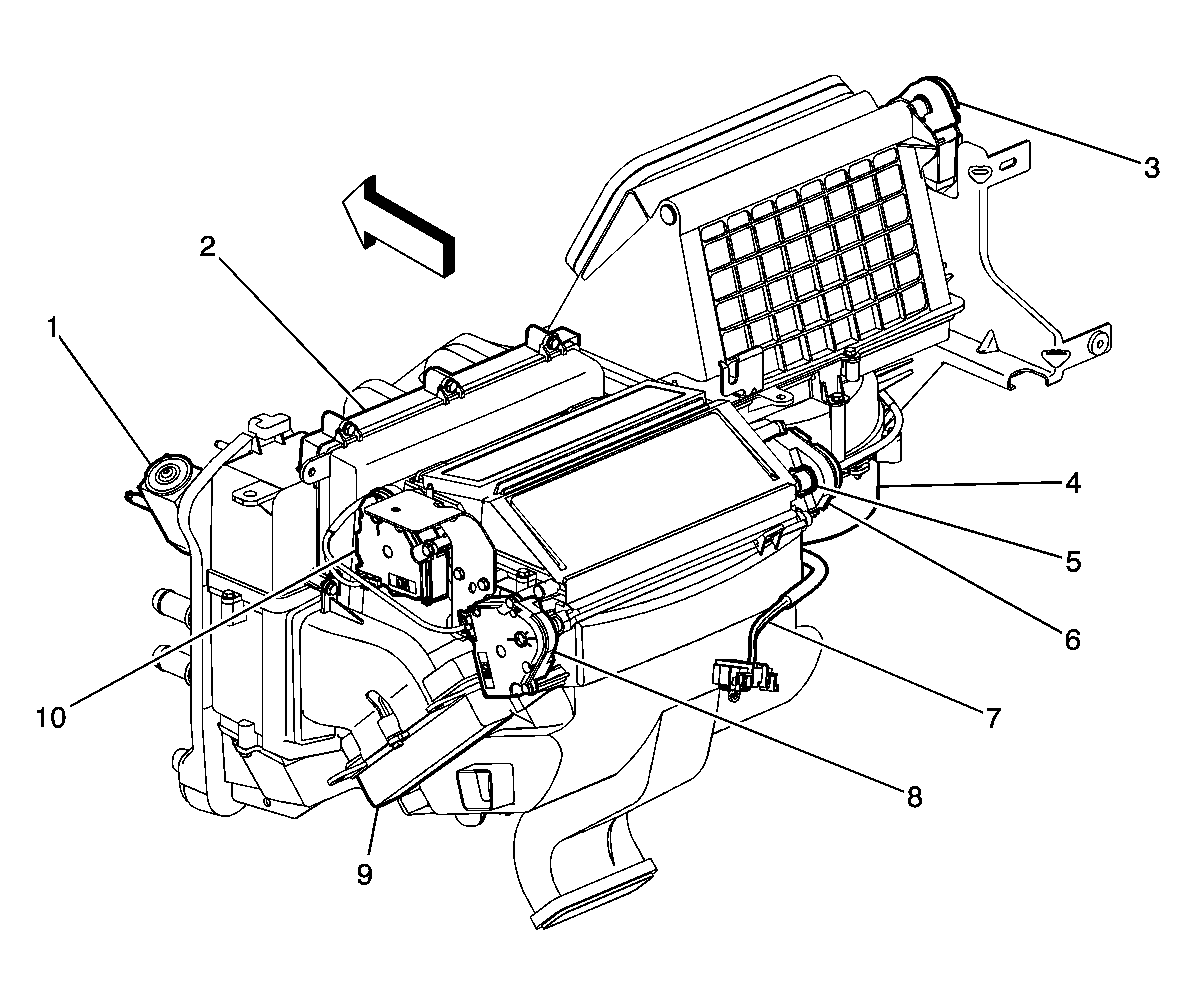

| Callout |
Component Name |
| 1 |
Thermal Expansion Valve |
| 2 |
Evaporator |
| 3 |
Recirculation Actuator |
| 4 |
HVAC Blower Motor |
| 5 |
Blower Motor Resistor - Hidden Behind Blower Motor |
| 6 |
Mode Actuator - Panel |
| 7 |
Temperature Cable |
| 8 |
Mode Actuator - Floor |
| 9 |
Heater Core |
| 10 |
Mode Actuator - Defrost |
