Power and Grounding Component Views

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

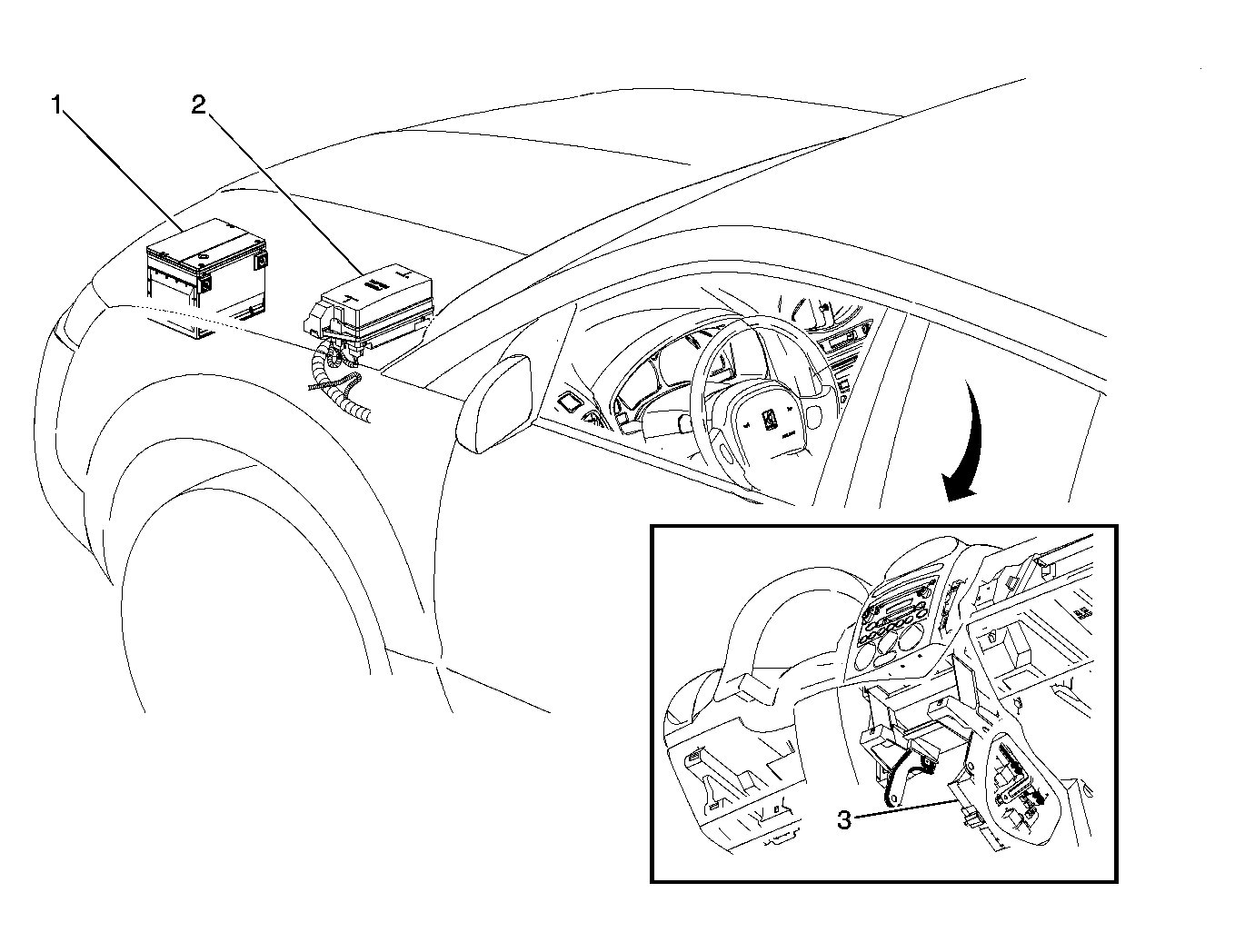

Fig 1: Battery and Fuse Block Locations
GM1184367Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Fuse Block-Underhood
3 Fuse Block-I/P

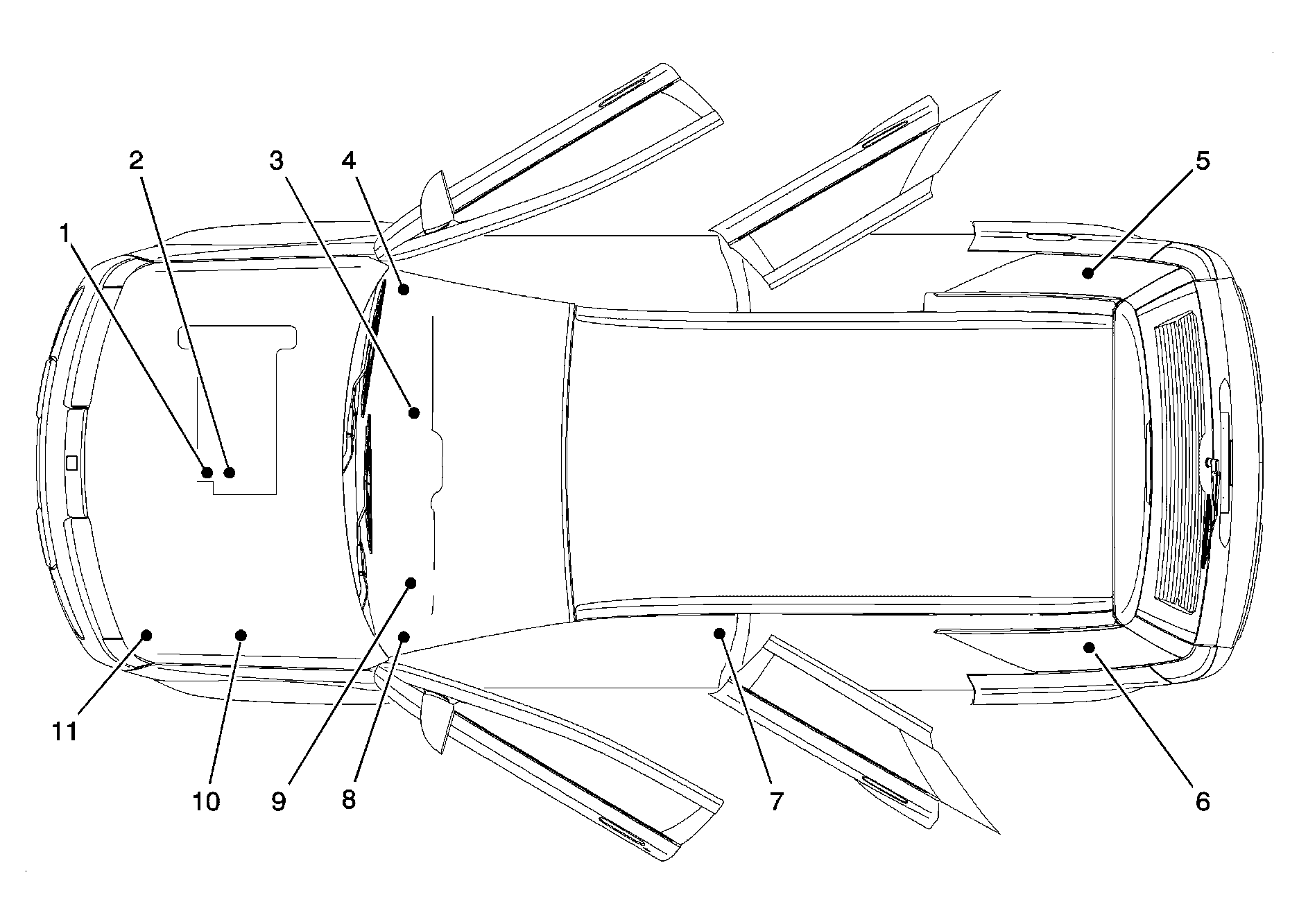

Fig 2: Ground and Ground Splice Pack Locations
GM1183422Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G105
2 G107
3 G203 (Secured on I/P Fuse Block
4 G201, SP201
5 G403, SP403
6 G401, Sp401
7 G301, SP301
8 SP203
9 G207 (2002 Only)
10 G103
11 G101, SP101
