Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 4 screws that retain the rear console to the roof panel.
  2. Lower the rear console from the headliner.
  3. Remove the rear console from the vehicle.

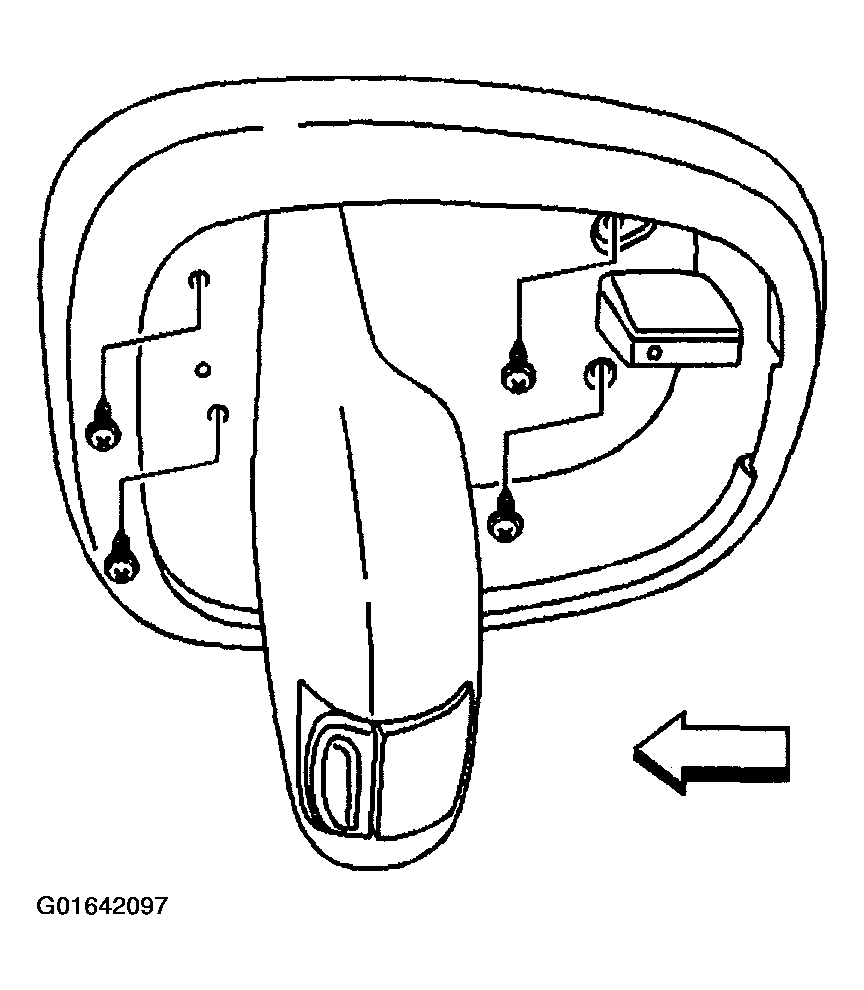

  4. Fig 1: Rear Overhead Console
    G01642097Courtesy of GENERAL MOTORS CORP.
