Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the baffle to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the baffle to the body.

    Tighten

    Tighten the air intake baffle bolts to 2 N.m (18 lb in).

  3. Install the push-pin retainers.

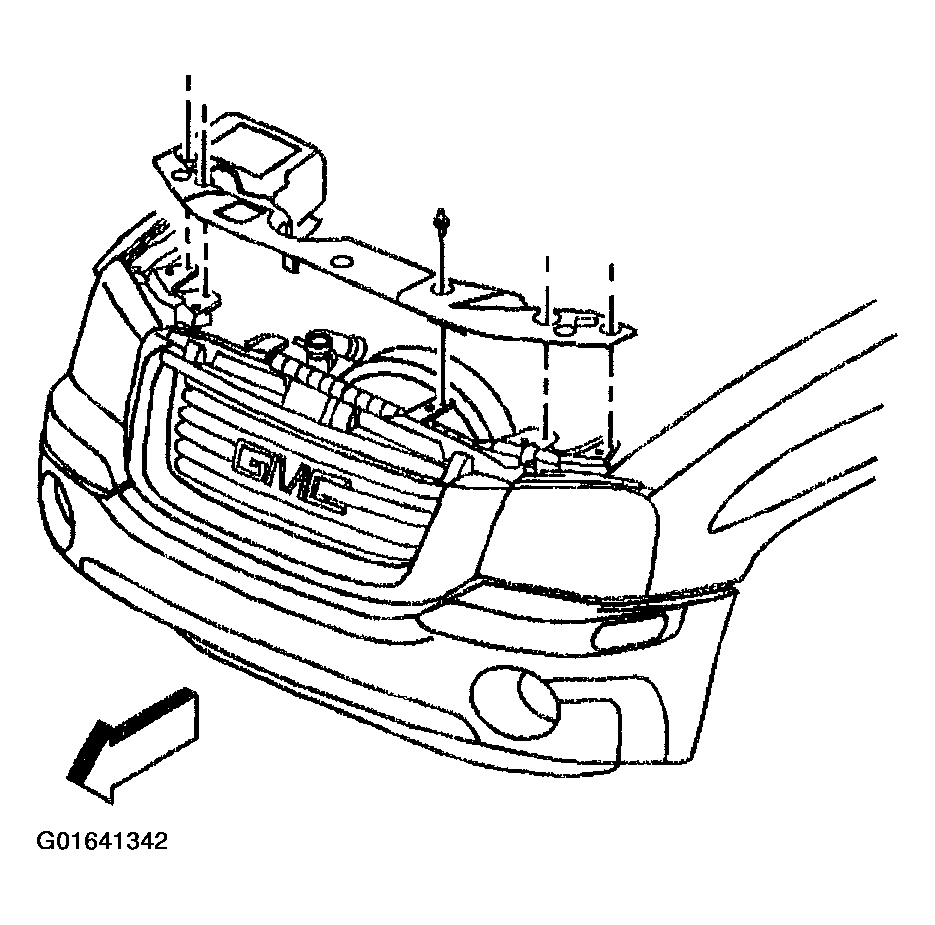

    Fig 1: Installing Bolts That Retain Baffle To Body
    G01641342Courtesy of GENERAL MOTORS CORP.
