Keyless Entry System Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

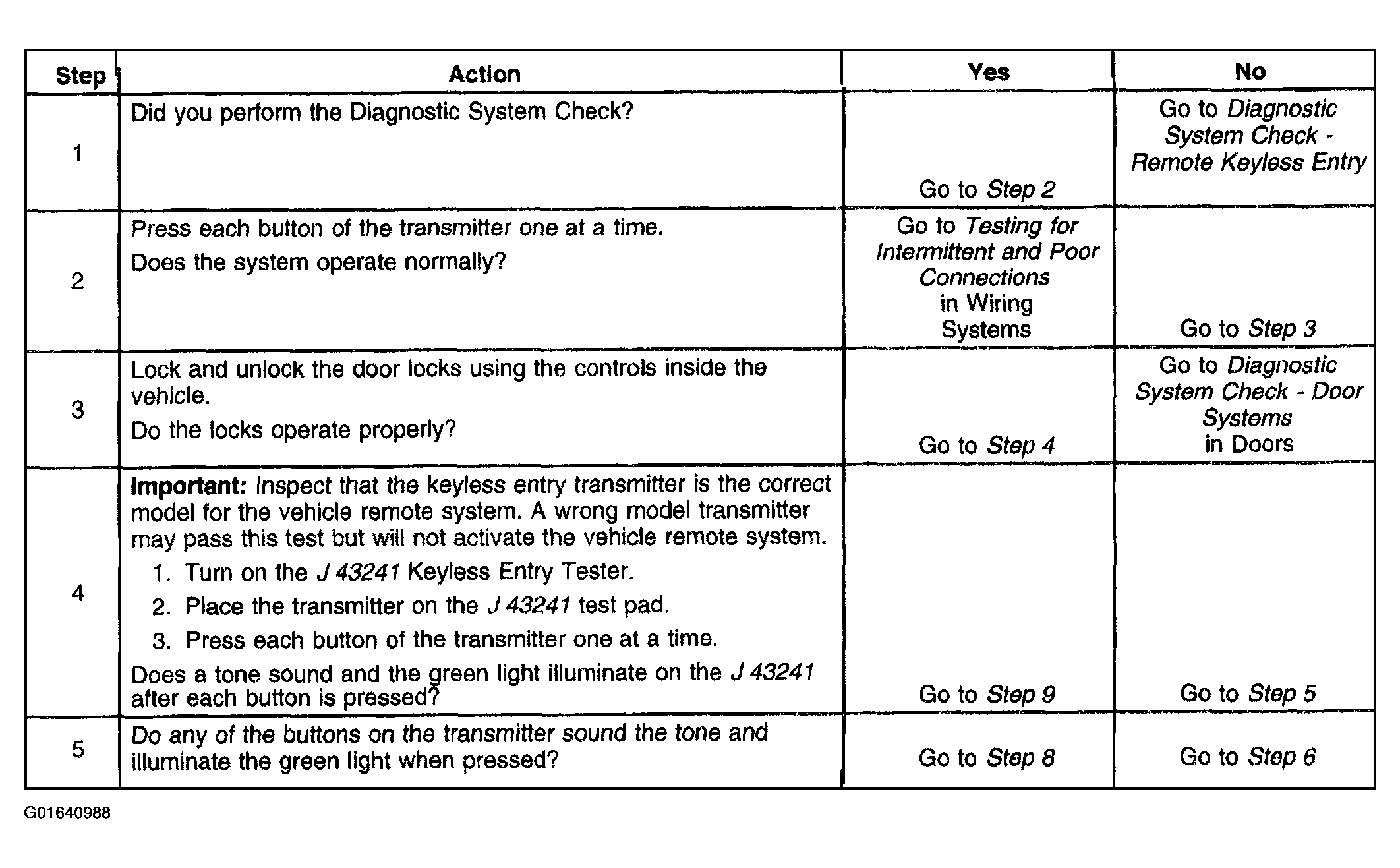

Fig 1: Keyless Entry System Inoperative - Diagnostic Chart (1 Of 2)
G01640988Courtesy of GENERAL MOTORS CORP.

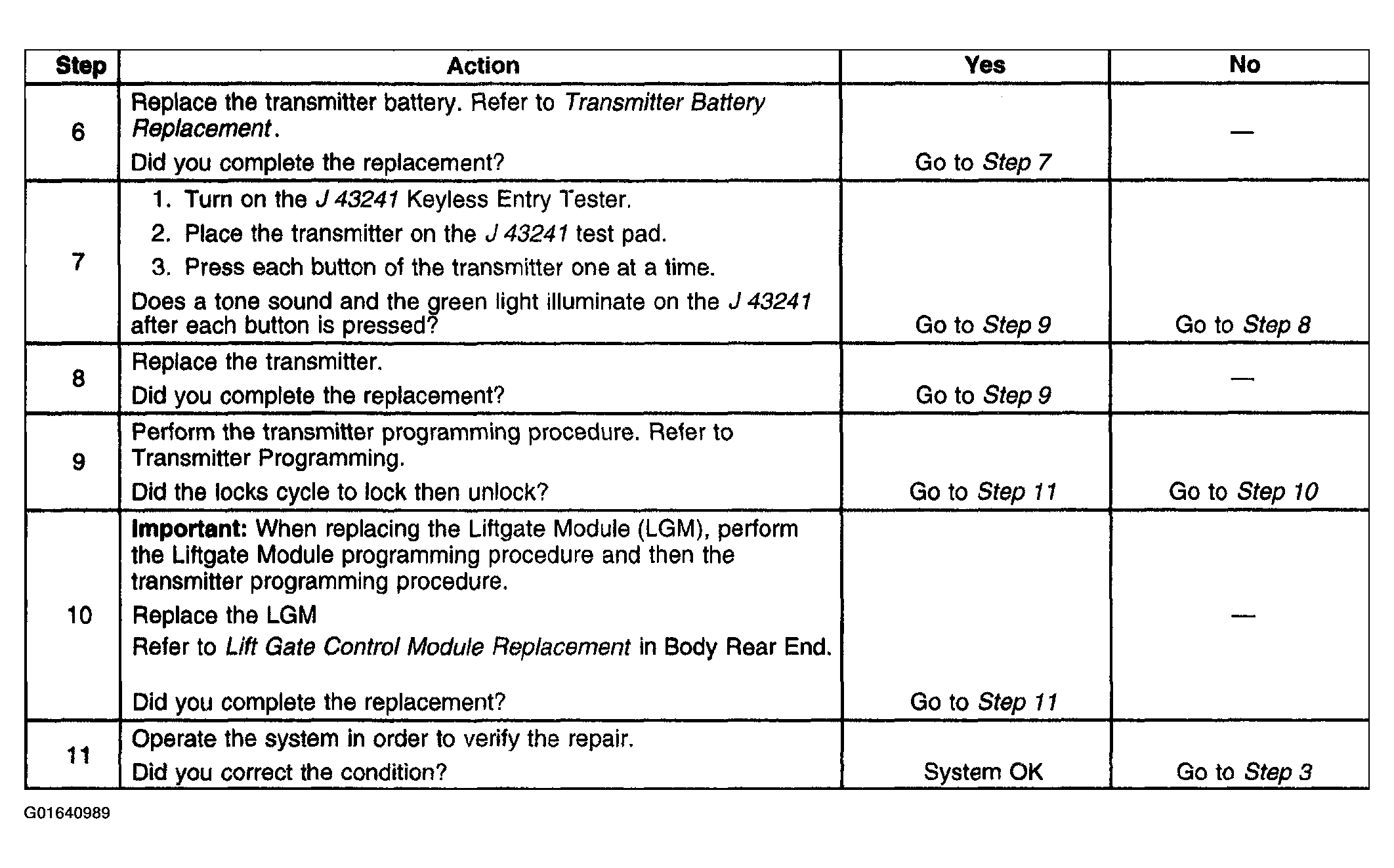

Fig 2: Keyless Entry System Inoperative - Diagnostic Chart (2 Of 2)
G01640989Courtesy of GENERAL MOTORS CORP.
