Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the antenna to the bracket.
  2. While maintaining a parallel angle to the windshield, install the antenna to the bracket by sliding the antenna towards the headlinliner. Ensure the antenna is fully seated to the bracket.
  3. Install the electrical connector to the antenna.

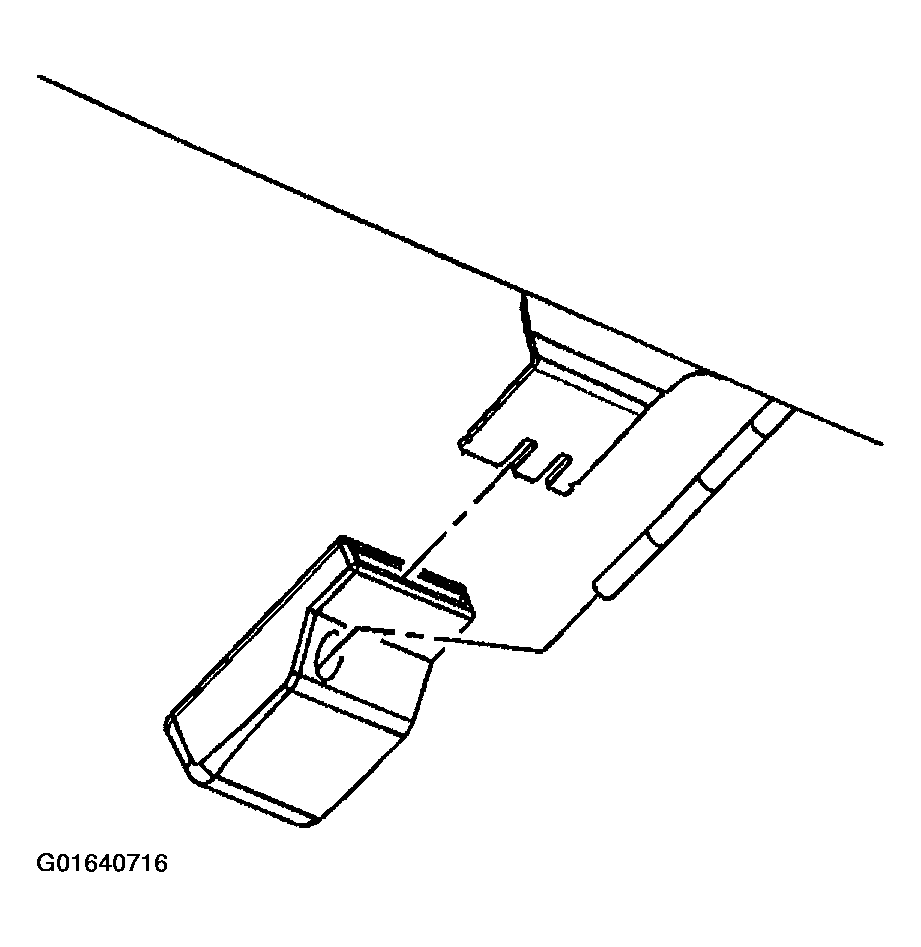

    Fig 1: Positioning Antenna To Bracket
    G01640716Courtesy of GENERAL MOTORS CORP.
