HVAC Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Cockpit Component View
GM698492Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror-Driver
2 Fog Lamp/Rear Compartment Lid Release Switch (Domestic), Fog Lamp Switch (Export)
3 Dimmer Switch
4 Dimmer/Head Up Display (HUD) Switch
5 Instrument Panel Cluster (IPC)
6 Vanity Mirror Lamp-Left
7 Driver Information Center (DIC) Switch-Right
8 Hazard Switch
9 Radio
10 HVAC Control Module
11 Vanity Mirror Lamp-Right
12 Door Switch-Passenger
13 Outside Rearview Mirror-Passenger
14 Footwell Courtesy Lamp-Right
15 Fuel Door Lock Release Switch (Domestic), Rear Compartment Lid/Fuel Door Lock Release Switch (Export)
16 Traction/Suspension Control Switch
17 Auxiliary Power Outlet Connector
18 Cigar Lighter
19 Horn Switch
20 Seat Control Module (SCM)-Driver (W/Memory Seats), Seat Relay Center-Driver (W/O Memory Seats)
21 Seat Adjuster Switch-Driver
22 Footwell Courtesy Lamp-Left
23 Door Switch-Driver
Fig 2: Instrument Panel Component View
GM698554Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunload Sensor
2 HVAC Module Assembly
3 Air Temperature Actuator (C60)
4 Vacuum Control Assembly (CJ2)
5 Blower Motor
6 Blower Motor Control Processor
7 Fuse Block-IP
8 Body Control Module (BCM)
9 Ignition Switch
10 Air Temperature Sensor - Inside
11 Telescoping Actuator Switch
12 Data Link Connector (DLC)
13 Multifunction Turn Signal Lever
14 Ambient Light Sensor
15 Windshield Wiper/Washer Switch
Fig 3: Front Of Engine Compartment Component View
GM698487Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Refrigerant Pressure Sensor
2 Secondary Air Injection (AIR) Pump
3 SP100
4 G102
5 Headlamp Door Assembly-Right Connector

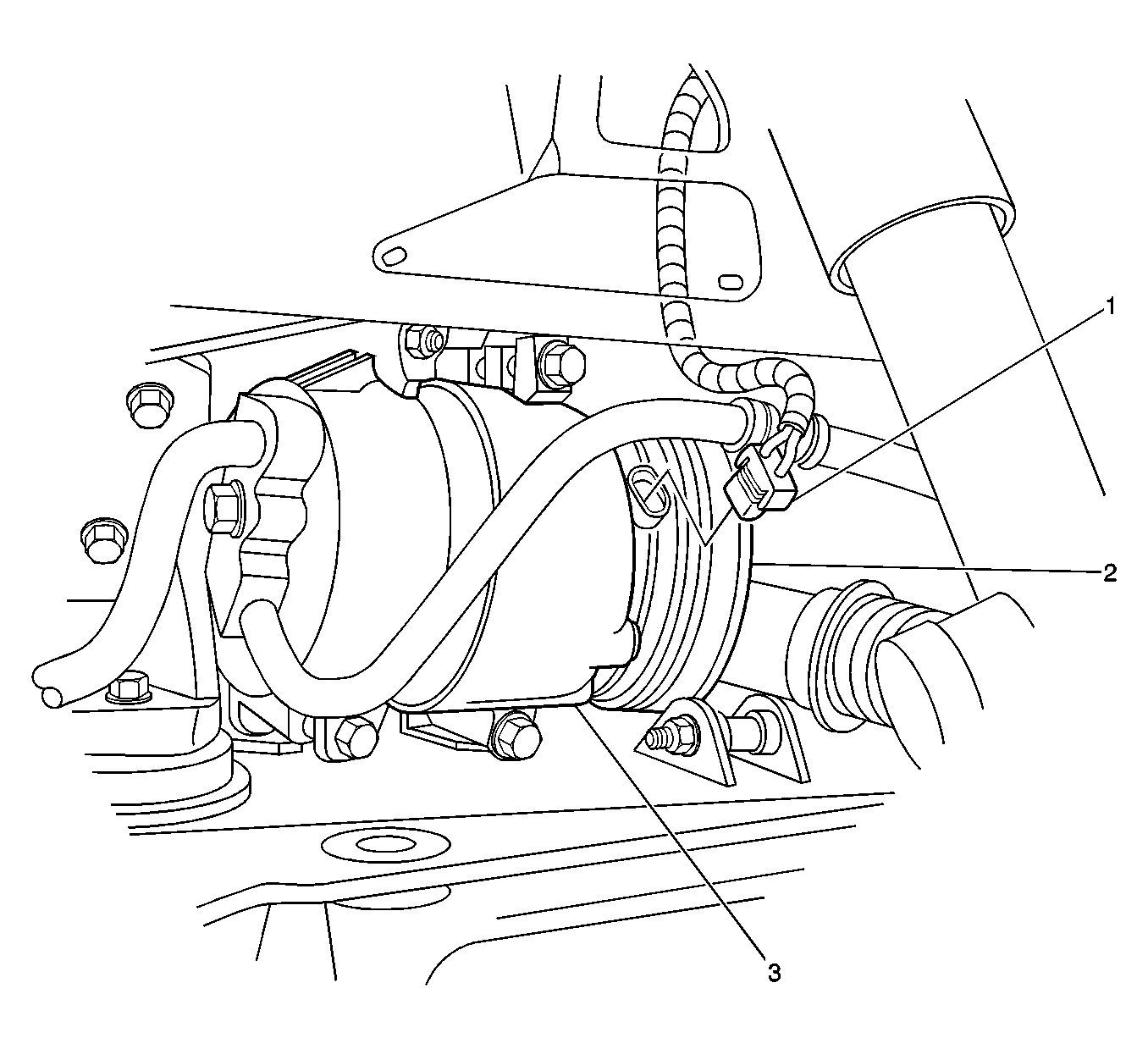

Fig 4: A/C Compressor Component View
GM698560Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor Clutch Diode
2 A/C Compressor Clutch
3 A/C Compressor

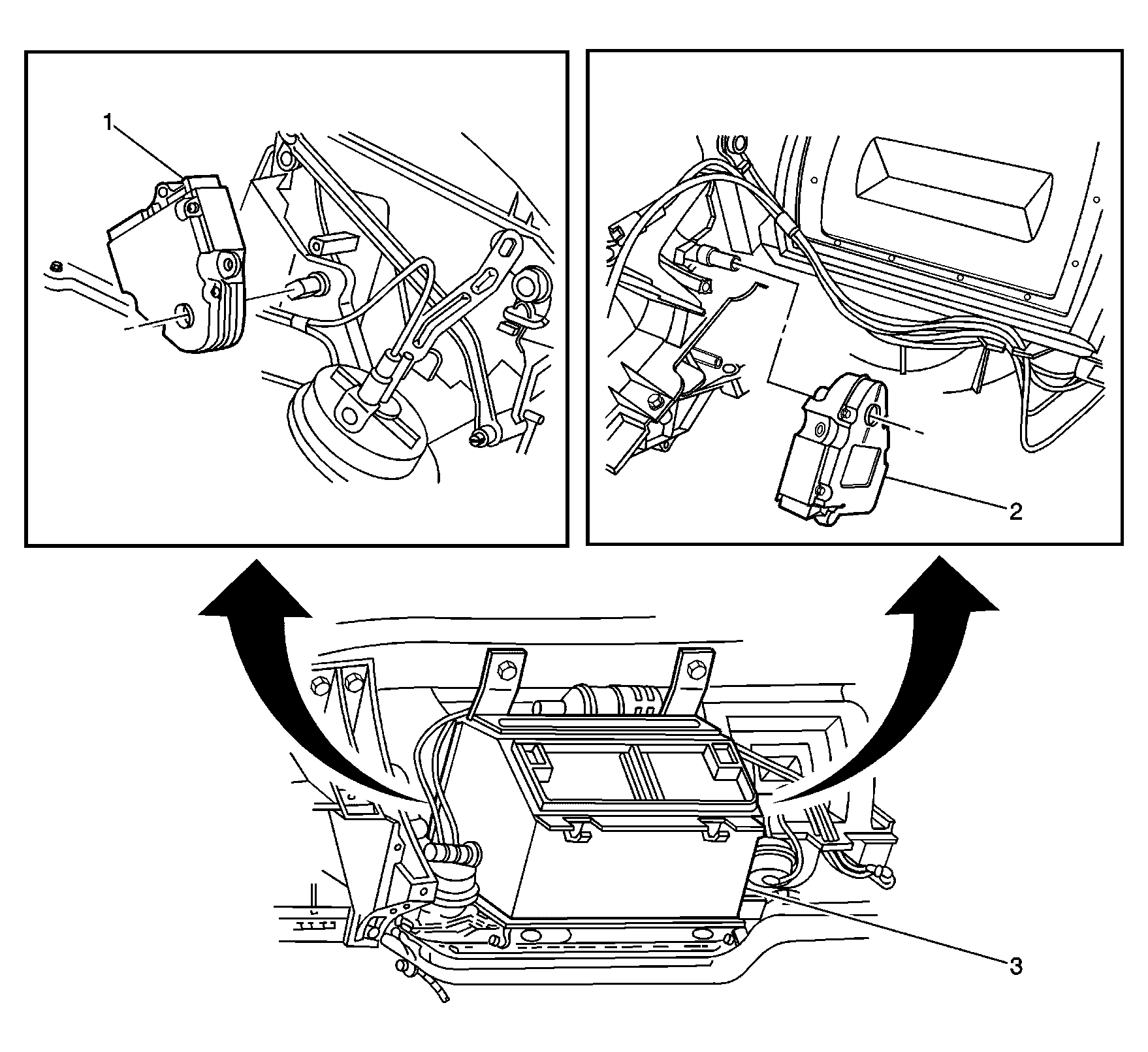

Fig 5: Behind The Center Of The I/P Component View
GM902703Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Temperature Actuator - Left
2 Air Temperature Actuator - Right
3 HVAC Module Assembly

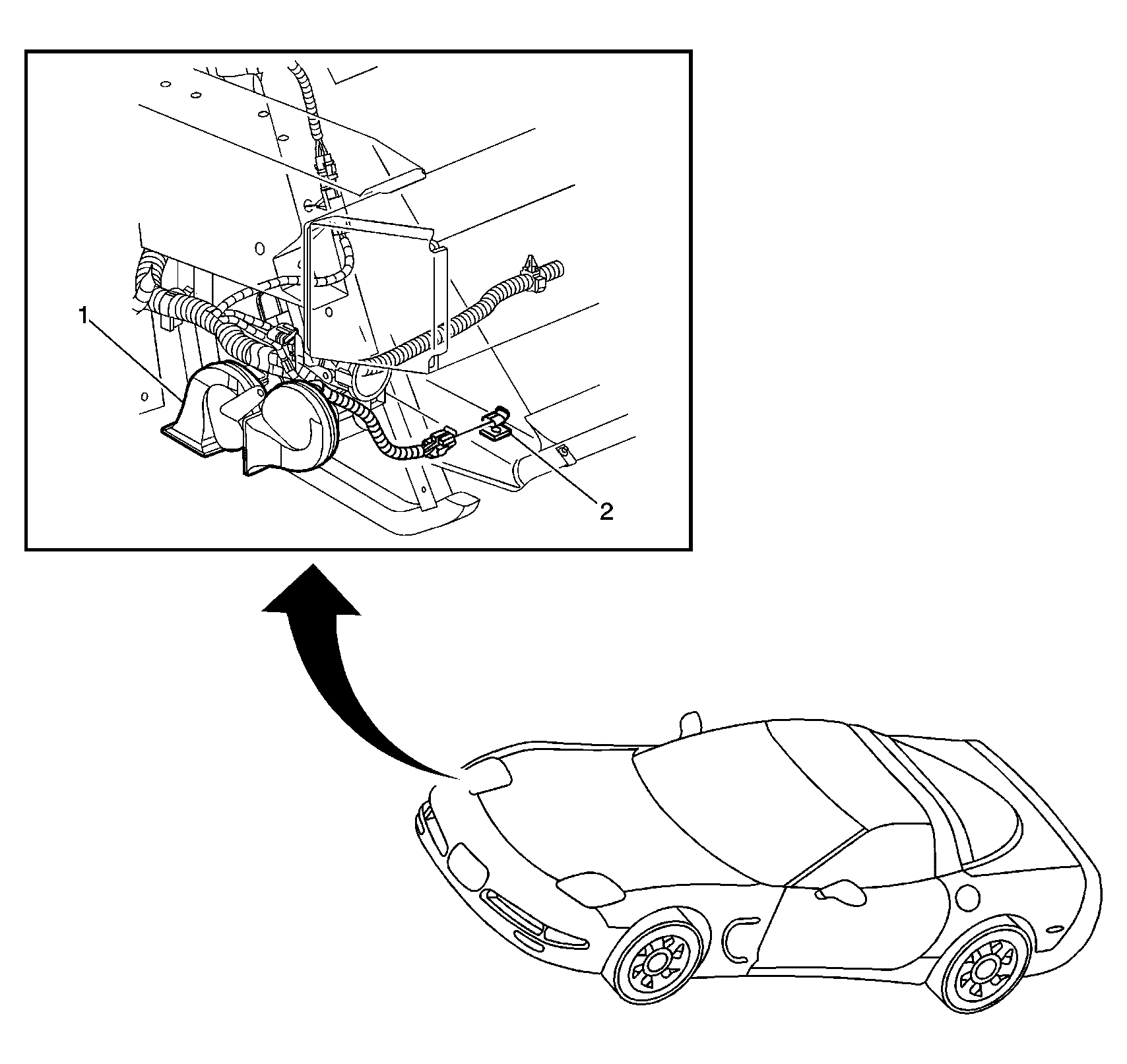

Fig 6: Lower RF Of The Vehicle Component View
GM881478Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn Assembly
2 Ambient Air Temperature Sensor
