Transfer Case Control Schematics

WARNING: This page is about a different car, the 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

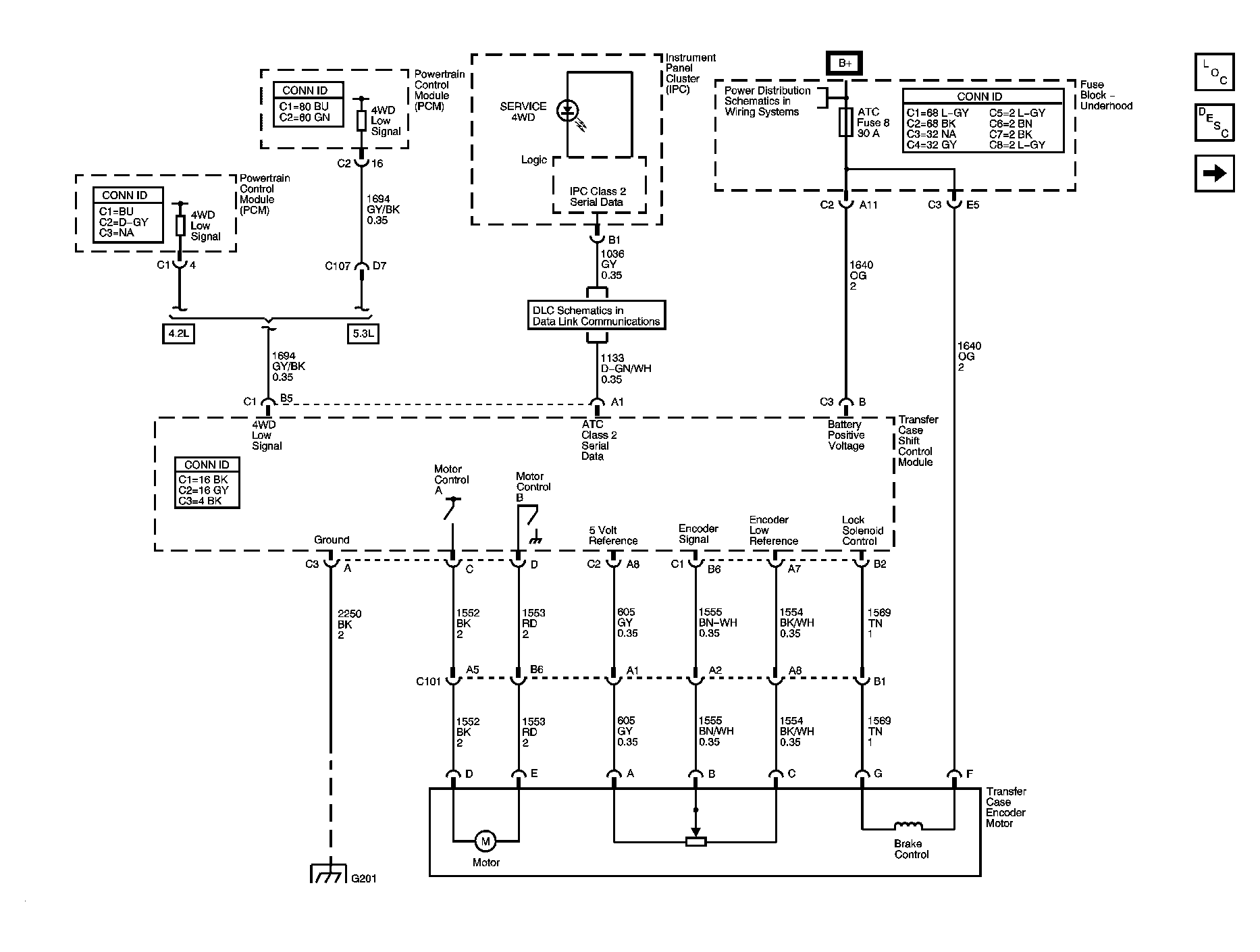

Fig 1: Power, Ground, Serial Data, and Transfer Case Encoder Motor
GM1265034Courtesy of GENERAL MOTORS CORP.

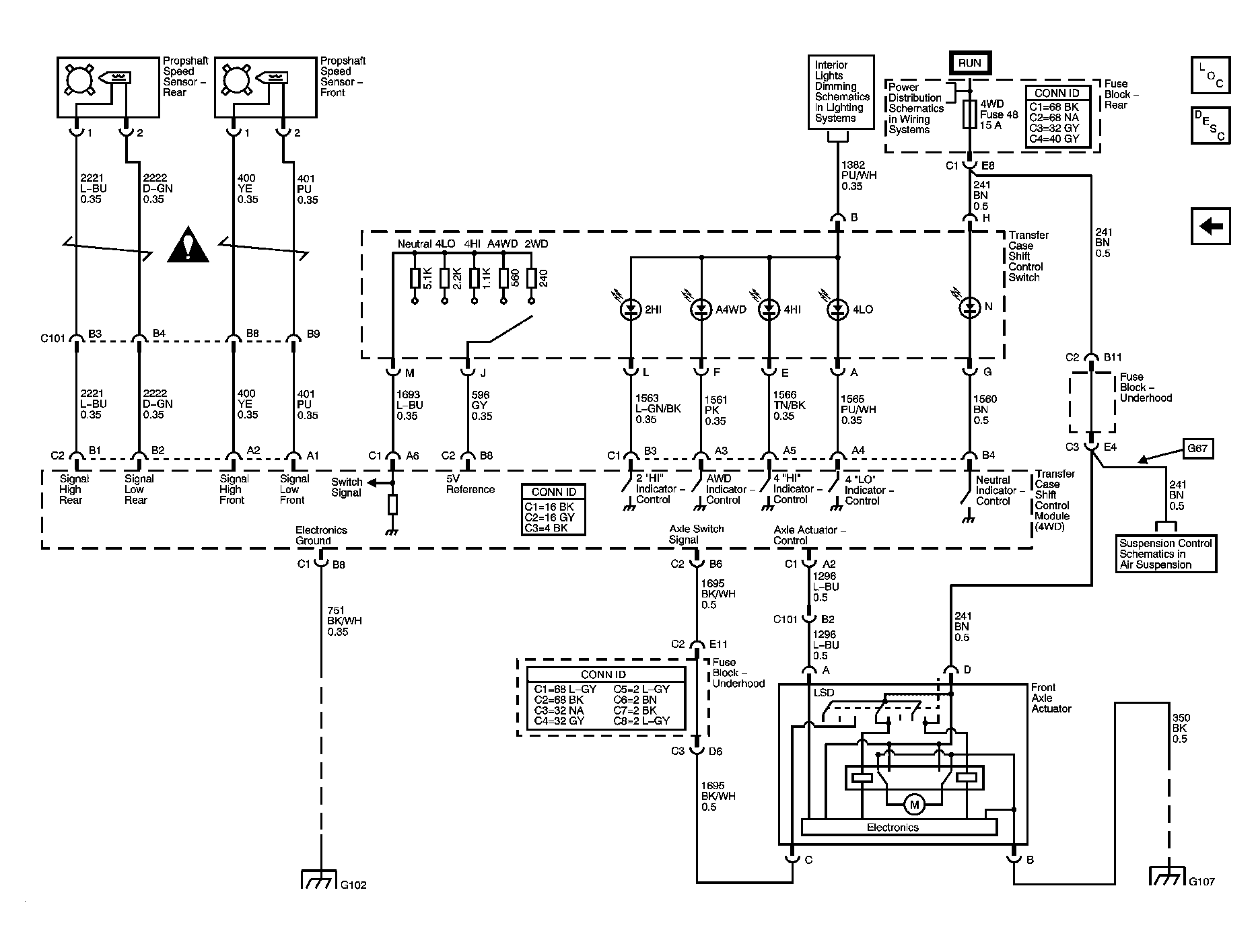

Fig 2: Speed Signal, Front Axle Actuator Control, and Indicators
GM1265036Courtesy of GENERAL MOTORS CORP.
