Transfer Case Control Schematics

WARNING: This page is about a different car, the 2004 Oldsmobile Bravada and 2004 Buick Rainier. However, it is still accessible from the selected car via links, so may be relevant.

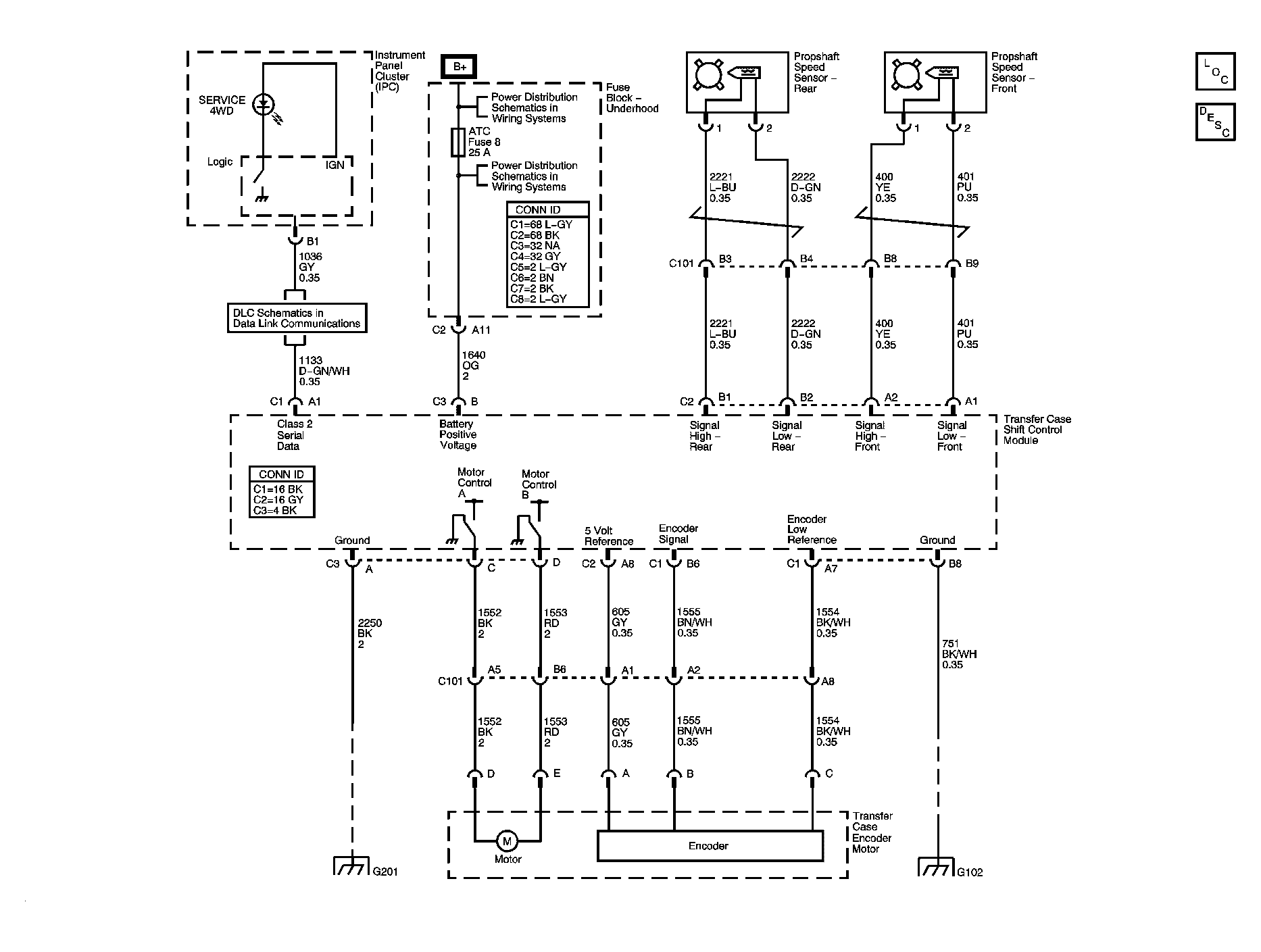

Fig 1: Transfer Case Wiring Diagram
GM1265032Courtesy of GENERAL MOTORS CORP.
