Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

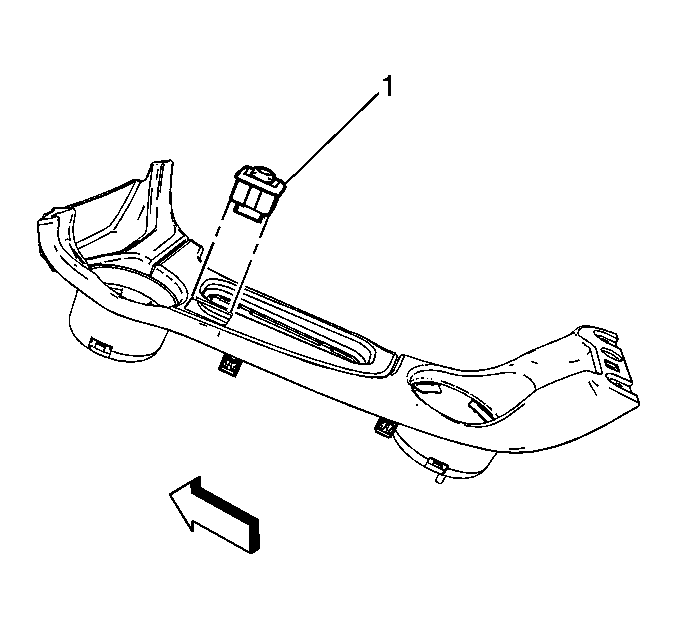

Fig 1: Removing/Installing Traction Control Switch (Oldsmobile, Buick)

Courtesy of GENERAL MOTORS CORP.

Install the switch (1) to the trim plate.

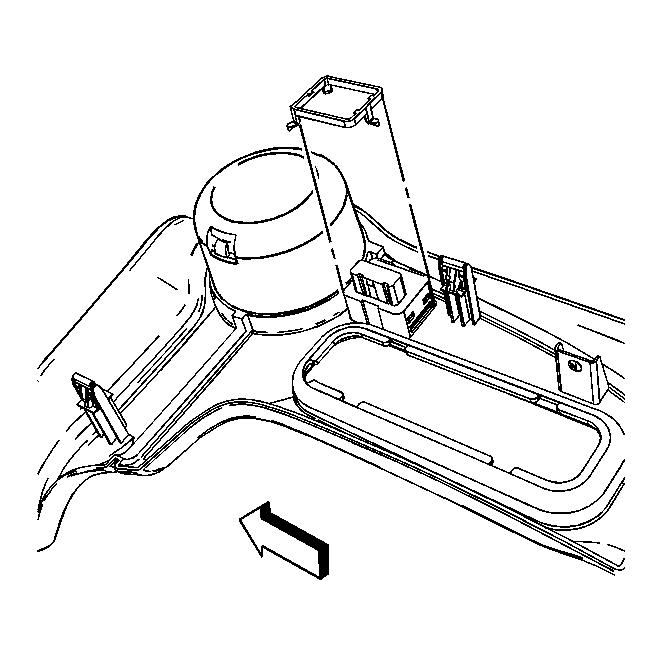

Fig 2: Removing/Installing Traction Control Switch Retaining Ring (Oldsmobile, Buick)

Courtesy of GENERAL MOTORS CORP.

Install the retaining ring to the switch, ensuring the ring tabs are fully seated.

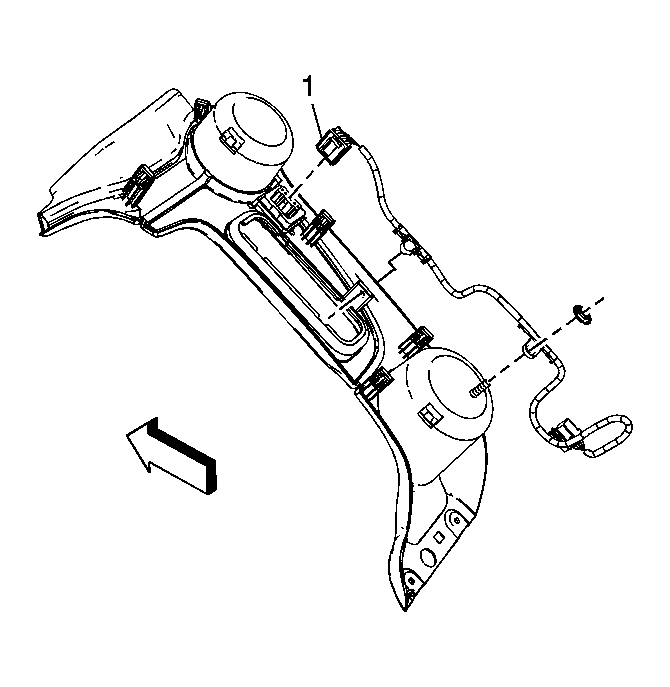

Fig 3: Traction Control Switch Electrical Connector (Oldsmobile, Buick)

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (1) to the switch.
Install the shift lever bezel. Refer to Console Shift Lever Bezel Replacement (Oldsmobile, Buick) in Instrument Panel, Gages, and Console.
