Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

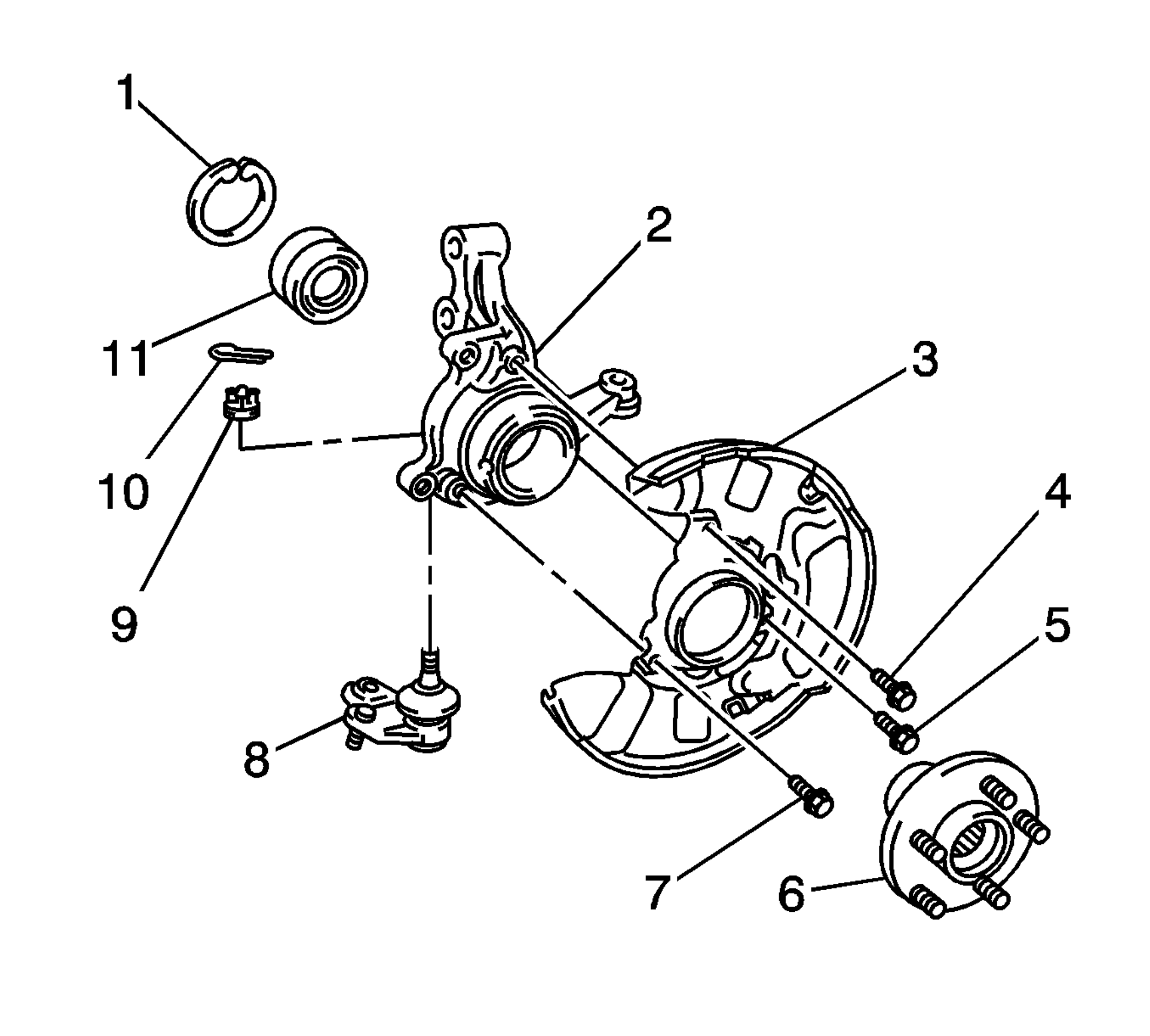

    Fig 1: Brake Splash Shield Components
    GM899520Courtesy of GENERAL MOTORS CORP.
  1. Install the brake shield (3) to the knuckle (2).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 3 bolts (4,5,7).

    Tighten:  Tighten the bolts to 8.3 N.m (73.46 lb in).

  3. Install the front wheel hub and bearing. Refer to Wheel Hub, Bearing, and Seal Replacement in Front Suspension.
