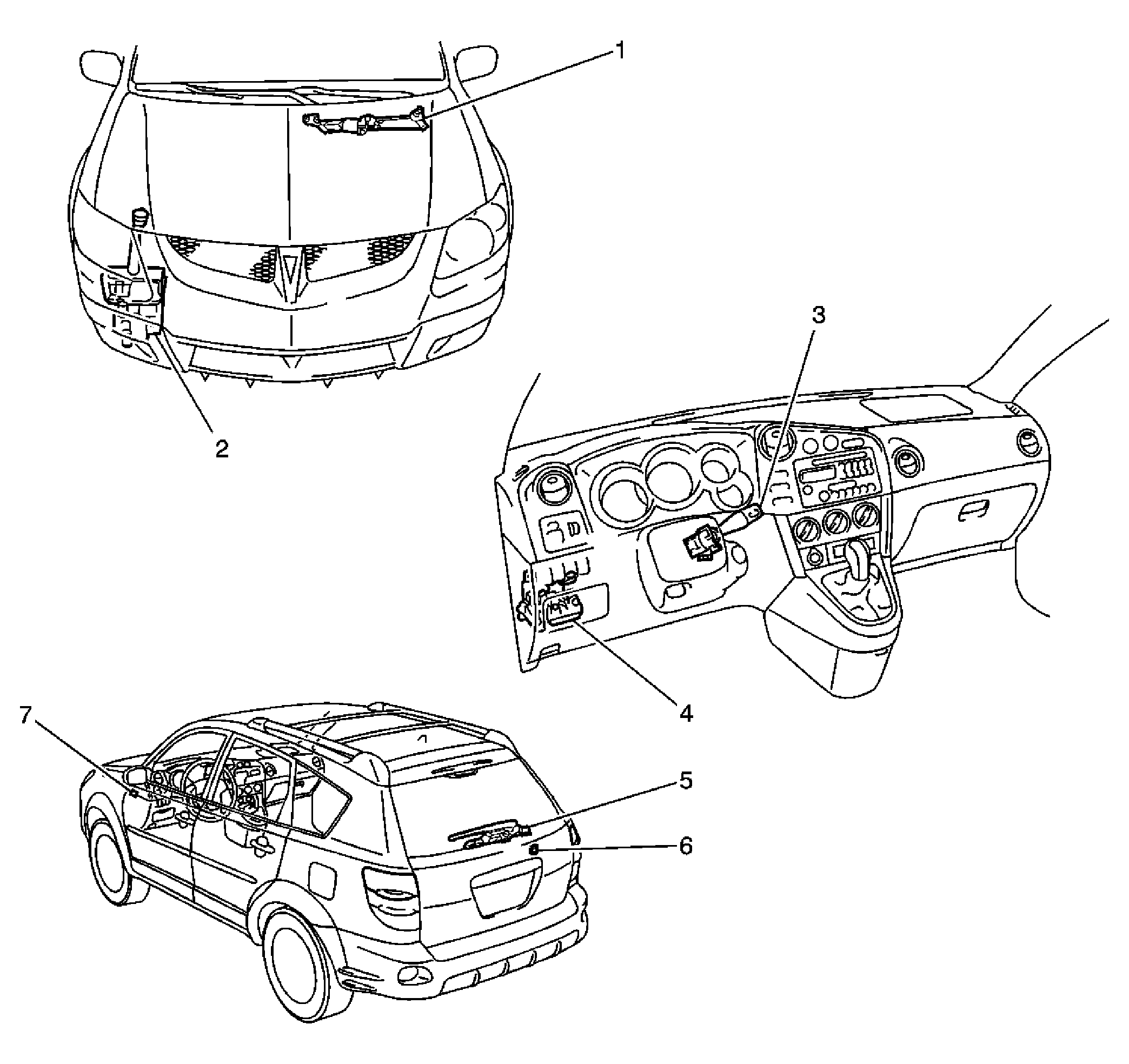

Wiper/Washer System Component Views
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Front Wiper Motor |
| 2 |
Washer Fluid Reservoir |
| 3 |
Wiper Switch |
| 4 |
Wiper Fuse |
| 5 |
Rear Wiper Motor |
| 6 |
Rear Wiper Relay 2 |
| 7 |
Rear Wiper Relay 1 |
