Keyless Entry Schematics

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

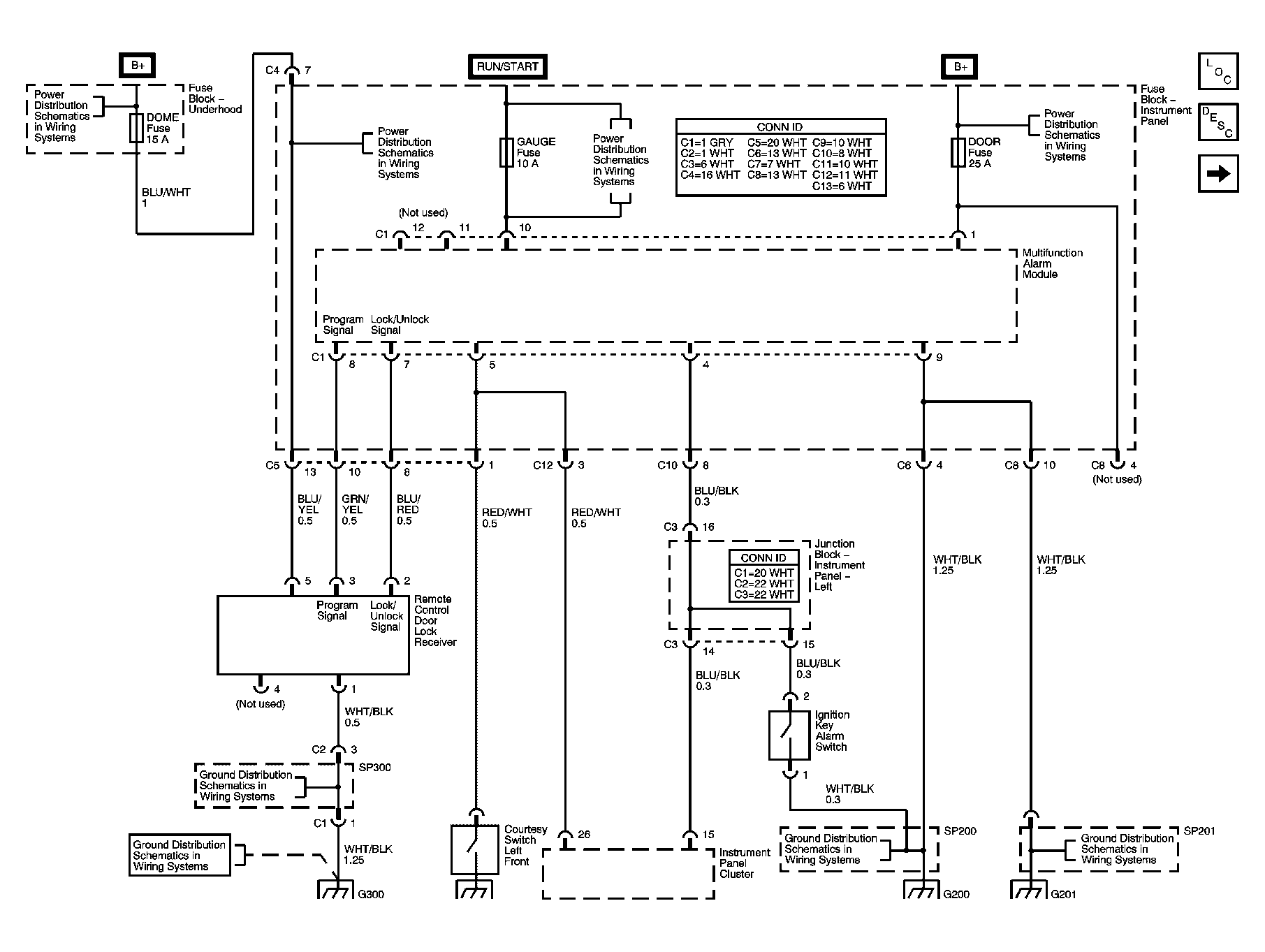

Fig 1: Remote Control Door Lock Receiver And Multifunction Alarm Module Schematic

Courtesy of GENERAL MOTORS CORP.

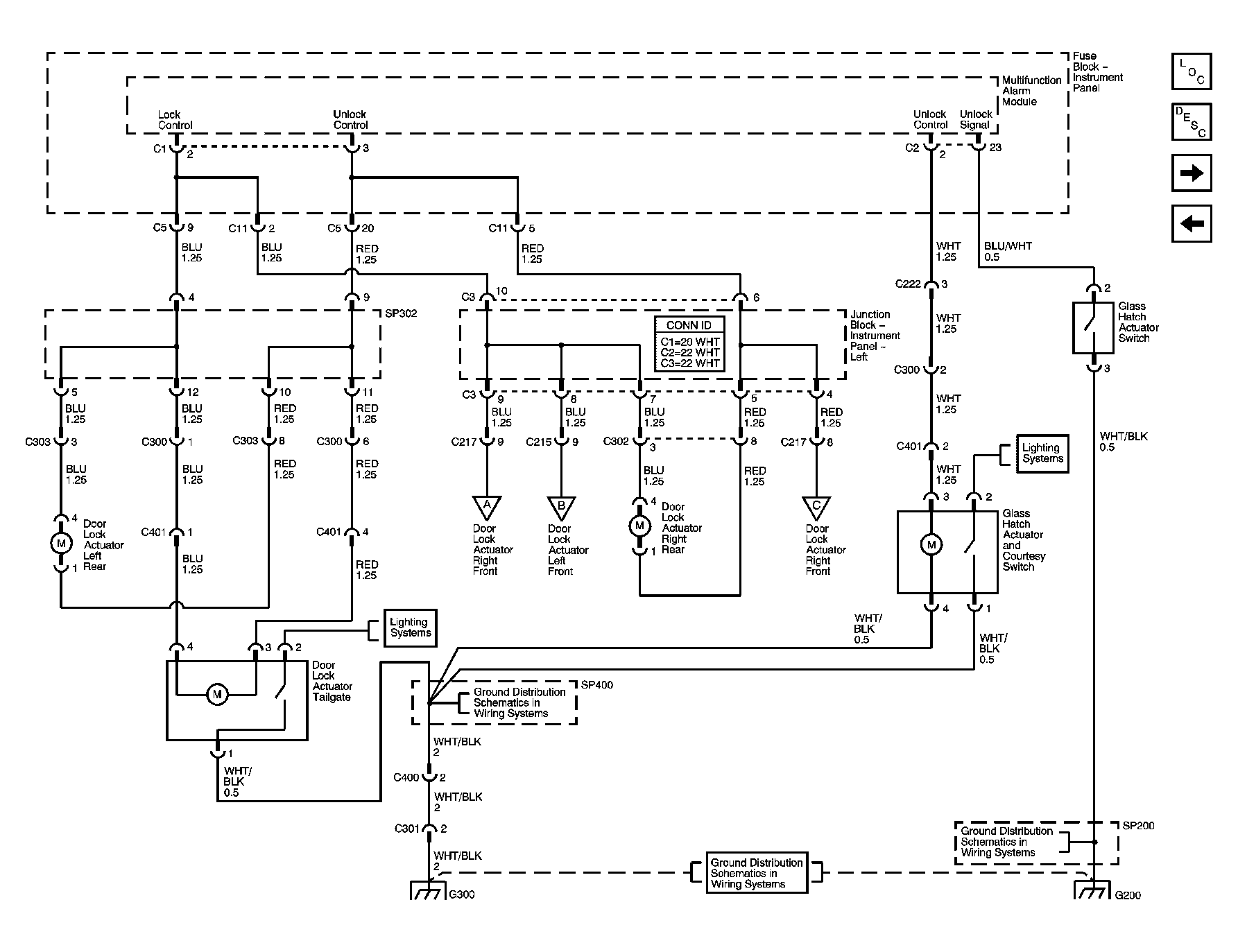

Fig 2: Multifunction Alarm Module, Rear Door Lock, Glass Hatch And Tailgate Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

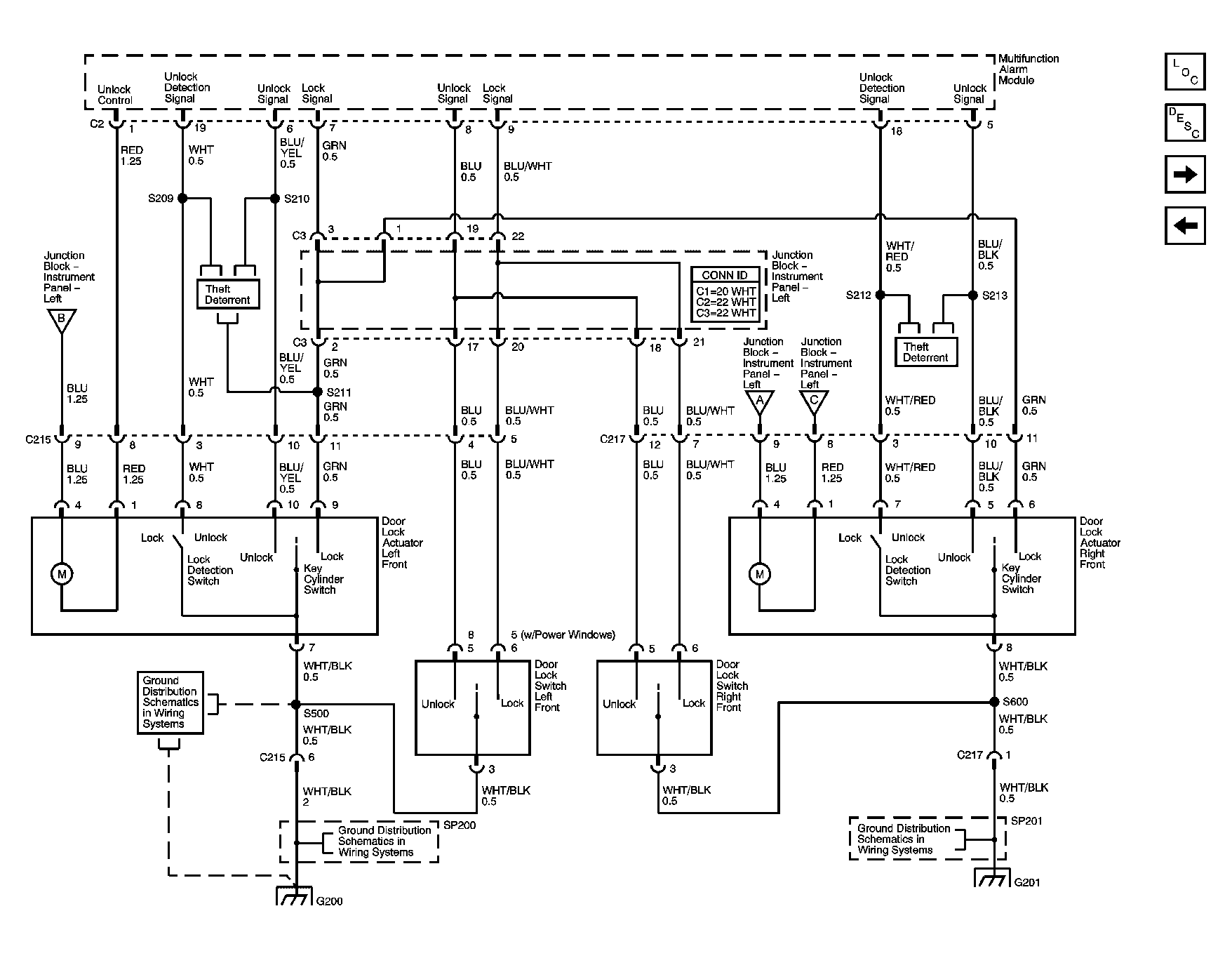

Fig 3: Door Lock Switches And Front Door Lock Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

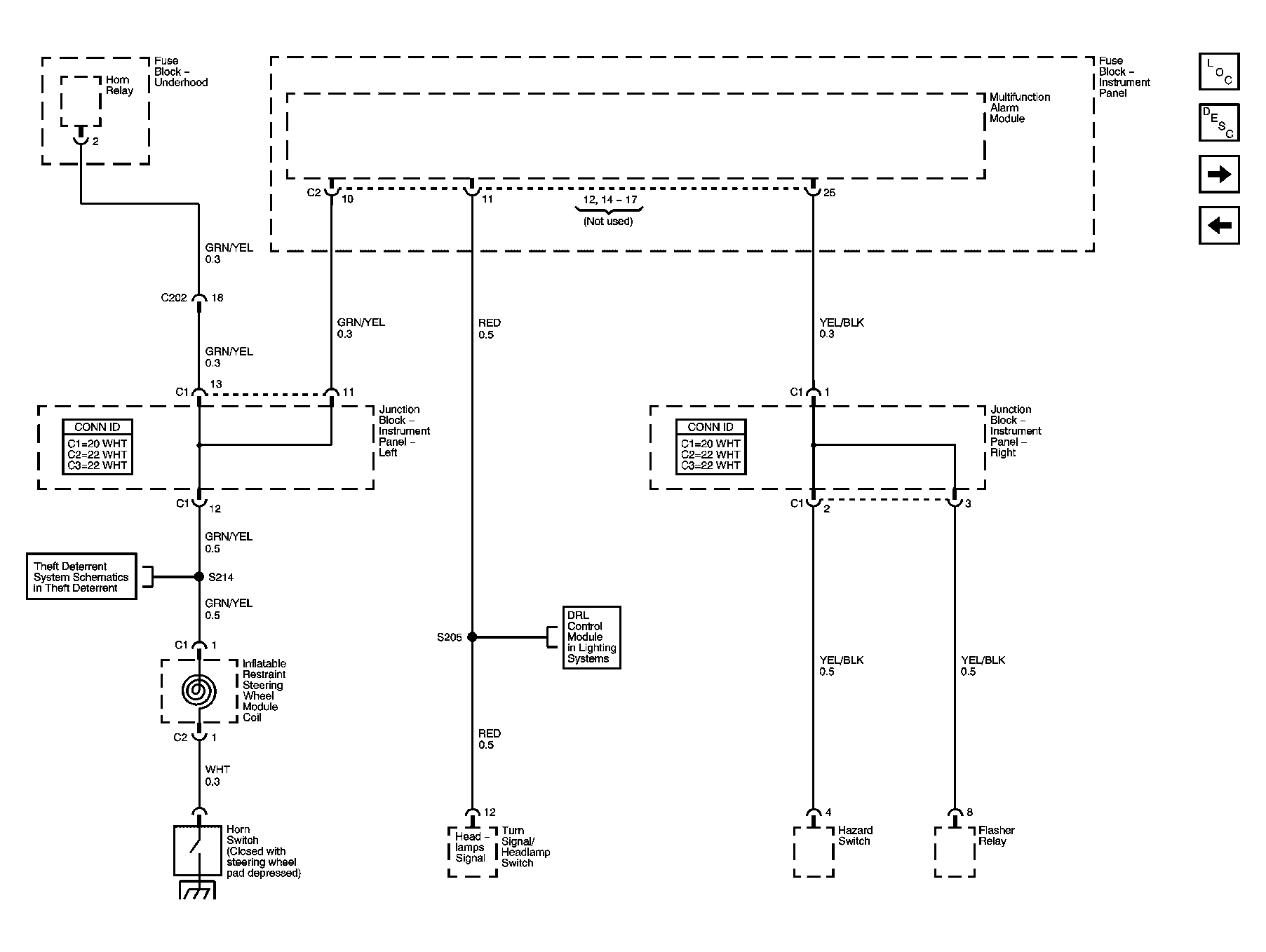

Fig 4: Multifunction Alarm Module, Horn, Hazard, Turn Signal/Headlamp Switches Schematic

Courtesy of GENERAL MOTORS CORP.

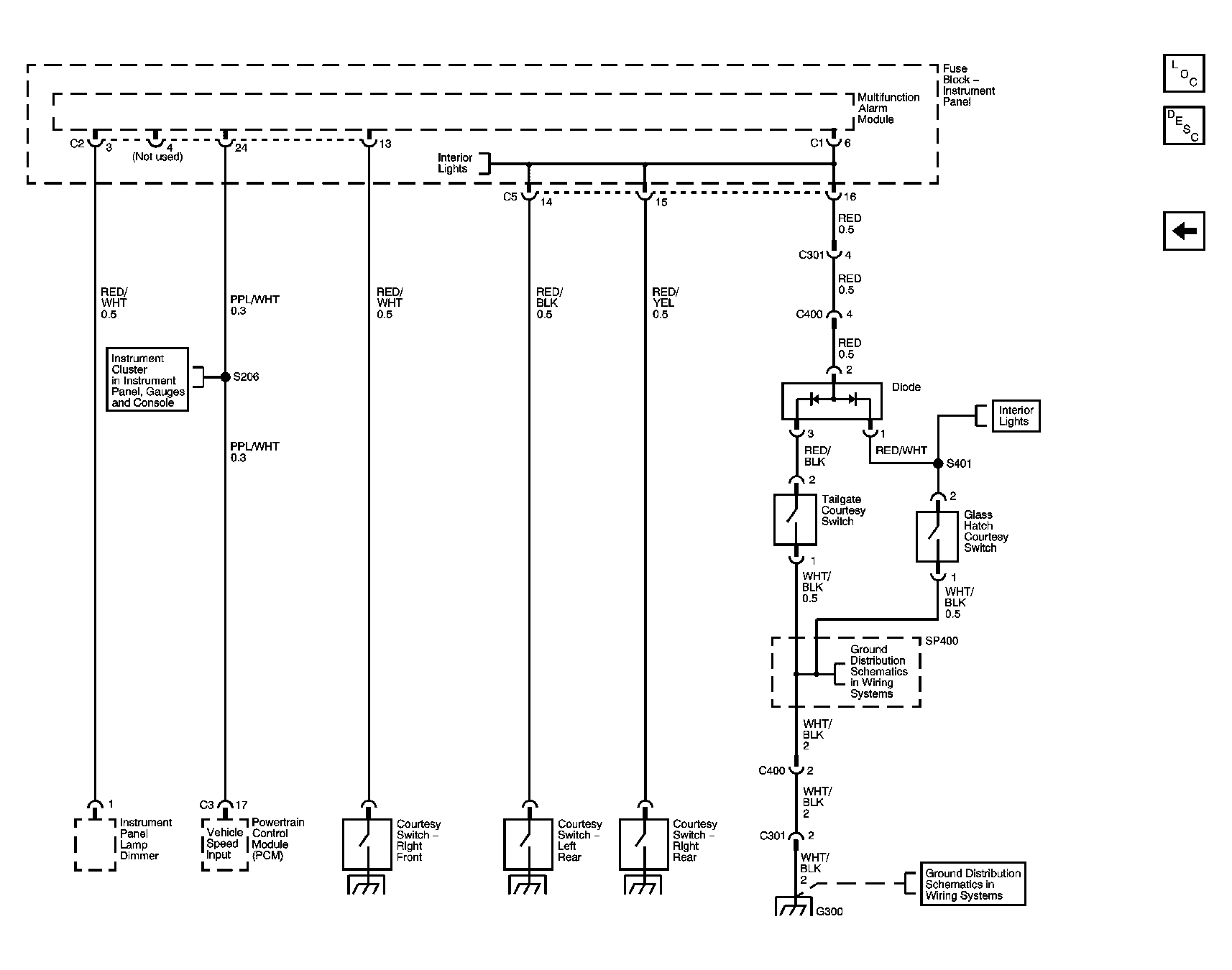

Fig 5: Multifunction Alarm Module, Courtesy Switches Schematic

Courtesy of GENERAL MOTORS CORP.
