Steering Controls Schematics

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

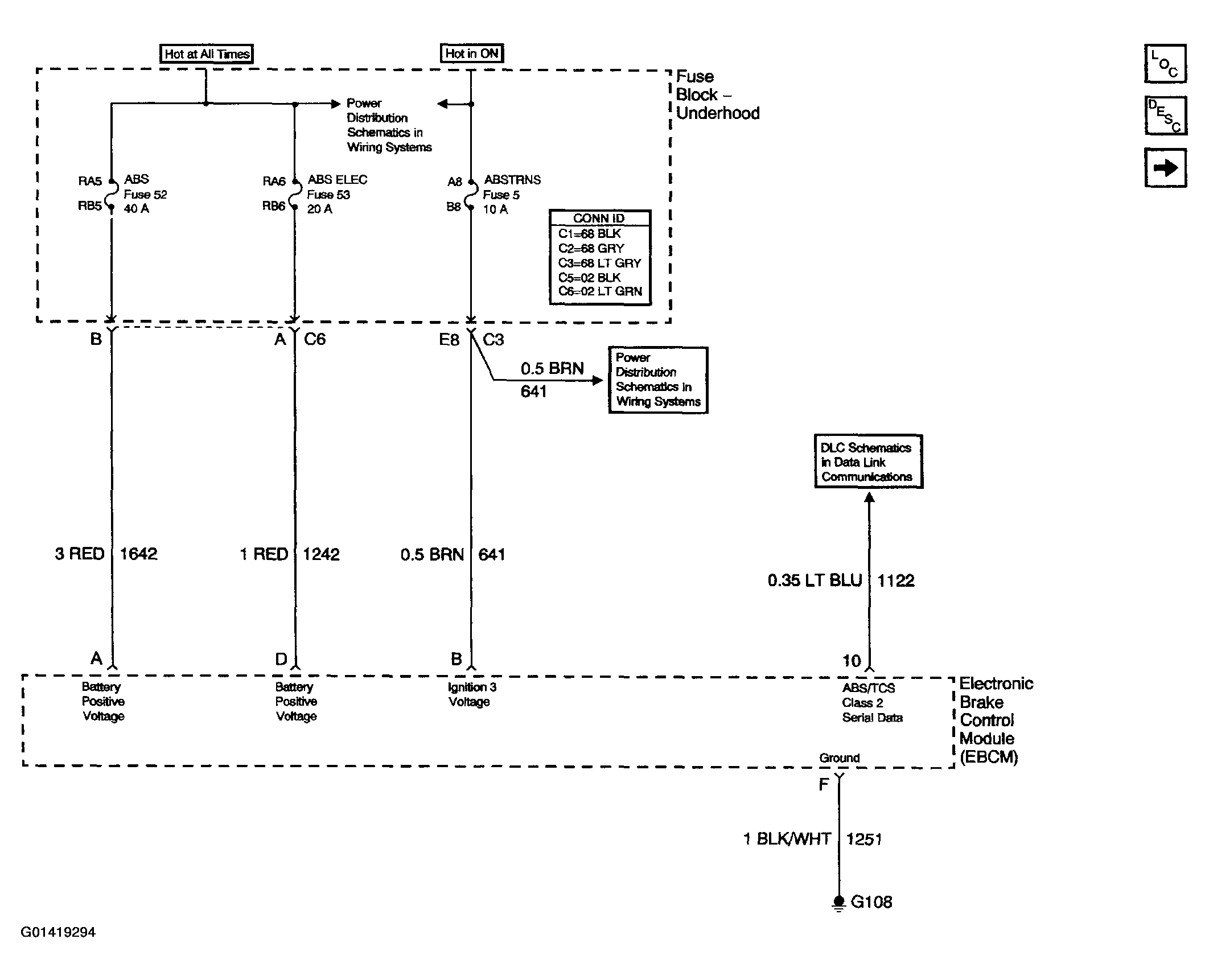

Fig 1: Steering Controls Schematics (Power, Ground, & DLC)
G01419294Courtesy of GENERAL MOTORS CORP.

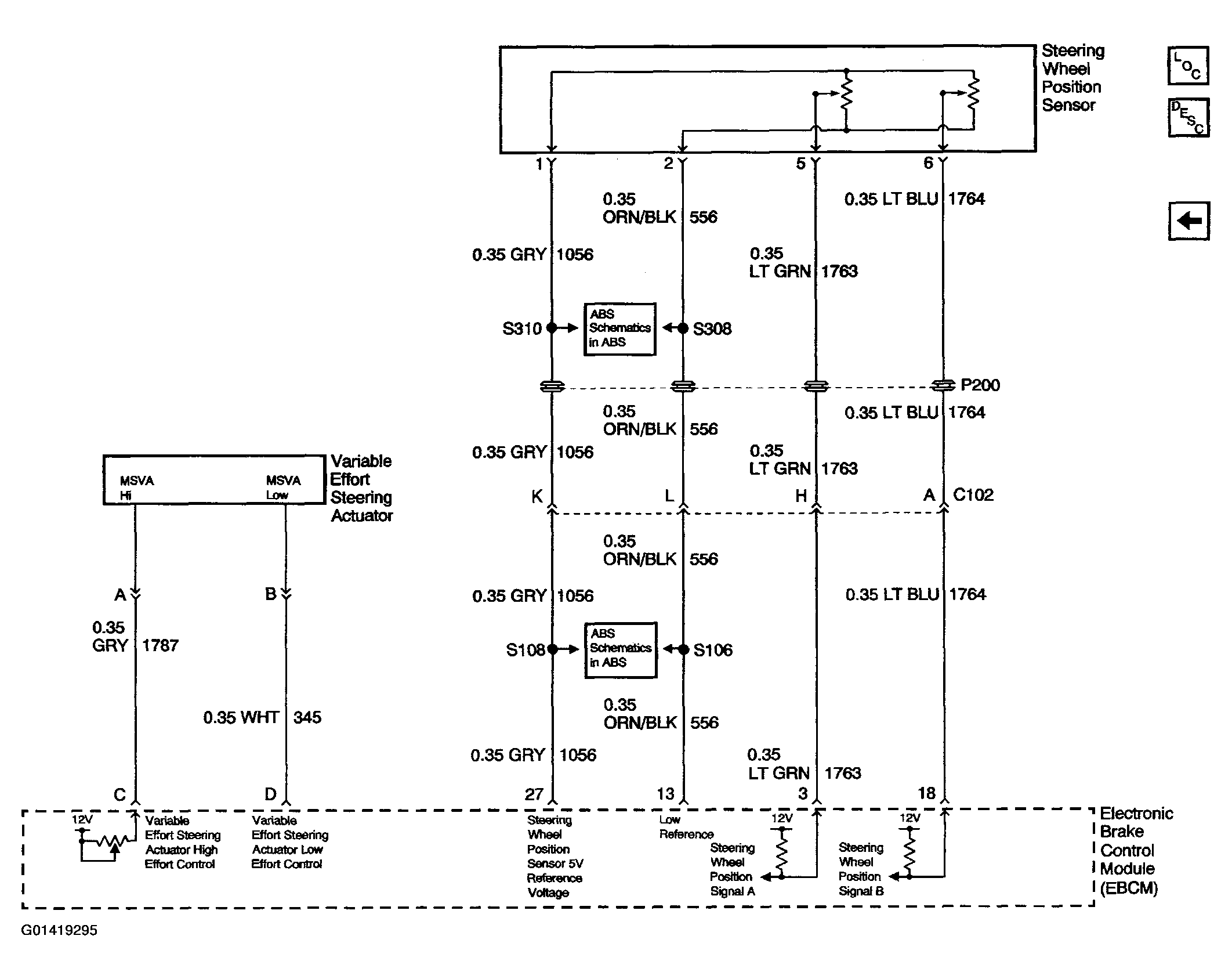

Fig 2: Steering Controls Schematics (Steering Wheel Position Sensor)
G01419295Courtesy of GENERAL MOTORS CORP.
