Rear Axle Component Views

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

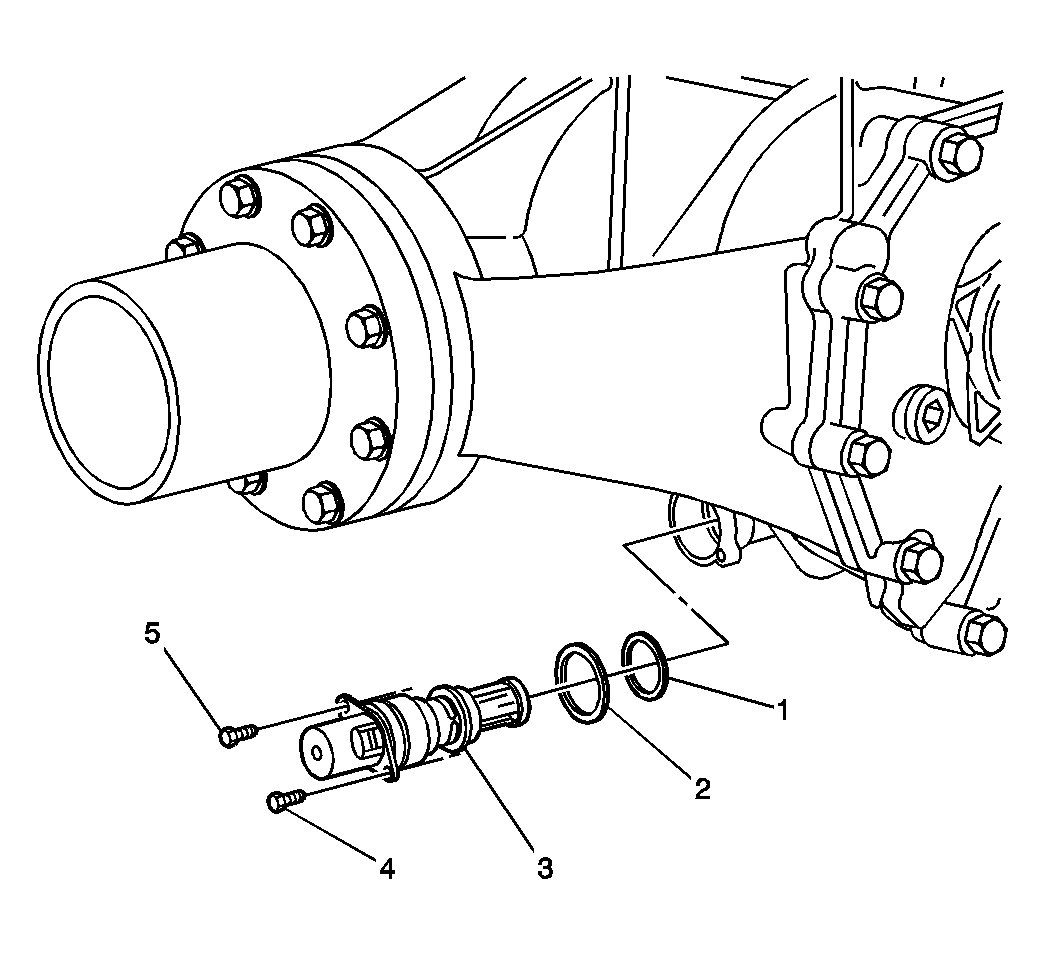

Fig 1: Differential Clutch Pump Actuator Check Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	O-ring
2	O-ring
3	Differential Clutch Pump Actuator Check Valve
4	Mounting Bolt
5	Mounting Bolt
