Power Outlet Connector End Views

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

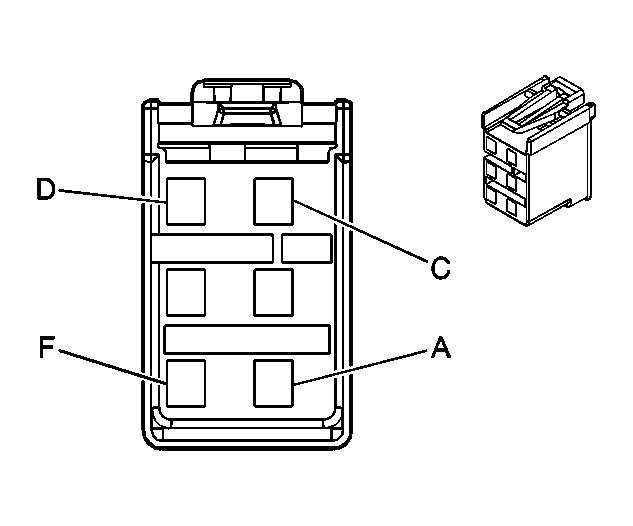

Auxiliary Drop Connector End View

GM366015Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193928
  • 6-Way F Metri-Pack 280 Series Flexlock (GRY)
Pin Wire Color Circuit No. Function
A ORN 2740 Battery Positive Voltage
B - - Not Used
C YEL 743 Accessory Voltage
D LT GRN 2271 ADG Class 2 Serial Data
E - - Not Used
F BLK 150 Ground
Auxiliary Power Outlet Connector End View - Console

GM362748Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176836
  • 3-Way F Metri-Pack 280 Series (GRY)
Pin Wire Color Circuit No. Function
A ORN 2740 Battery Positive Voltage
B - - Not Used
C BLK 150 Ground
Auxiliary Power Outlet Connector End View - Rear

GM362748Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176836
  • 3-Way F Metri-Pack 280 Series (GRY)
Pin Wire Color Circuit No. Function
A ORN 2540 Battery Positive Voltage
B - - Not Used
C BLK 850 Ground
Cigar Lighter Connector End View

GM362748Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176836
  • 3-Way F Metri-Pack 280 Series (GRY)
Pin Wire Color Circuit No. Function
A ORN 2740 Battery Positive Voltage
B - - Not Used
C BLK 150 Ground
