ABS Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

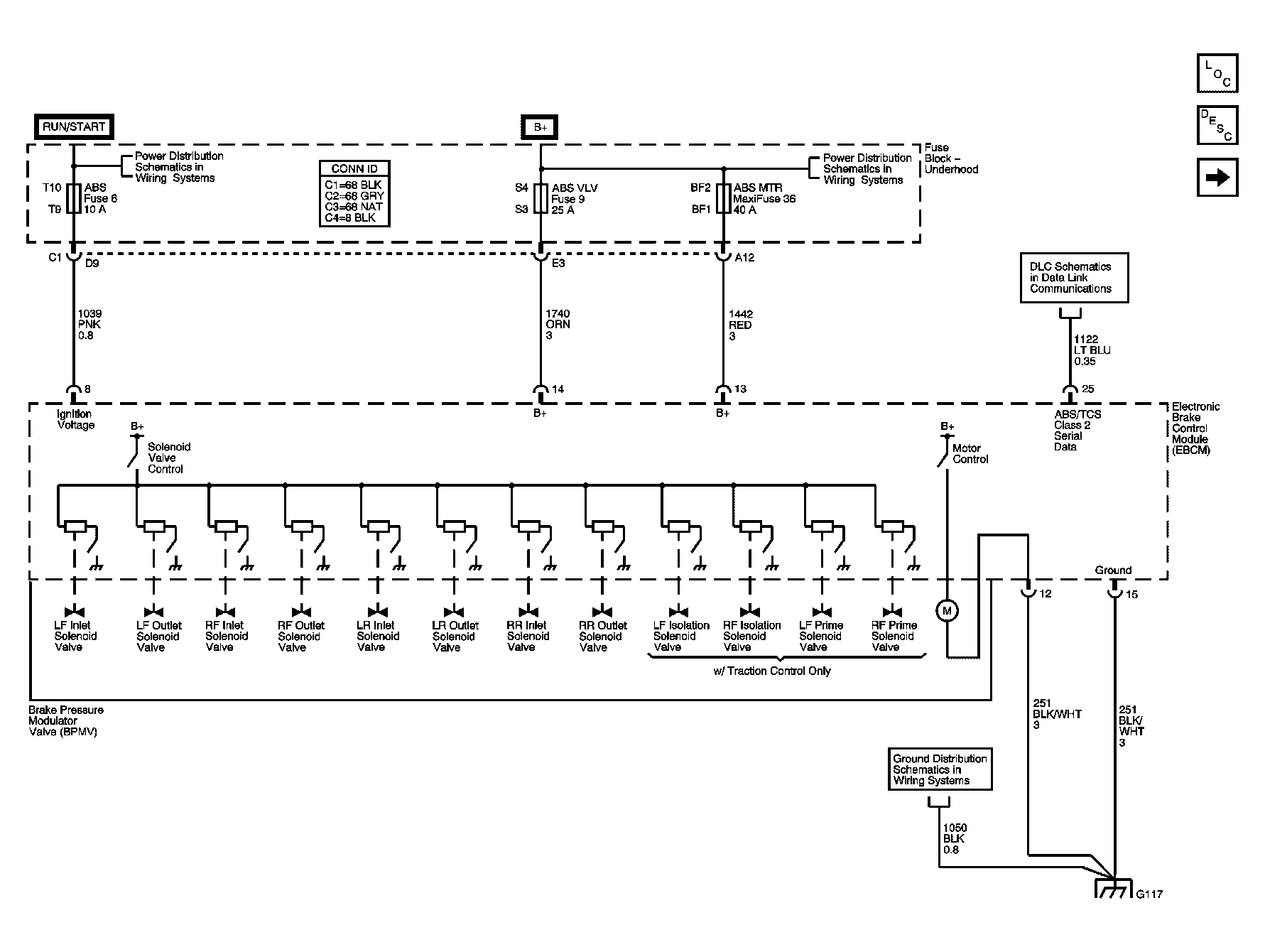

Fig 1: Brake Pressure Modulation, Ground, Power, and Stop Lamp Switch Schematic

Courtesy of GENERAL MOTORS CORP.

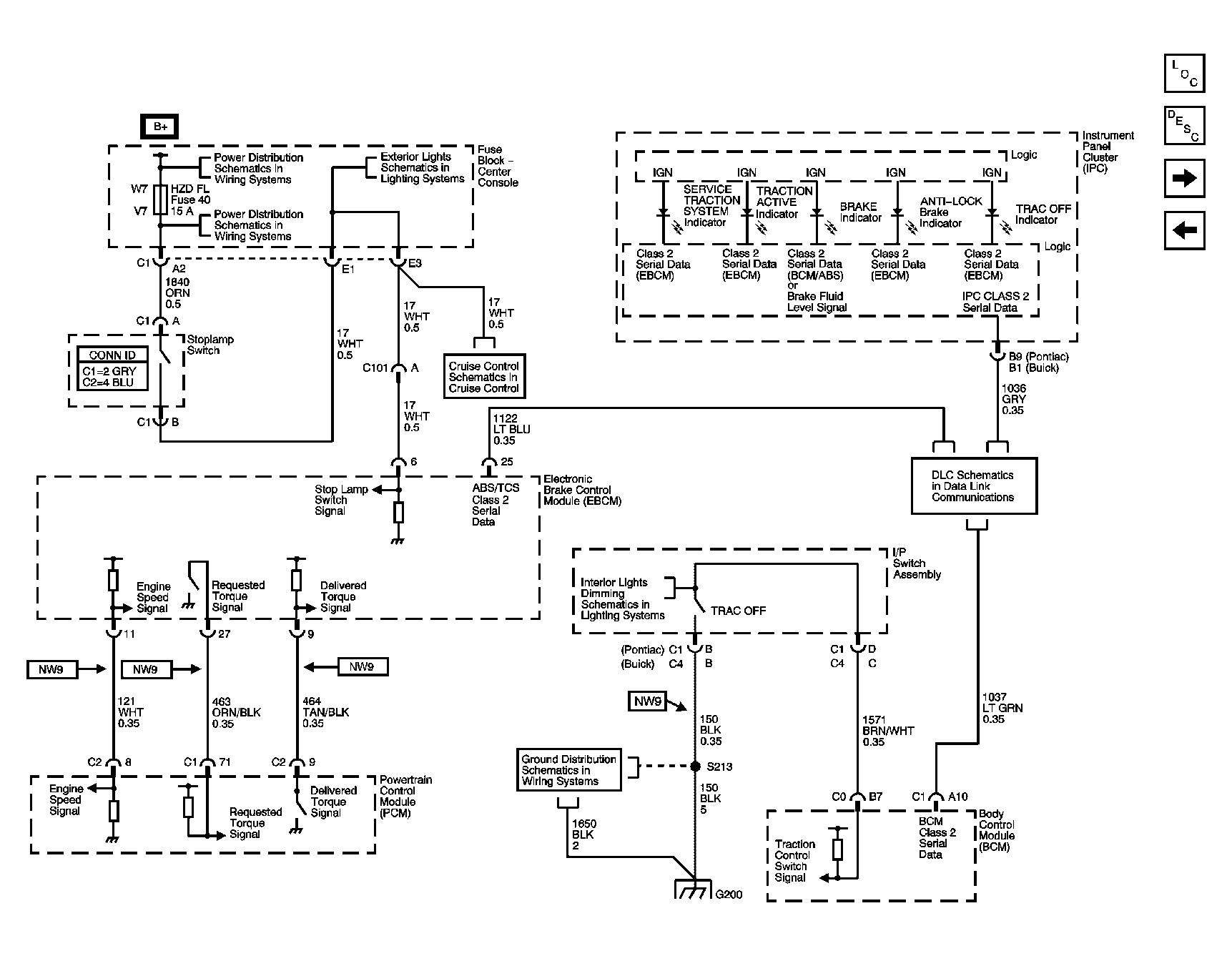

Fig 2: DLC, Indicators, and Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.

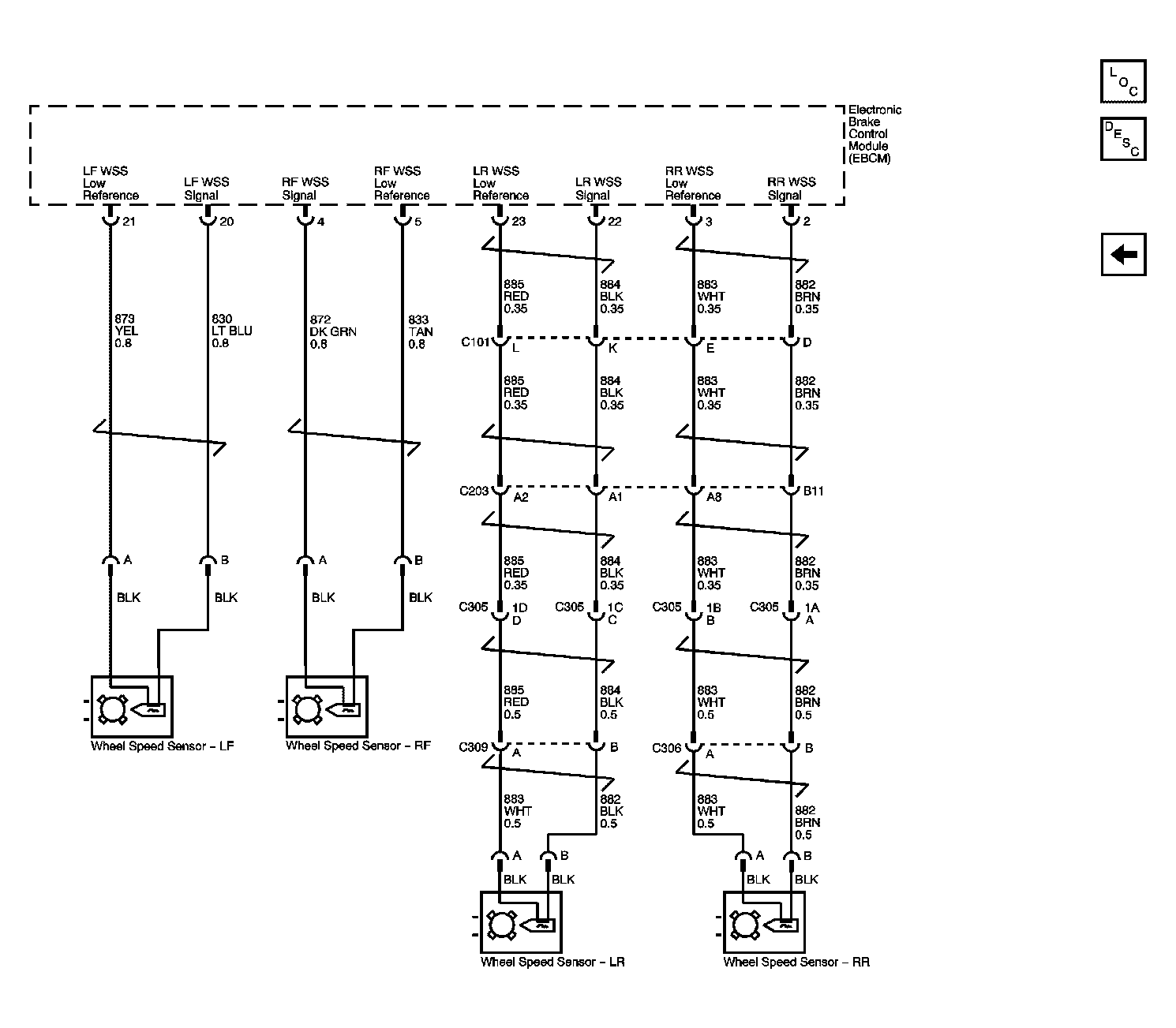

Fig 3: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
