Removal (4.3L)

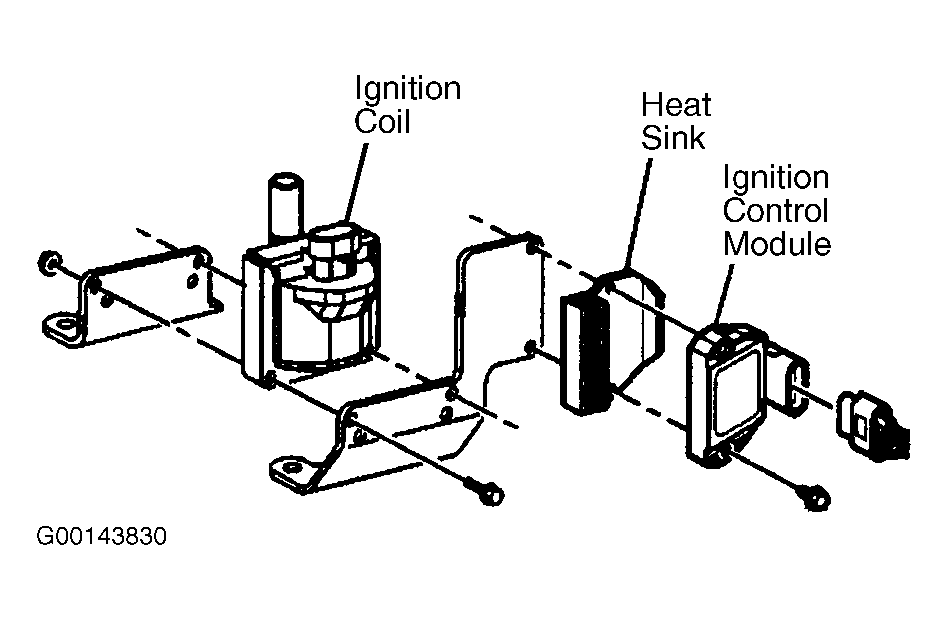

Turn ignition off. Disconnect harness connector at ignition control module. See Figure. Remove screws retaining ignition control module and heat sink to bracket. Remove ignition control module and heat sink.
Turn ignition off. Disconnect harness connector at ignition control module. See Figure. Remove screws retaining ignition control module and heat sink to bracket. Remove ignition control module and heat sink.
