Installation Procedure

  1. Connect the electrical connection.
  2. Install the electronic display module (2) to the overhead console (3).

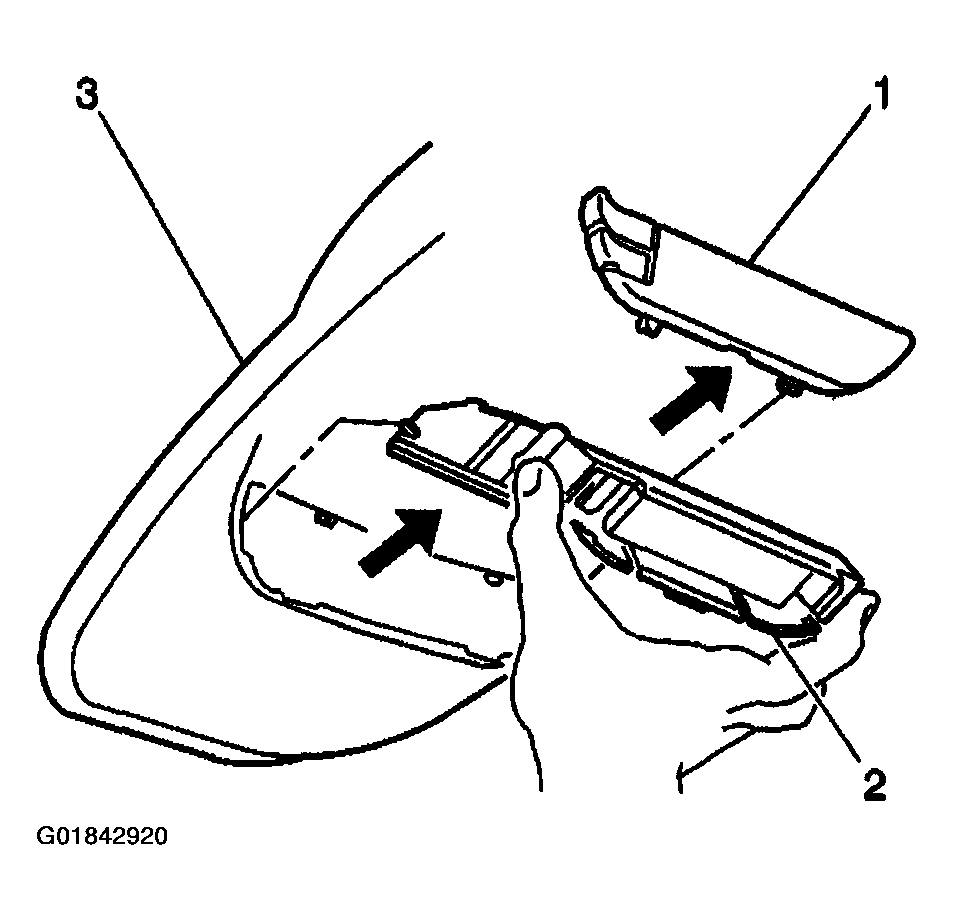

    Fig 1: Locating Driver Information Center Module
    G01842920Courtesy of GENERAL MOTORS CORP.
  3. Install the display lens (1) by snapping the lens into place.
  4. Calibrate the compass. Refer to ELECTRONIC COMPASS CALIBRATION .
