Horns Connector End Views

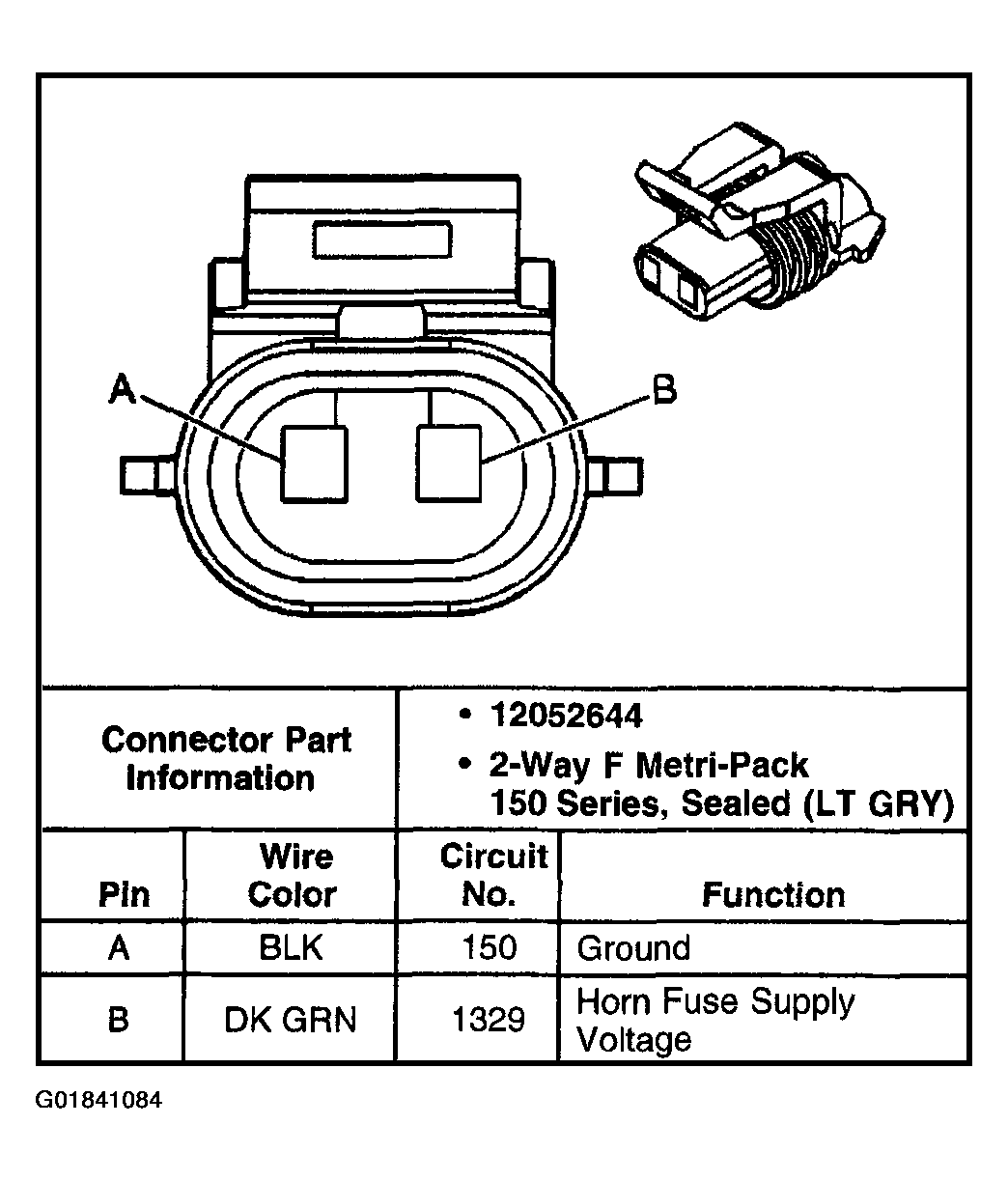

Fig 1: Horn Connector End View - Left

G01841084

Courtesy of GENERAL MOTORS CORP.

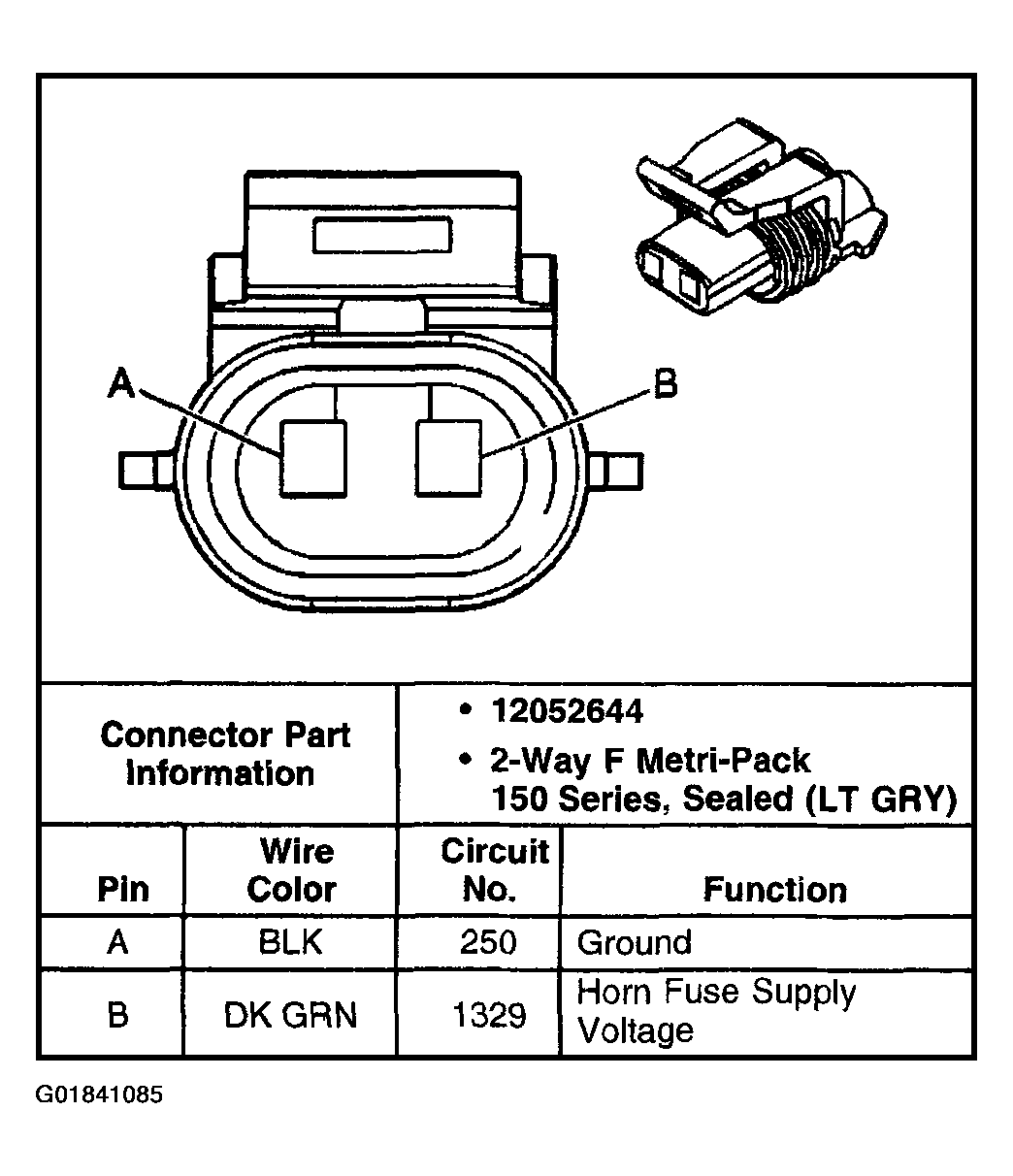

Fig 2: Horn Connector End View - Right

G01841085

Courtesy of GENERAL MOTORS CORP.
