Home >> GMC >> 2002 >> Jimmy 2D Utility, Part Time, Automatic >> Repair and Diagnosis >> Electrical >> Charging Systems >> Battery >> Repair Instructions >> Battery Negative Cable Replacement (2.2L) >> Removal Procedure

Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the negative battery cable bolt from the frame.
    Fig 1: Negative Battery Cable Bolt At Frame (2.2L)
    G01659032Courtesy of GENERAL MOTORS CORP.
  4. Remove the negative battery cable bolt from the radiator support.

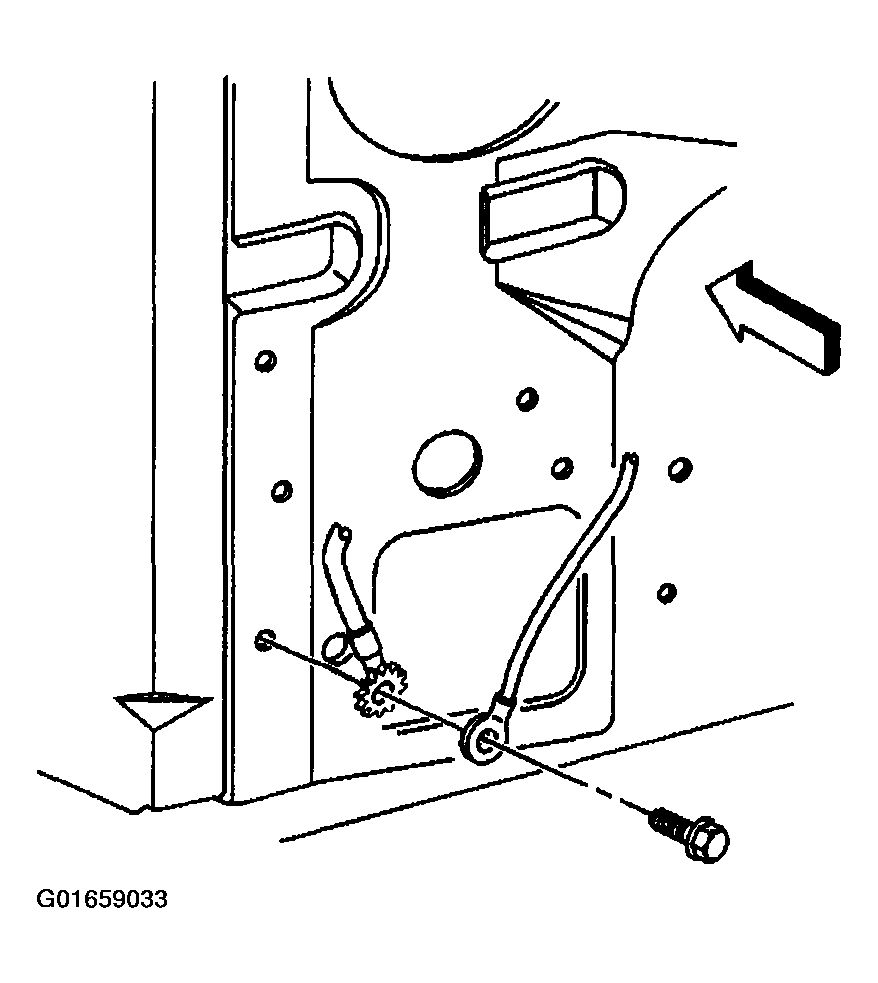

    Fig 2: Negative Battery Cable Bolt At Radiator Support (2.2L)
    G01659033Courtesy of GENERAL MOTORS CORP.
  5. Remove the negative cable harness bolt from the engine.

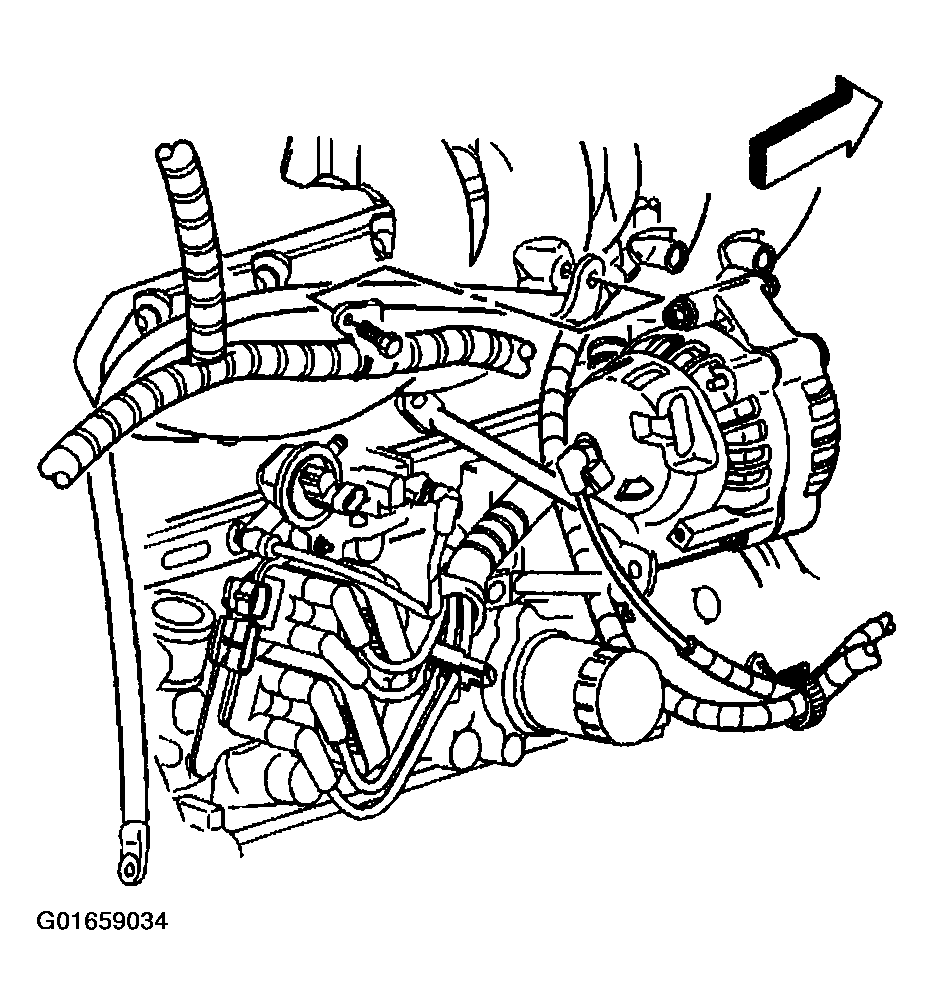

    Fig 3: Negative Cable Harness Bolt At Engine (2.2L)
    G01659034Courtesy of GENERAL MOTORS CORP.
  6. Remove the negative battery cable nut from the block.
  7. Remove the negative battery cable.

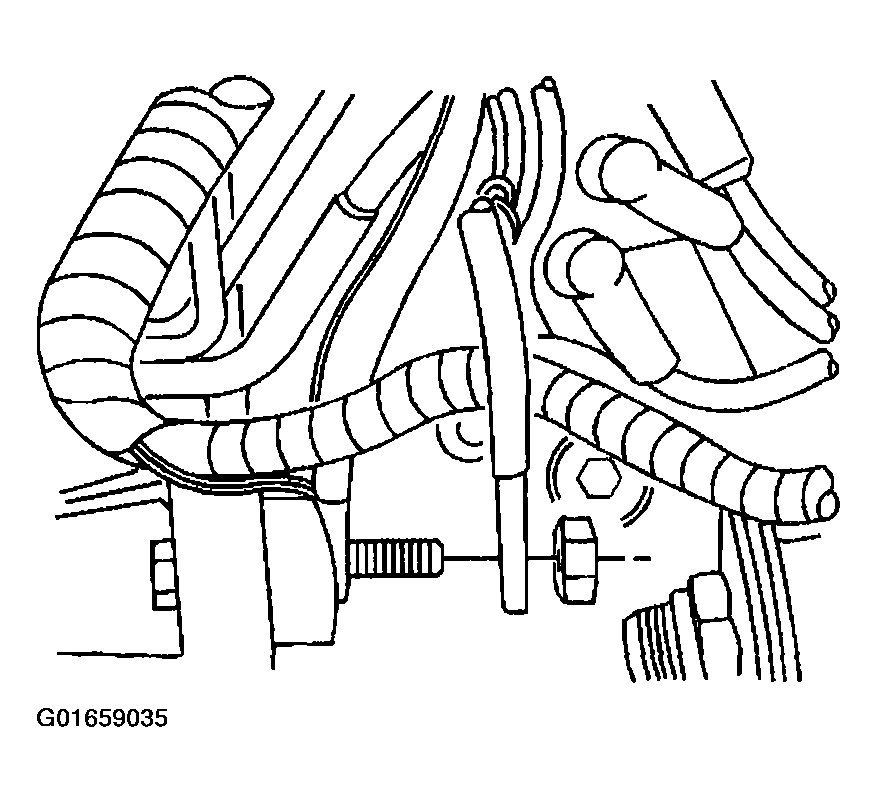

    Fig 4: Negative Battery Cable Nut At Block (2.2L)
    G01659035Courtesy of GENERAL MOTORS CORP.
