Removal Procedure

  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove brake caliper. Refer to BRAKE CALIPER -- FRONT SINGLE PISTON or BRAKE CALIPER -- FRONT DUAL PISTON .
  4. Remove the hub and rotor. Refer to BRAKE ROTOR -- FRONT .
  5. Remove wheel speed sensor cable electrical connector (2).

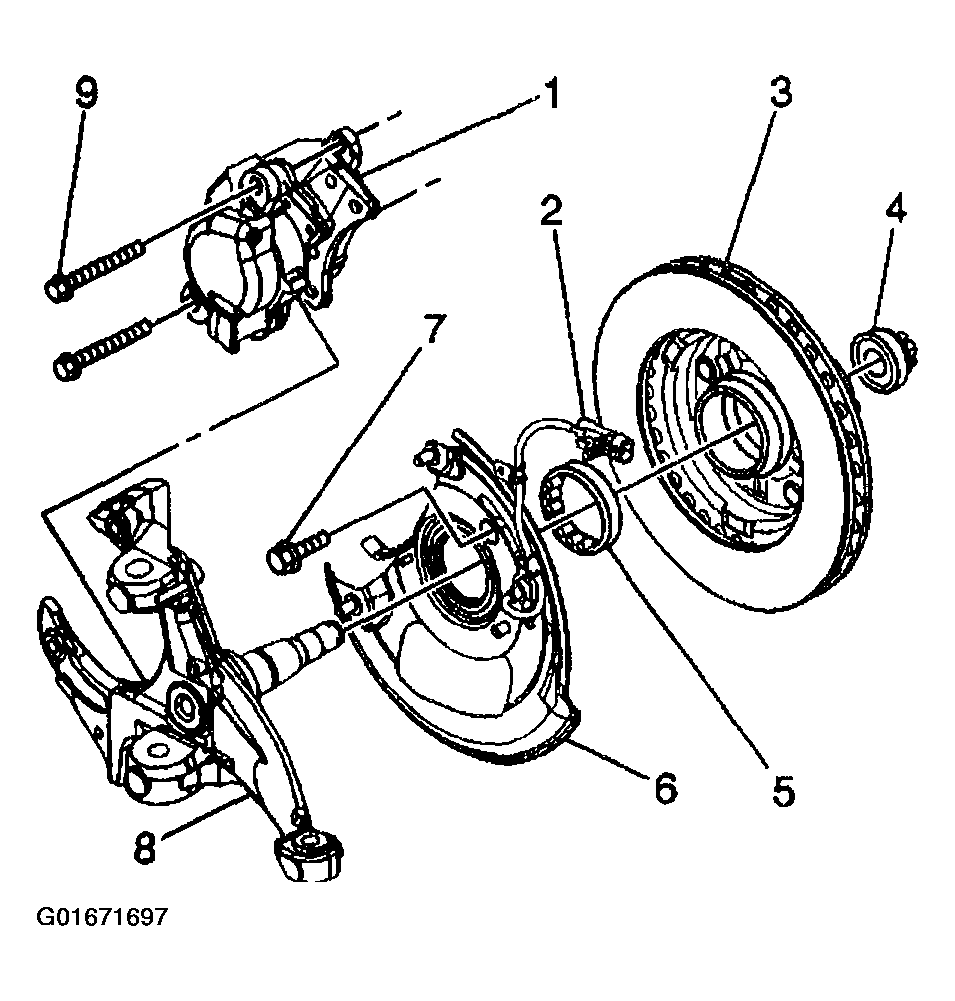

    6. Fig 1: Wheel Speed Sensor Cable Electrical Connector
    G01671697Courtesy of GENERAL MOTORS CORP.
  6. Remove 13 mm bolt and nut fastening the wheel speed sensor harness clip to the front side of the upper control arm.
  7. Remove clips from the wheel speed sensor wire. Save the clips for the sensor wire.
  8. Remove two 13 mm wheel speed sensor mounting bolts (7).
  9. Remove two 11 mm splash shield mounting bolts.
  10. Remove wheel speed sensor and splash shield assembly (6).
  11. Remove splash shield gasket.
  12. Clean gasket and knuckle surfaces thoroughly with a dry cloth.
