Schematic and Routing Diagrams

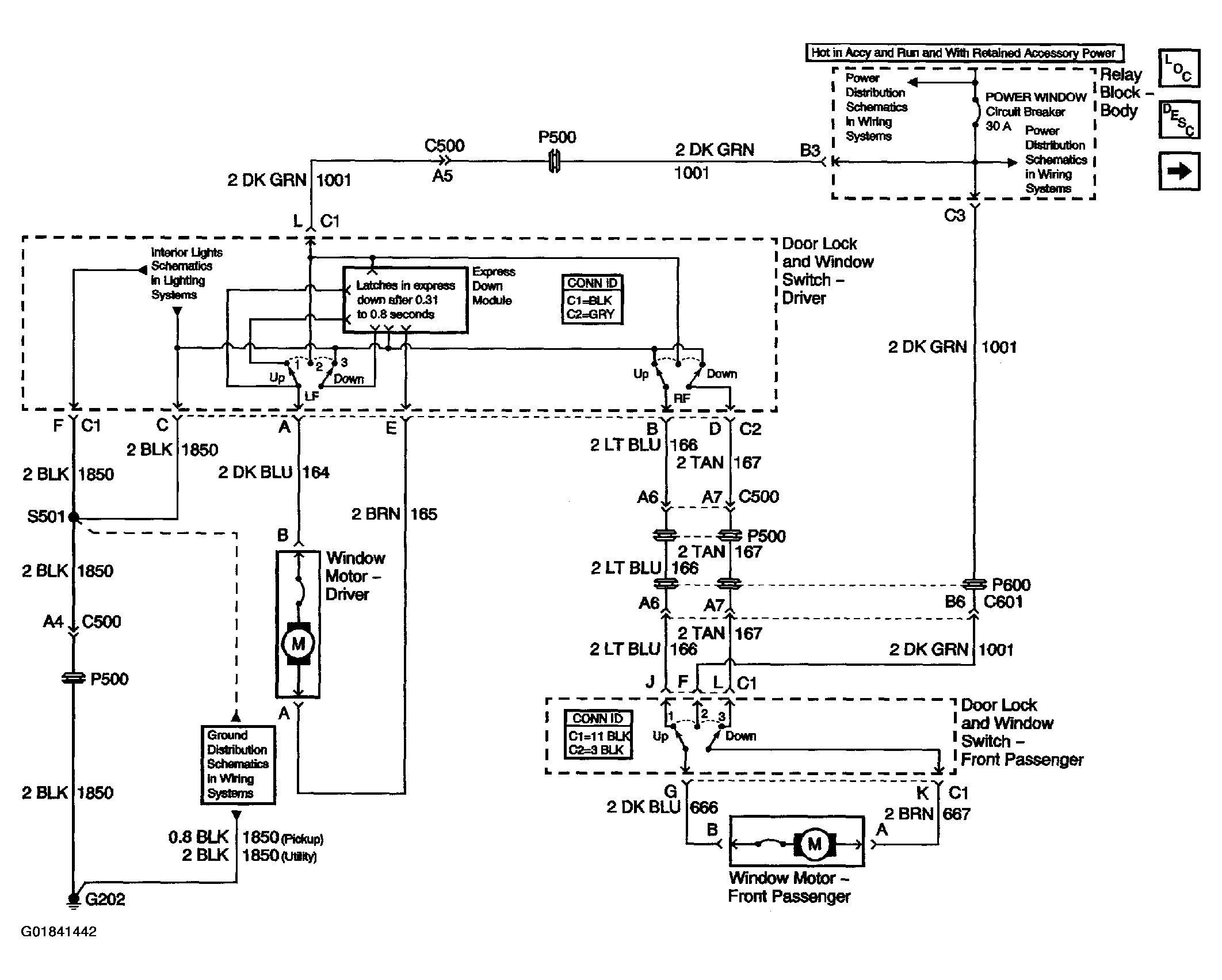

Fig 1: Power Window Schematics (Front Side Window Motors - 2-Door)

Courtesy of GENERAL MOTORS CORP.

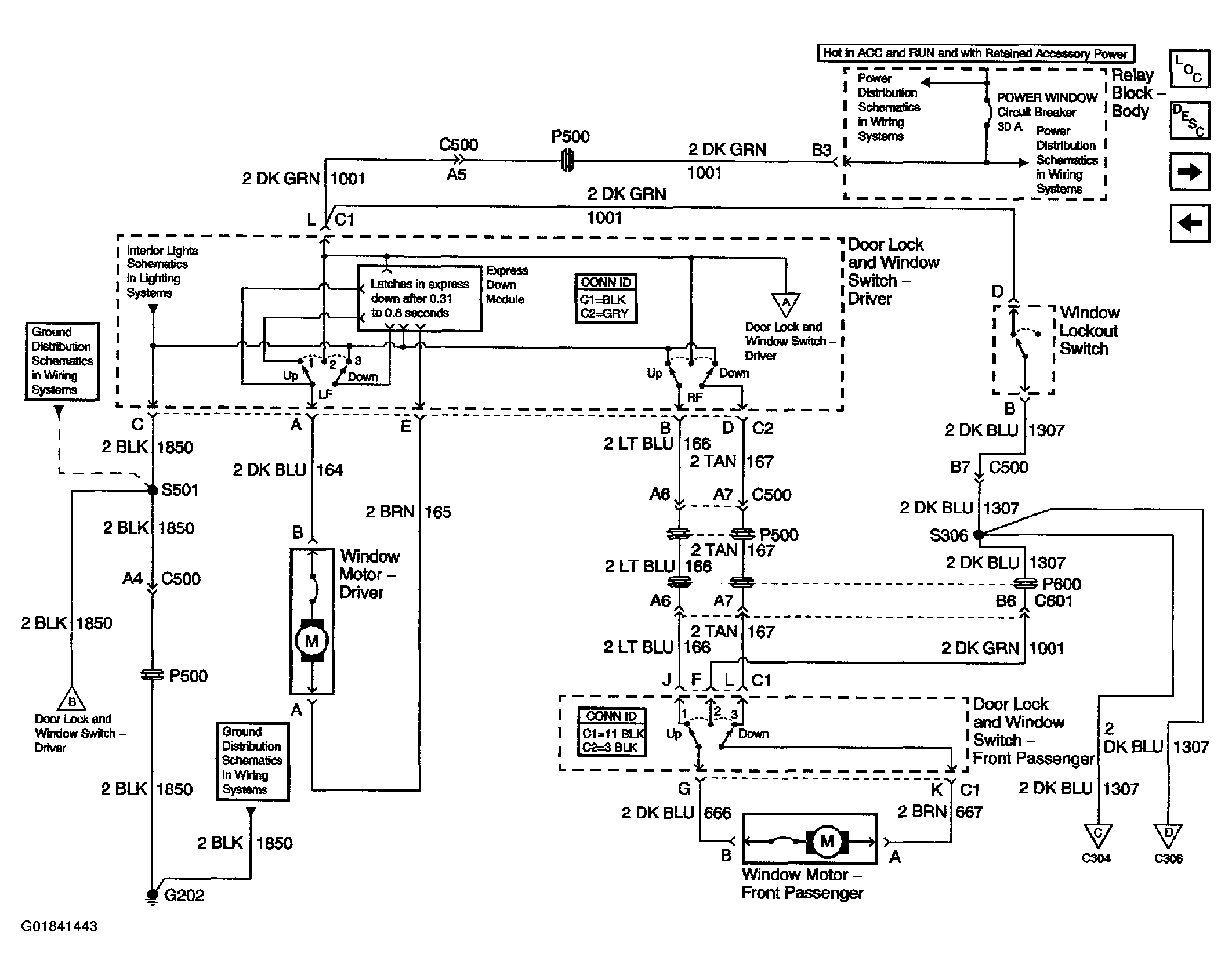

Fig 2: Power Window Schematics (Front Side Window Motors - 4-Door)

Courtesy of GENERAL MOTORS CORP.

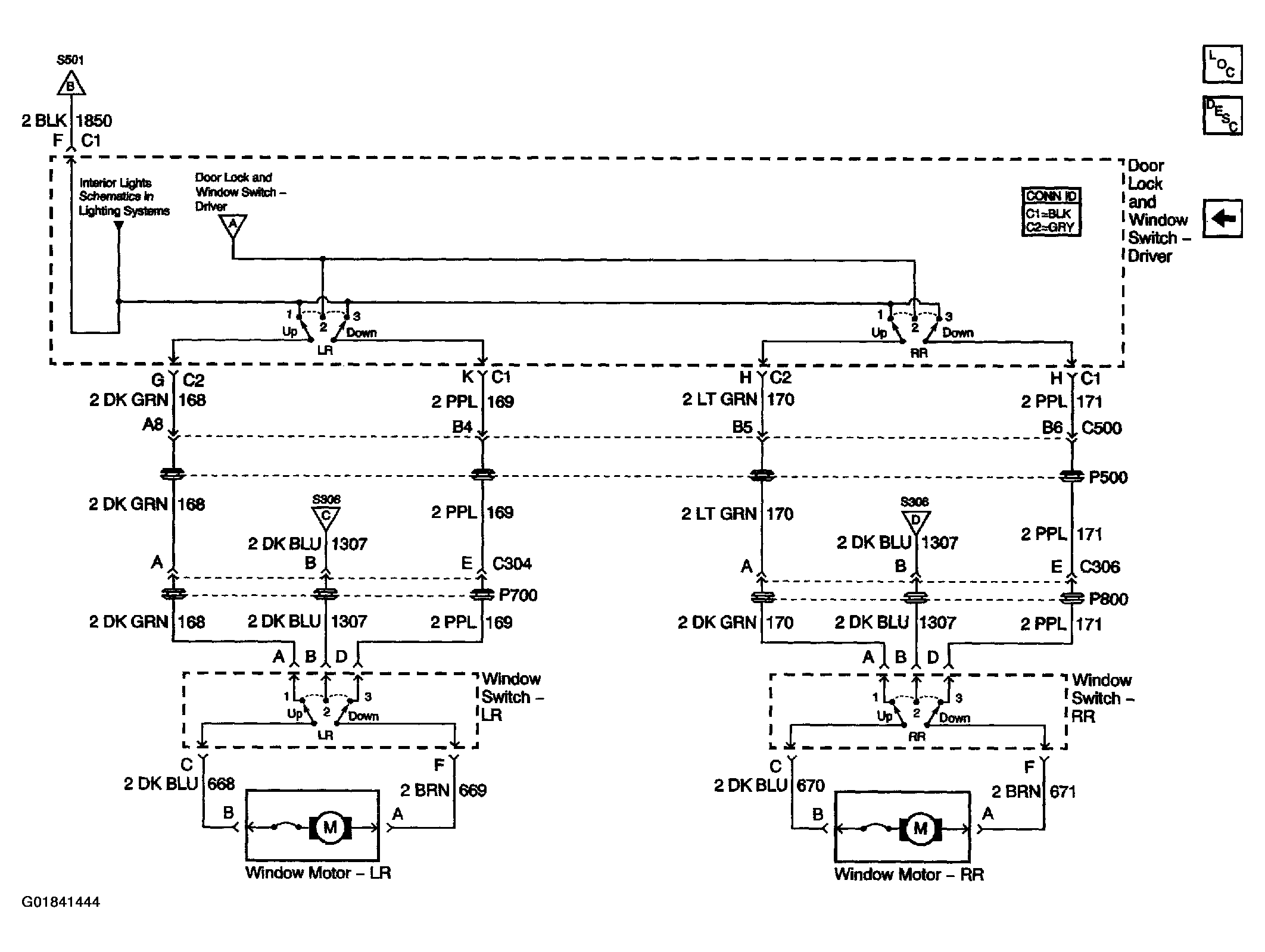

Fig 3: Power Window Schematics (Rear Side Window Motors)

Courtesy of GENERAL MOTORS CORP.

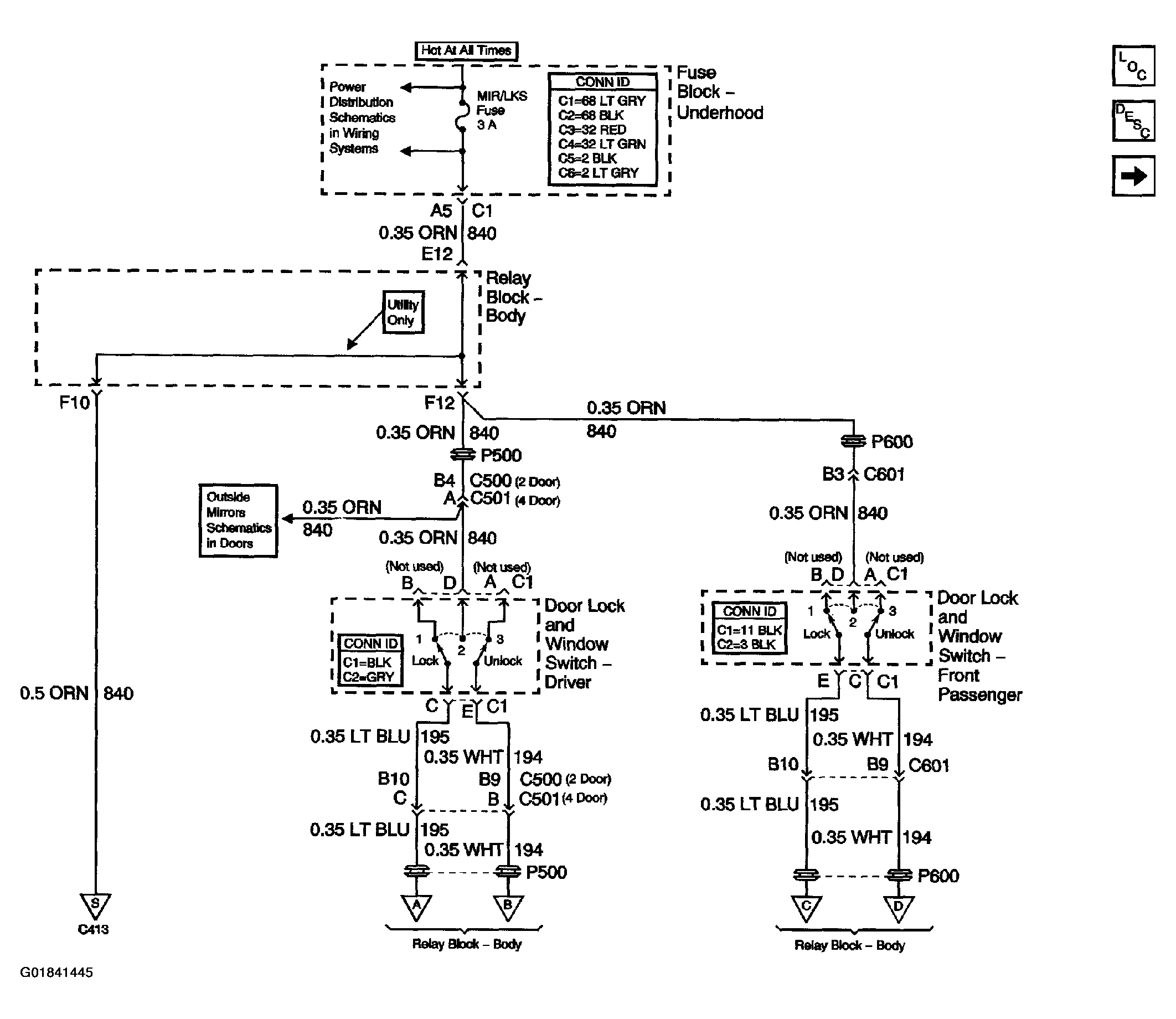

Fig 4: Door Lock/Indicator Schematics (Door Lock Switch Inputs)

Courtesy of GENERAL MOTORS CORP.

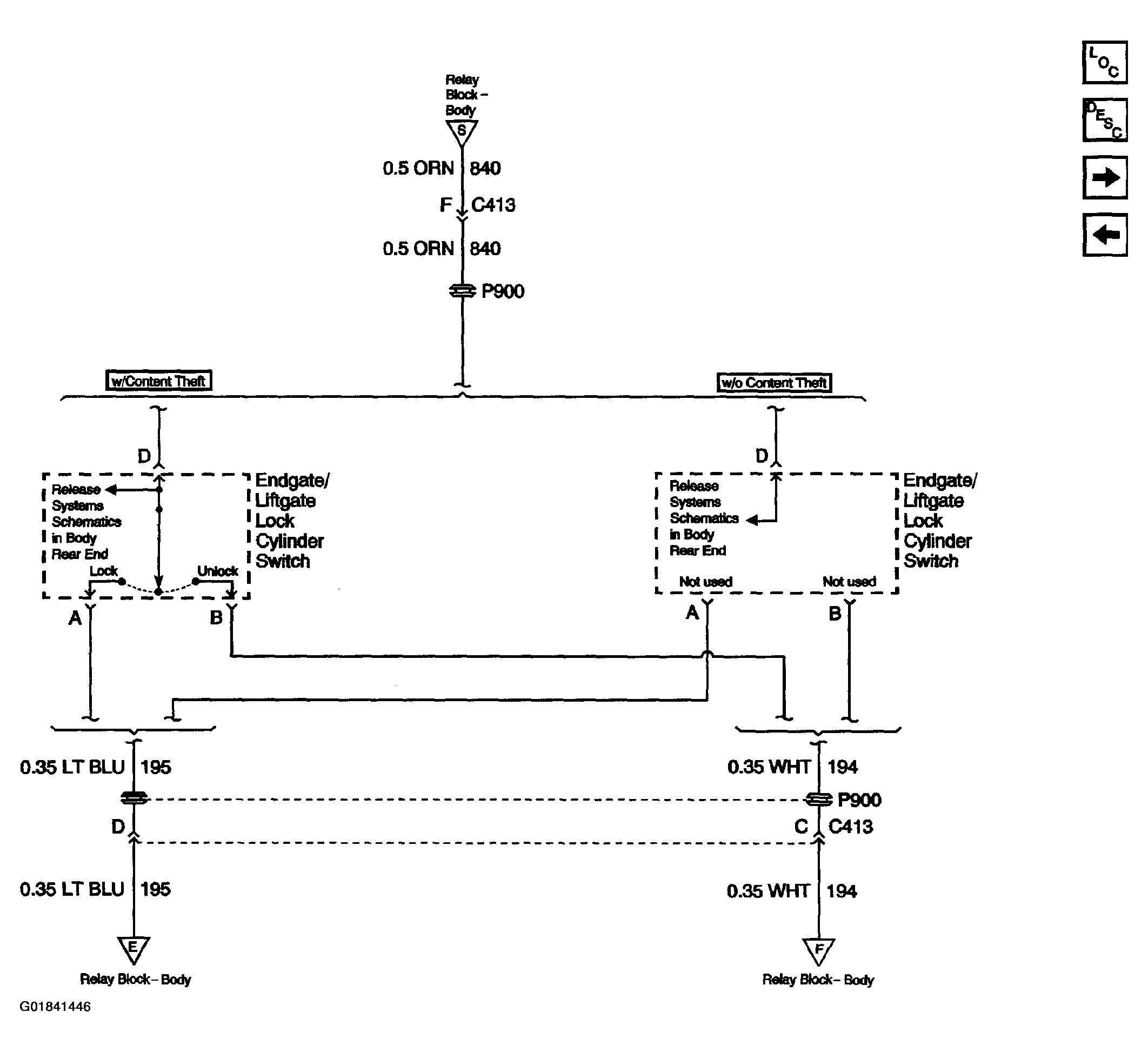

Fig 5: Door Lock/Indicator Schematics (Endgate Lock Cylinder Switch Inputs - Utility)

Courtesy of GENERAL MOTORS CORP.

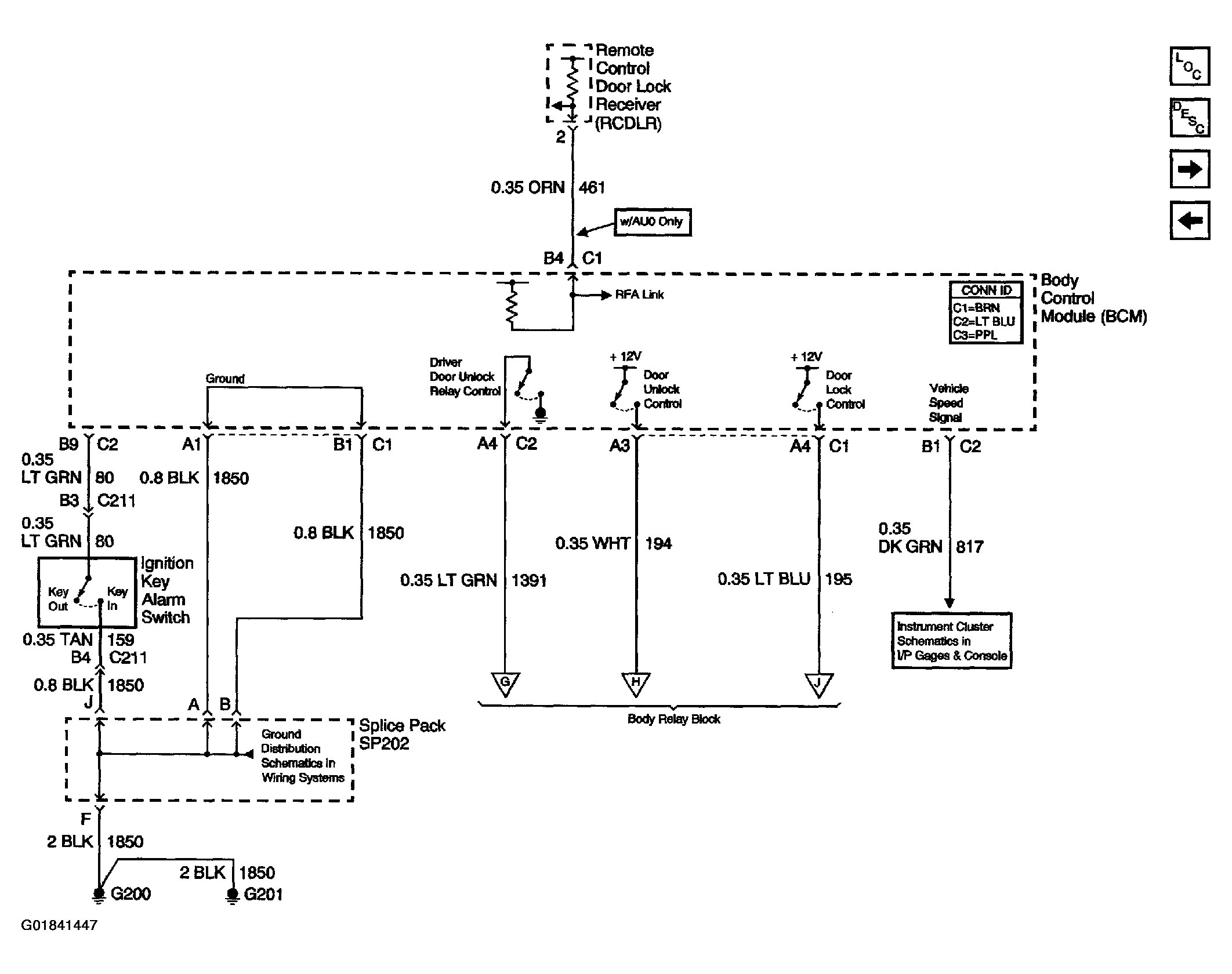

Fig 6: Door Lock/Indicator Schematics (BCM Inputs and Outputs)

Courtesy of GENERAL MOTORS CORP.

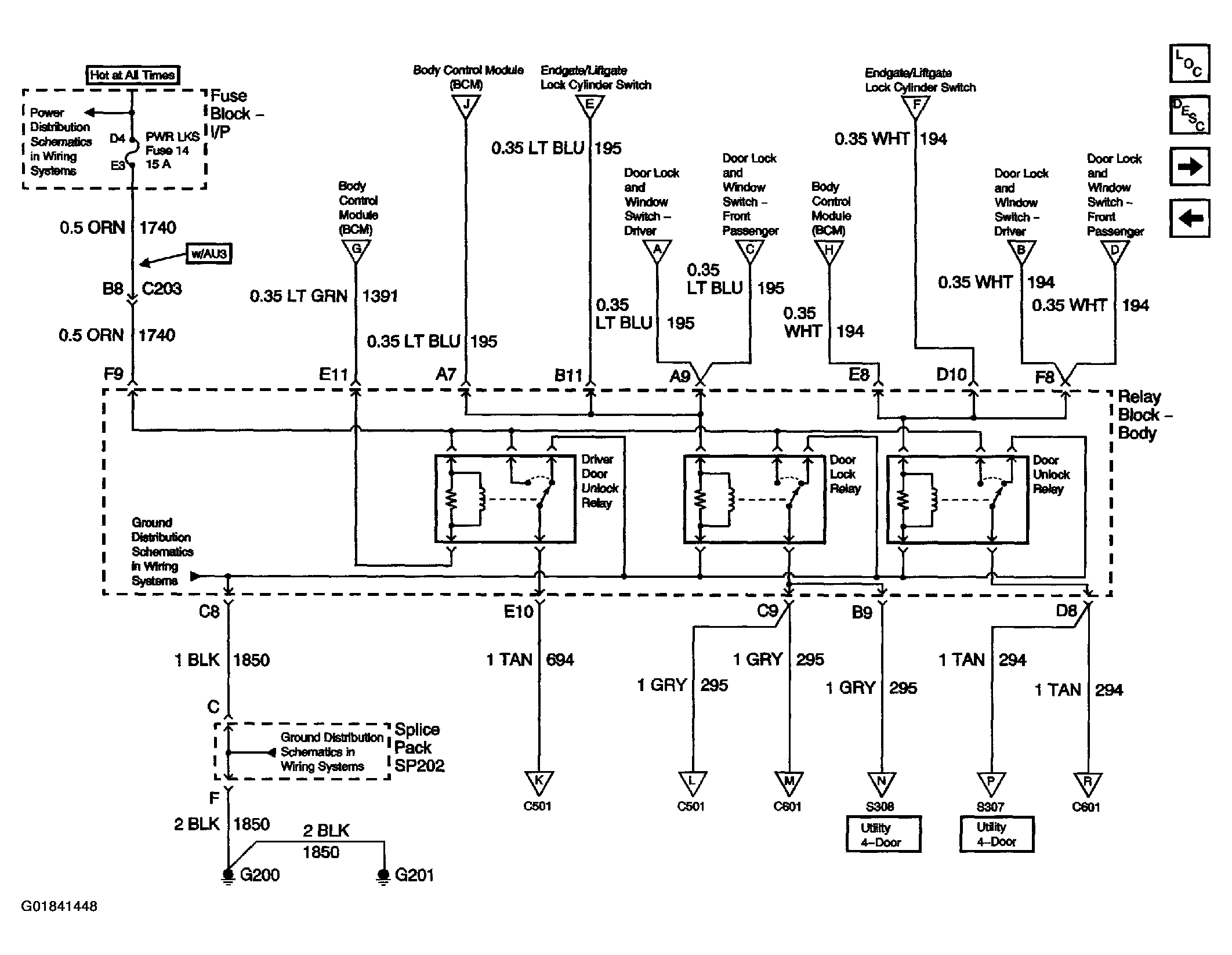

Fig 7: Door Lock/Indicator Schematics (Relay Control)

Courtesy of GENERAL MOTORS CORP.

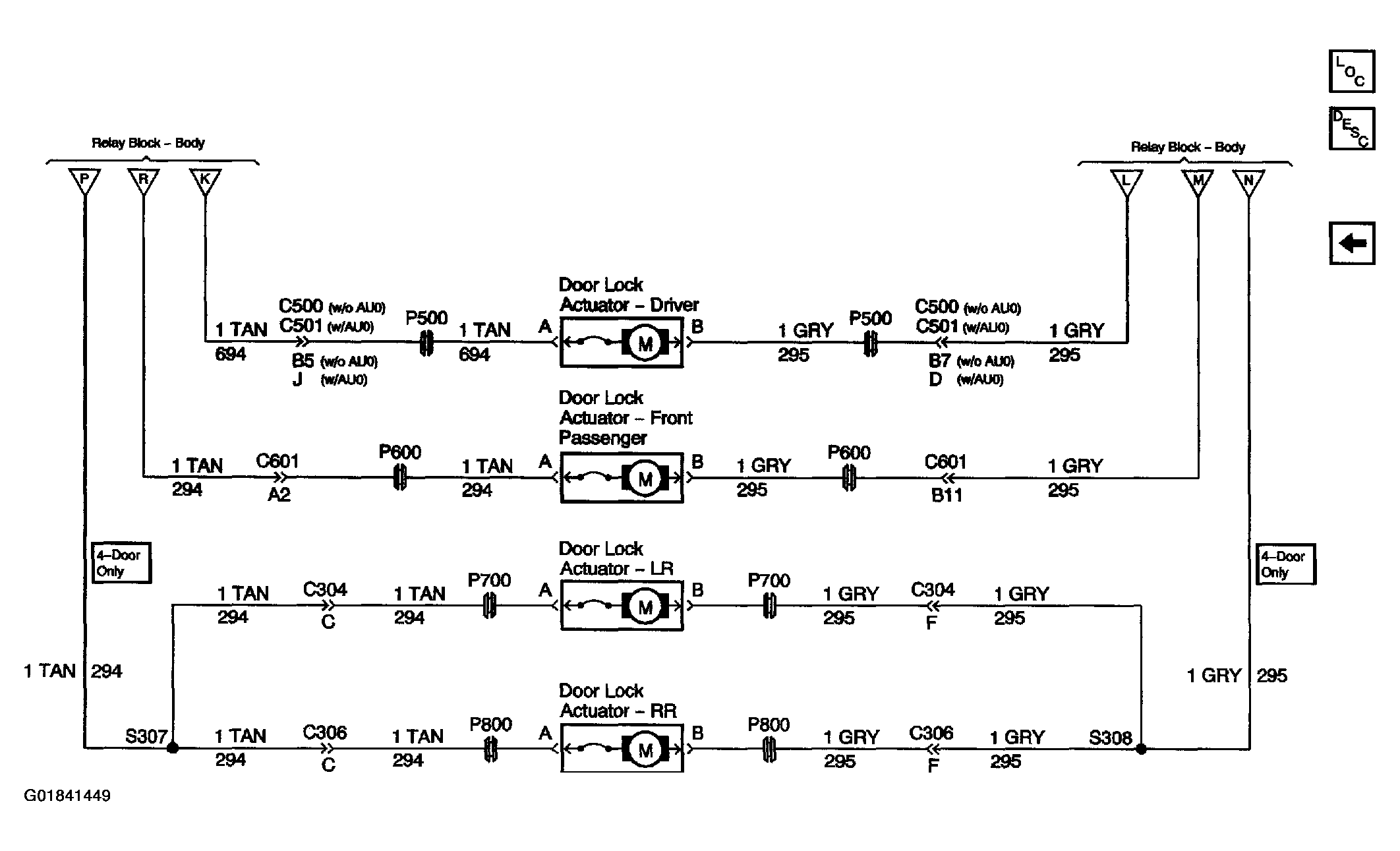

Fig 8: Door Lock/Indicator Schematics (Door Lock Actuators)

Courtesy of GENERAL MOTORS CORP.

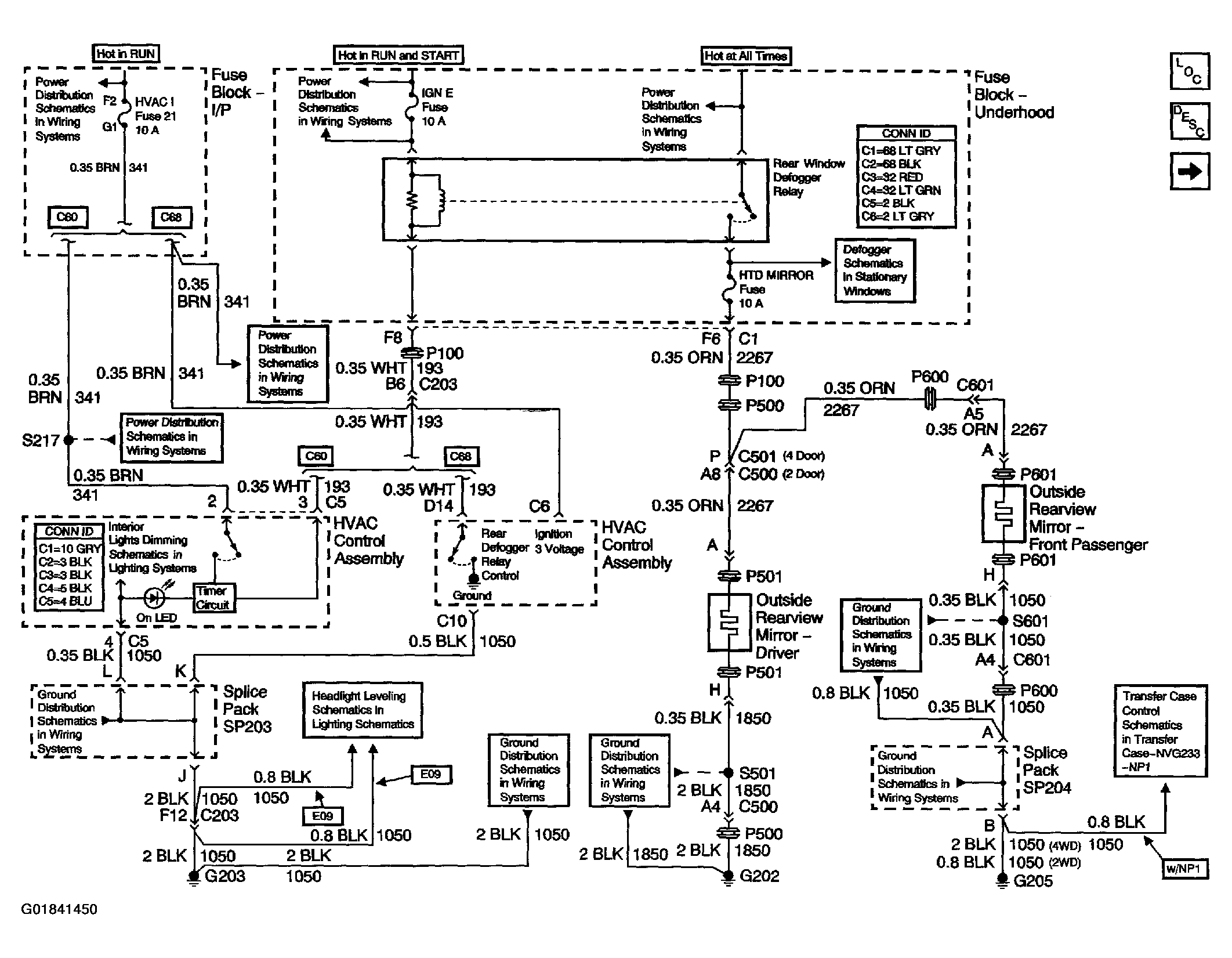

Fig 9: Outside Mirror Schematics (Heated Mirrors)

Courtesy of GENERAL MOTORS CORP.

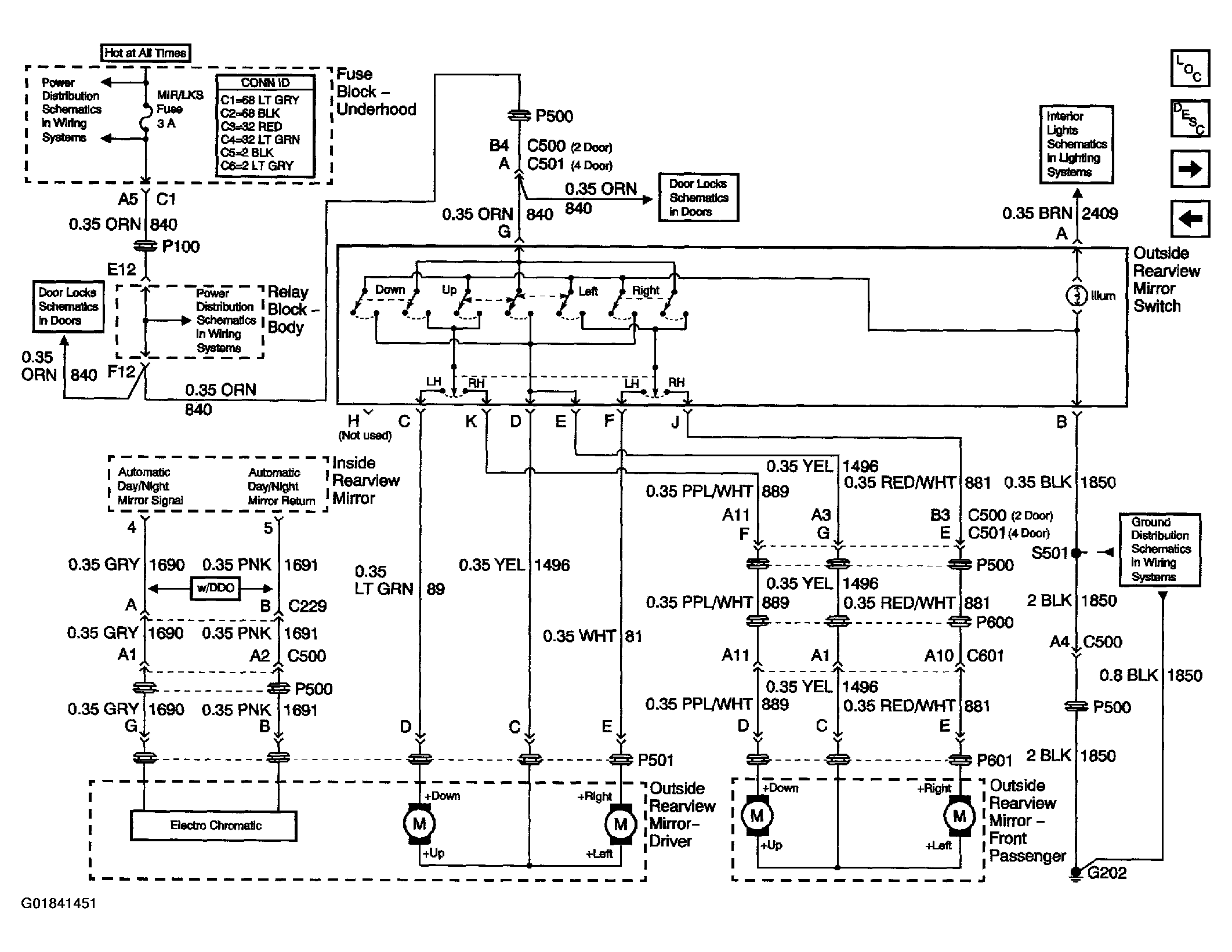

Fig 10: Outside Mirror Schematics (Outside Rearview Mirror Switch)

Courtesy of GENERAL MOTORS CORP.

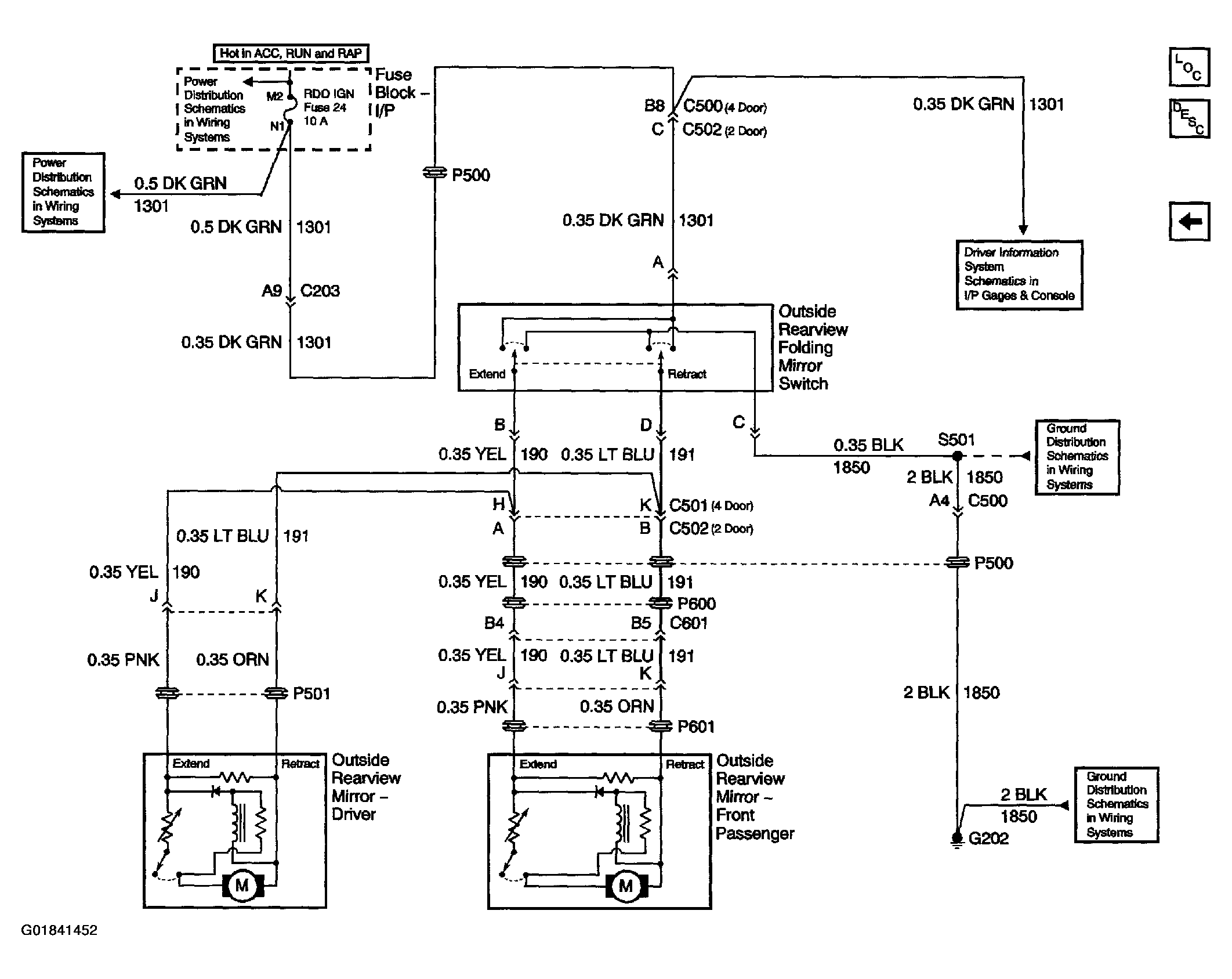

Fig 11: Outside Mirror Schematics (Folding Mirrors- Export Only)

Courtesy of GENERAL MOTORS CORP.
