Door Adjustment

Perform this procedure only when bolt-on replacement hinges are installed.

1. Remove the door striker. Refer to Striker Replacement - Door .
2. Loosen the door hinge to the body side pillar bolts.
3. Adjust the door at the door hinges in the following directions:
   • Upward or downward
   • Forward or rearward
   • Inward or outward
4. Adjust the gap between the rocker panel and the door to 4.0-8.0 mm (0.16-0.31 in).

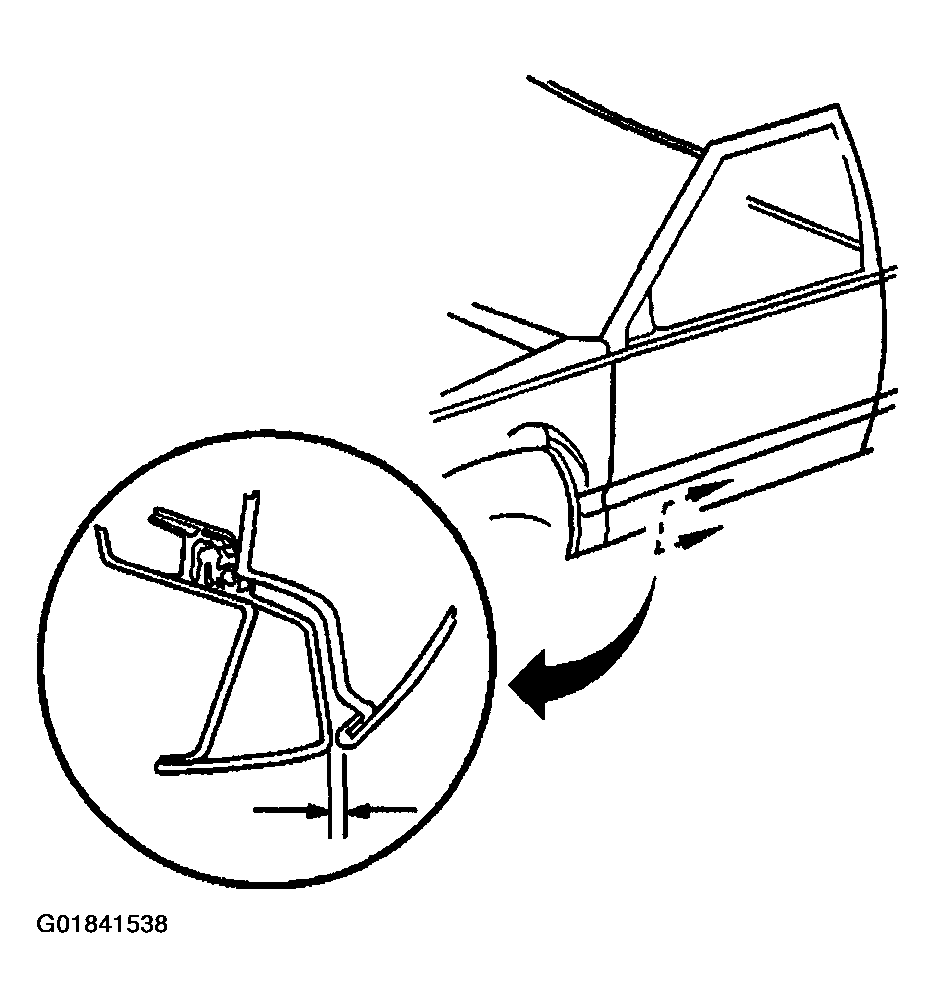

   Fig 1: Adjusting Gap Between Rocker Panel And Door

   Courtesy of GENERAL MOTORS CORP.
5. Adjust the gap between the door and the roof panel to 3.0-9.0 mm (0.12-0.35 in).

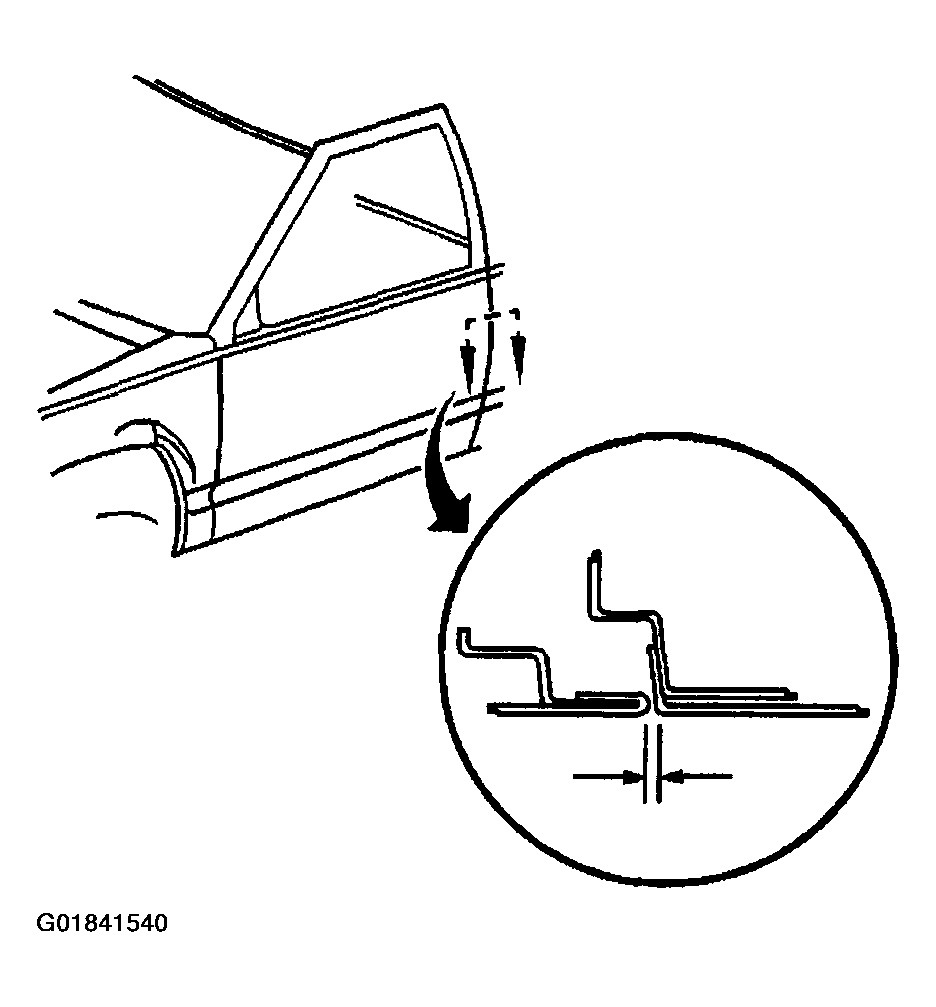

   Fig 2: Adjusting Gap Between Door And Roof Panel

   Courtesy of GENERAL MOTORS CORP.
6. Adjust the gap between the rear of the door and the rear pillar to 3.0-5.0 mm (0.12-0.20 in).

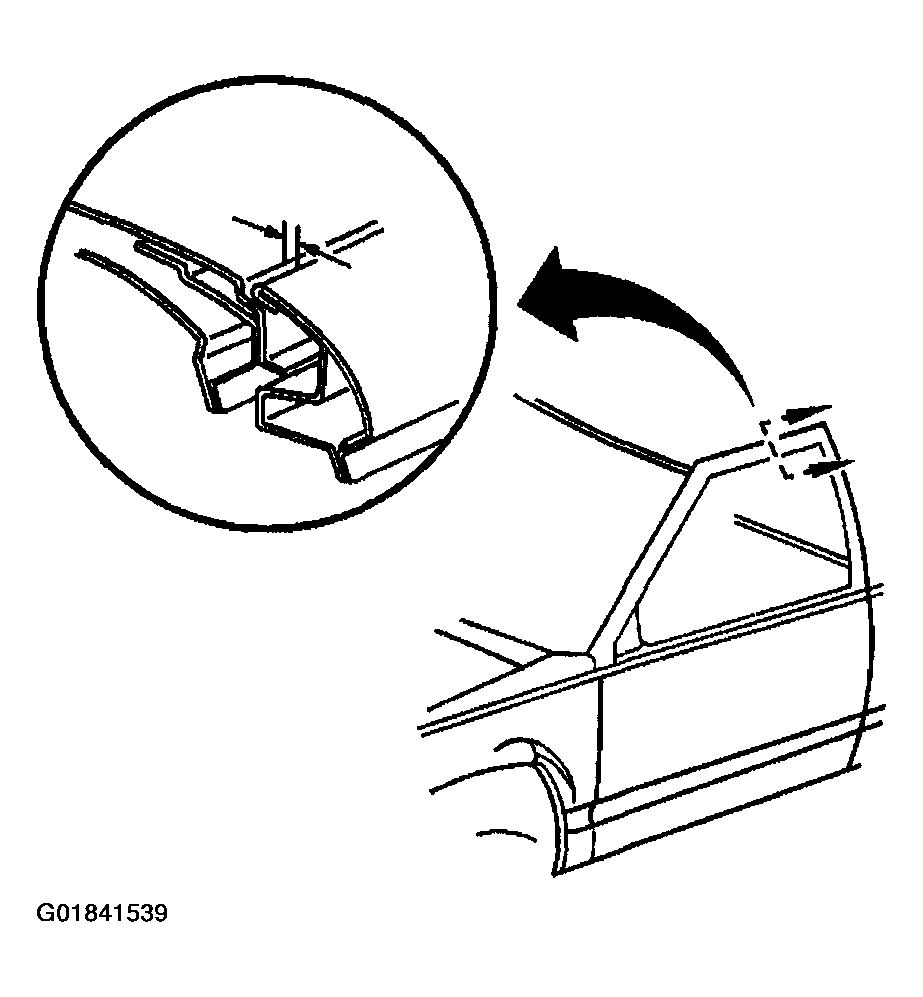

   Fig 3: Adjusting Gap Between Rear Of Door And Rear Pillar

   Courtesy of GENERAL MOTORS CORP.
7. Adjust the gap between the door and the fender to 4.0-6.0 mm (0.16-0.24 in).

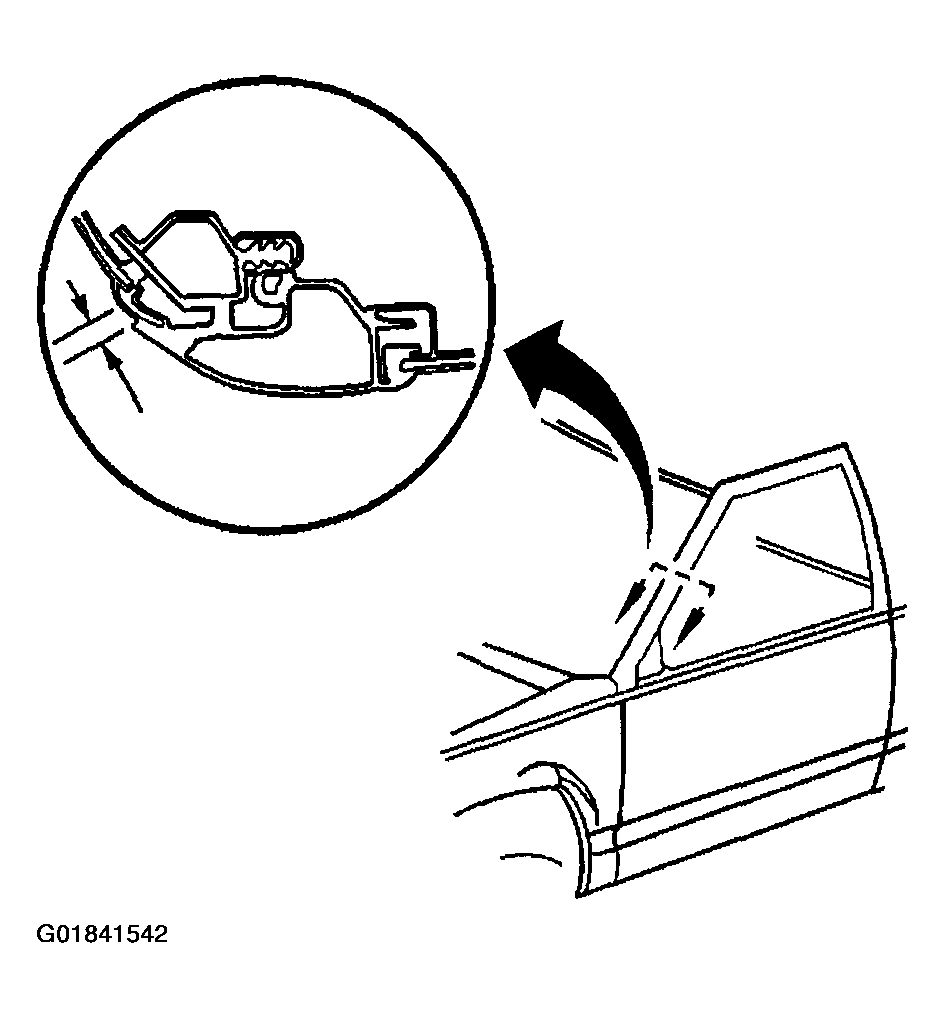

   Fig 4: Adjusting Gap Between Door And Fender

   Courtesy of GENERAL MOTORS CORP.
8. Adjust the door surfaces so that the door surfaces are flush with the other panels to 1.0 mm (0.04 in).
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
9. Tighten the hinge bolts.

   Tighten

   Tighten the hinge bolts to 35 N.m (26 lb ft).

10. Adjust the door striker, if necessary, in order to properly engage the door latch.
    1. 10.1. Loosen the door striker bolts.
    2. 10.2. Adjust the door striker.

       Tighten

       Tighten the door striker bolts to 22 N.m (16lb ft).

       Fig 5: Adjusting Door Striker

       Courtesy of GENERAL MOTORS CORP.
