Lumbar Support Schematics

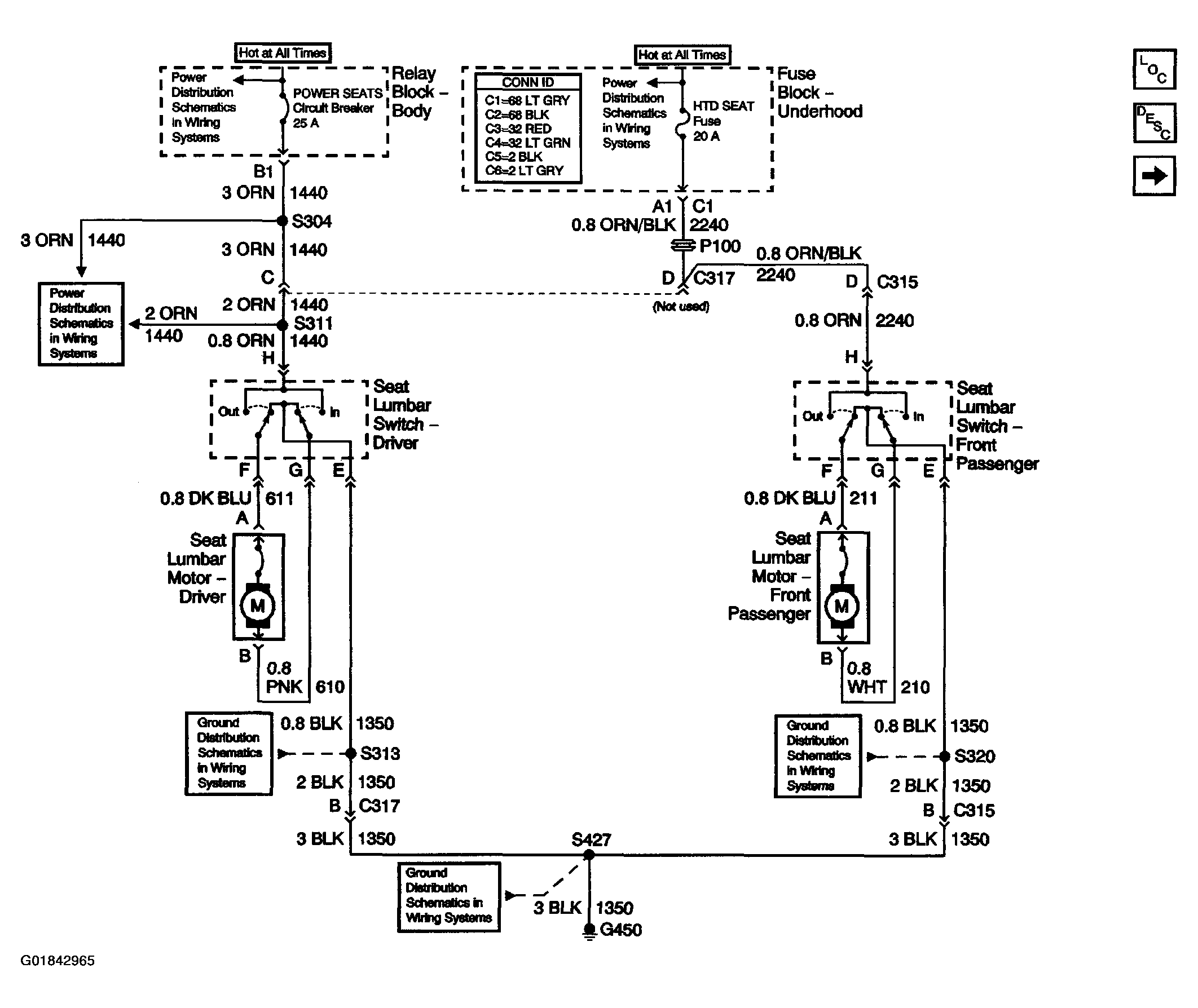

Fig 1: Lumbar Support Schematics (Lumbar w/o Memory Seats)
G01842965Courtesy of GENERAL MOTORS CORP.

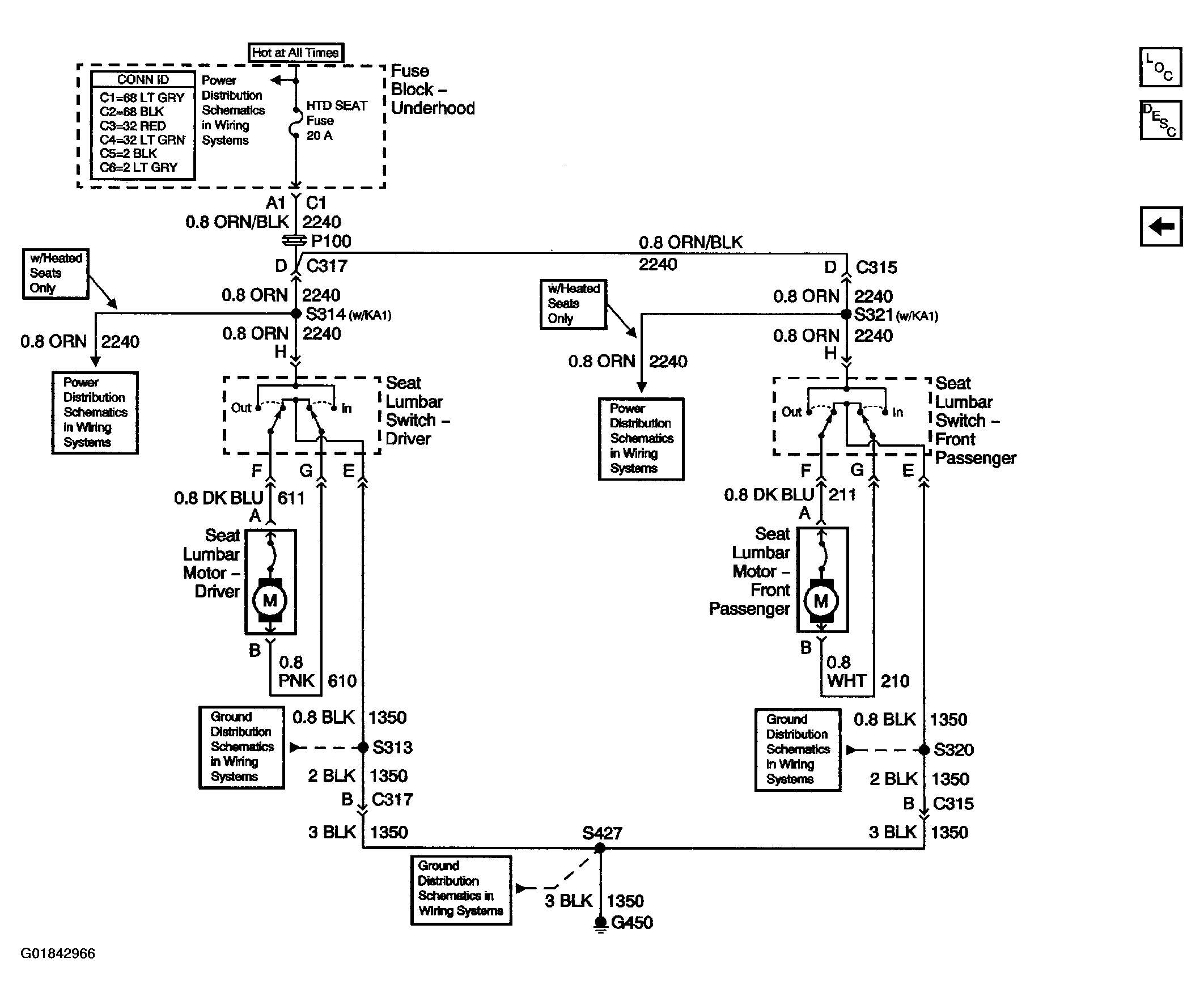

Fig 2: Lumbar Support Schematics (Lumbar w/ Memory Seats)
G01842966Courtesy of GENERAL MOTORS CORP.
