Door Lock Function Inoperative with Transmitter

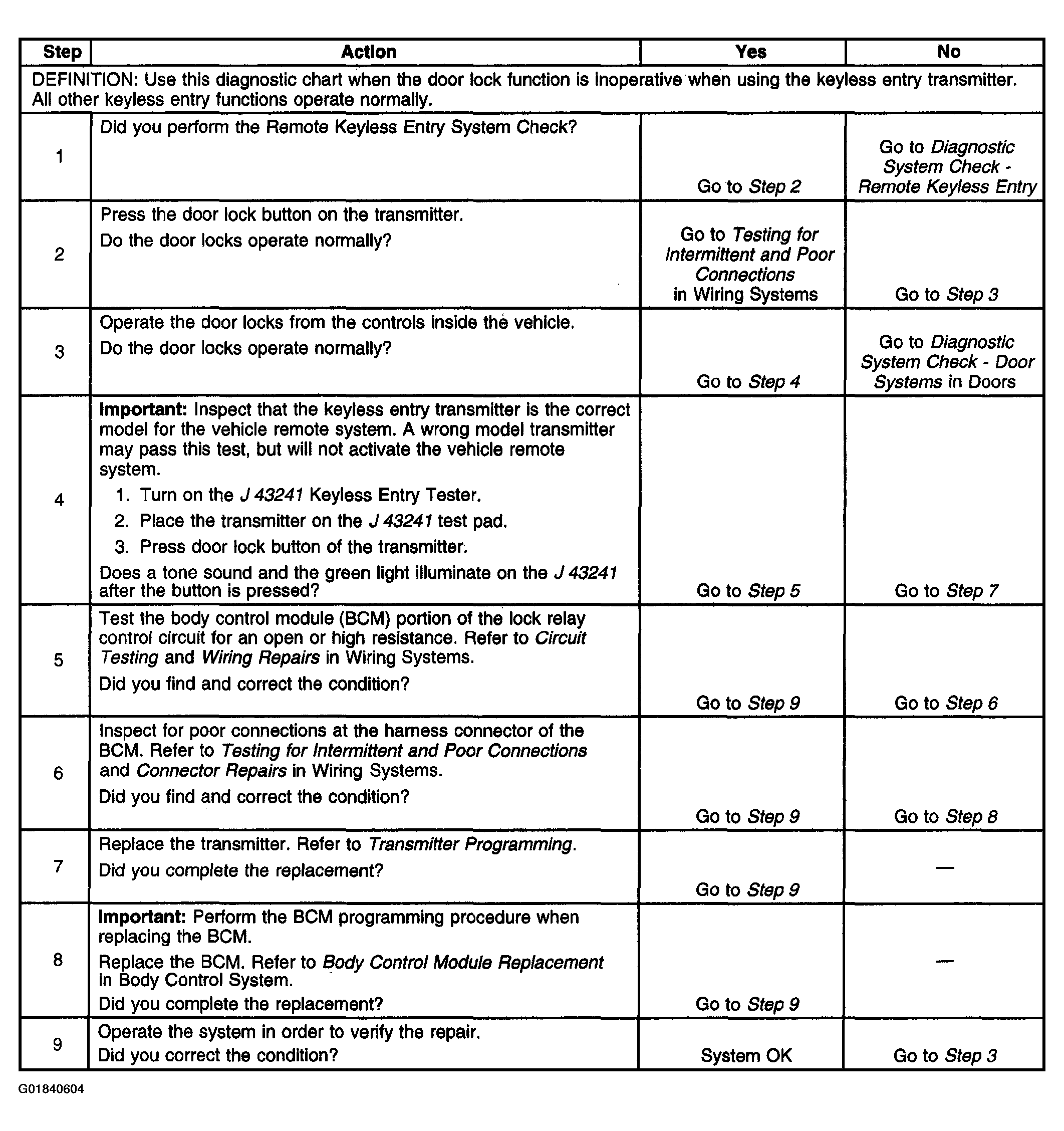

Fig 1: Door Lock Function Inoperative With Transmitter

G01840604

Courtesy of GENERAL MOTORS CORP.
