Removal Procedure

  1. Remove the wiper motor electrical connector.
  2. Remove the cover screws.
  3. Remove the cover.
  4. Remove the circuit board and terminal module by lifting up on the terminal.

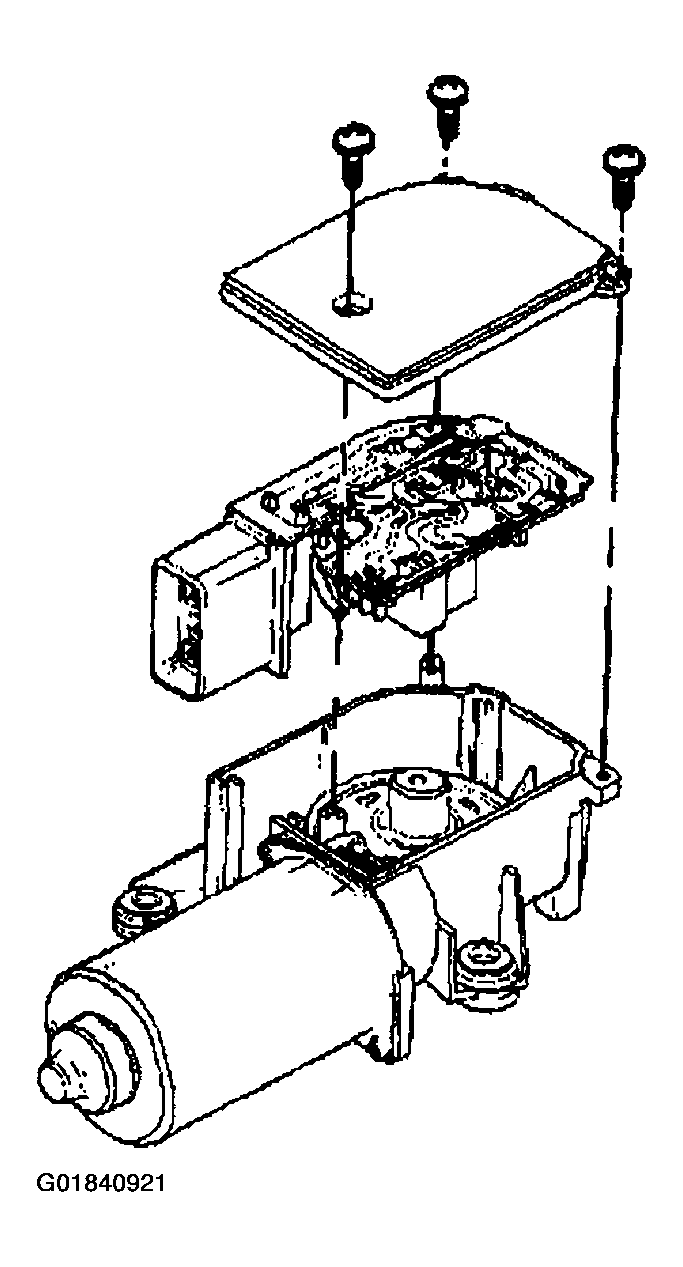

    Fig 1: Locating Wiper Motor Circuit Board & Terminal Module
    G01840921Courtesy of GENERAL MOTORS CORP.
