Cruise Control Component Views
Cruise Control Component Views

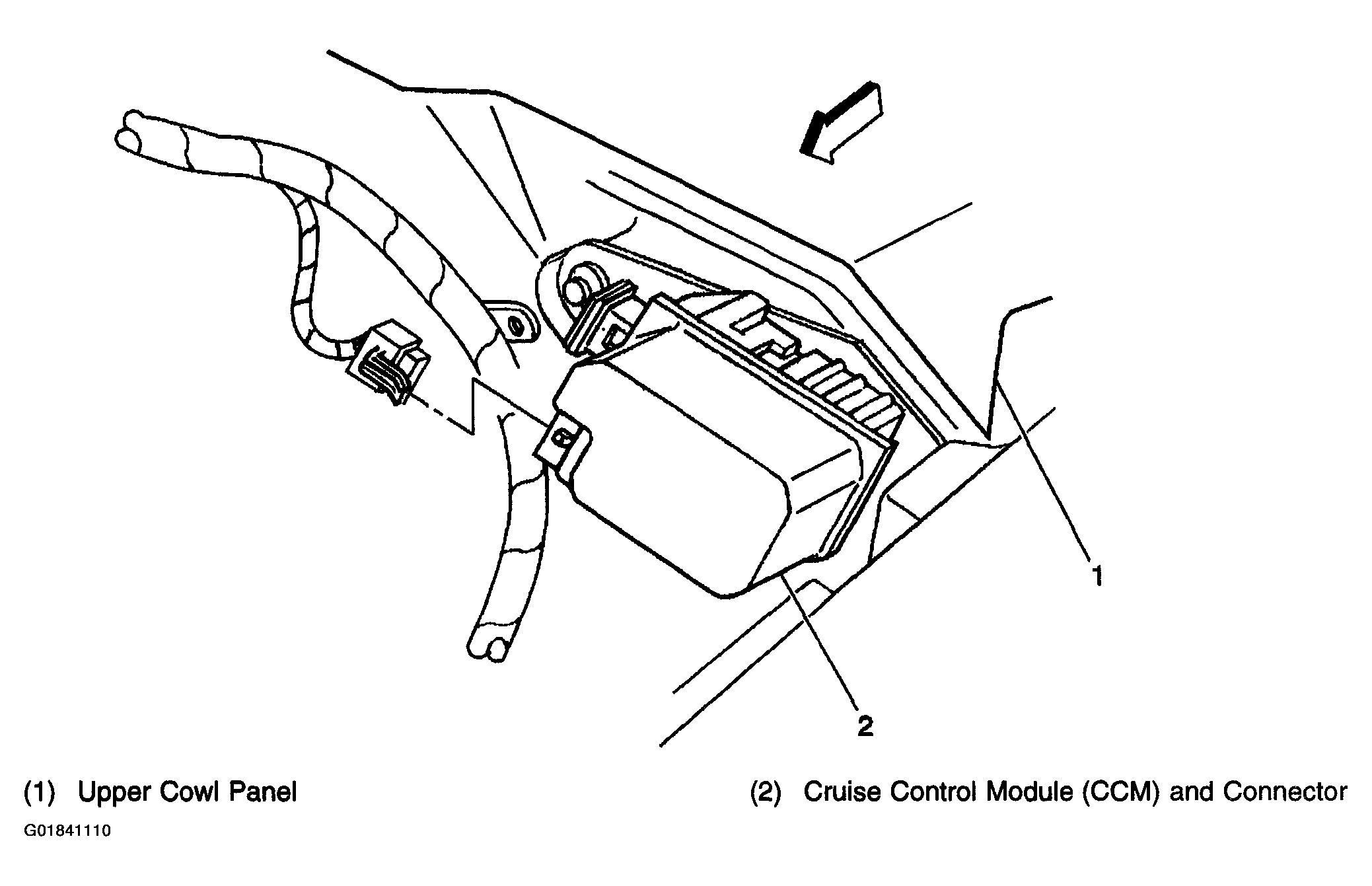

Fig 1: Cruise Control Module (CCM)
Courtesy of GENERAL MOTORS CORP.

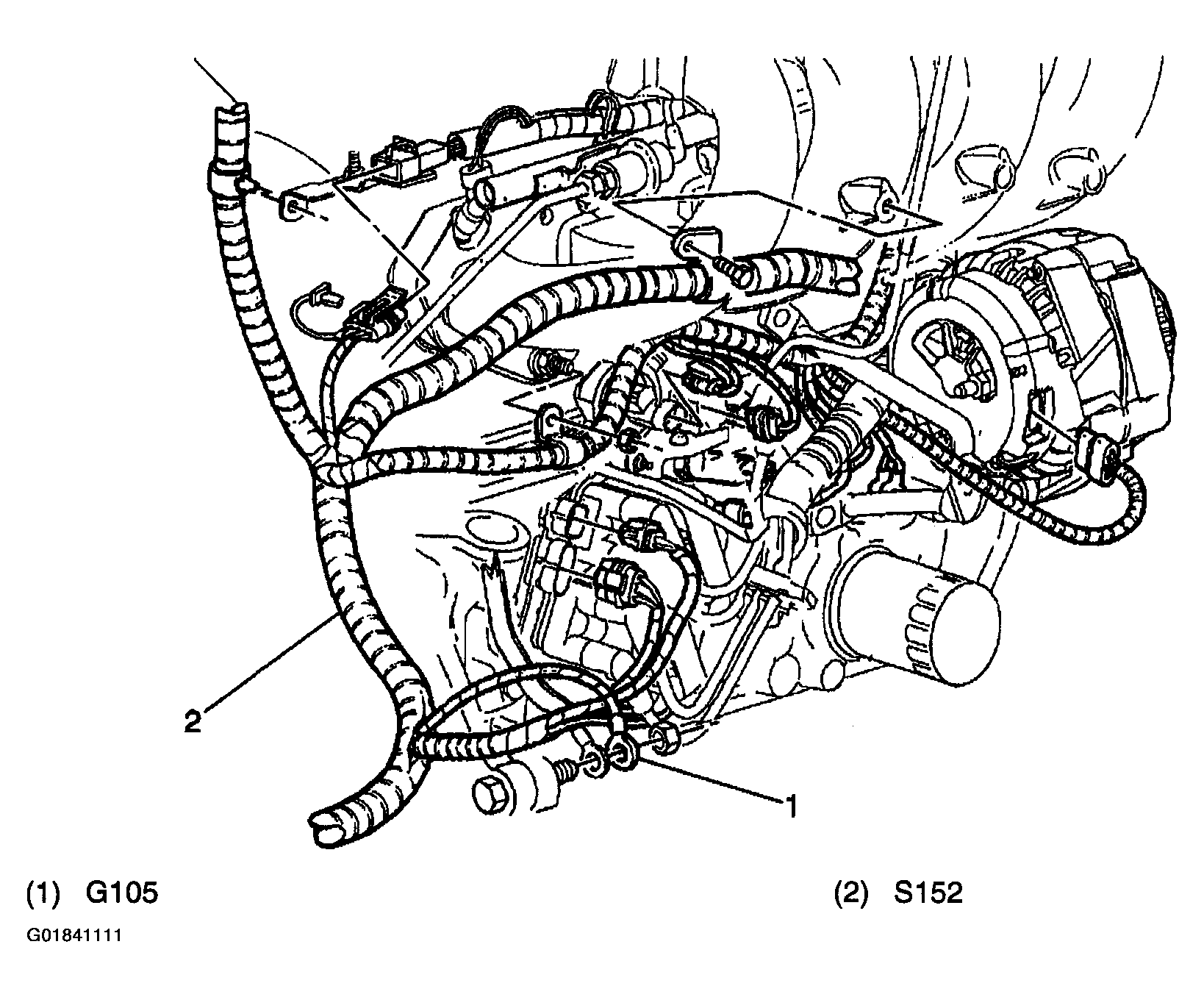

Fig 2: G105, S152
Courtesy of GENERAL MOTORS CORP.
Fig 3: Instrument Panel, LF
Courtesy of GENERAL MOTORS CORP.
Fig 4: Instrument Panel, RF
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
