Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

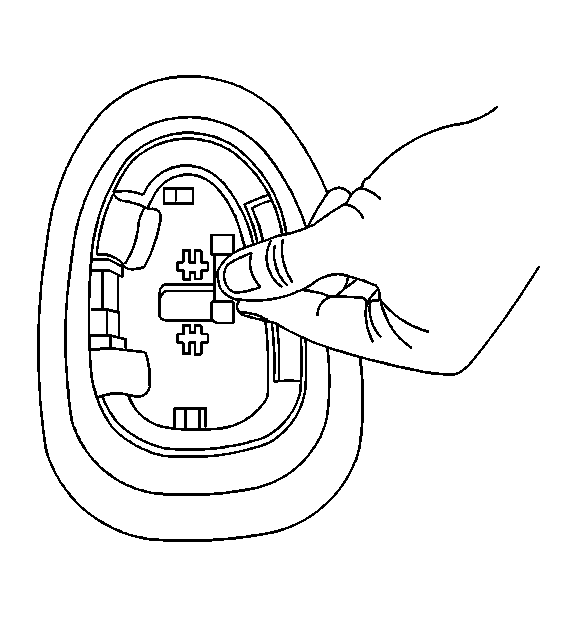

    Fig 1: Removing/Installing Bulb From The Dome Lamp
    GM548993Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb to the dome lamp.
    2. Fig 2: Removing/Installing Dome Lamp Lens
    GM245041Courtesy of GENERAL MOTORS CORP.
  2. Install the dome lamp lens.
