Installation Procedure

  1. Install the adjustment bolt cover.
  2. Snap the adjustment bolt cover into place.

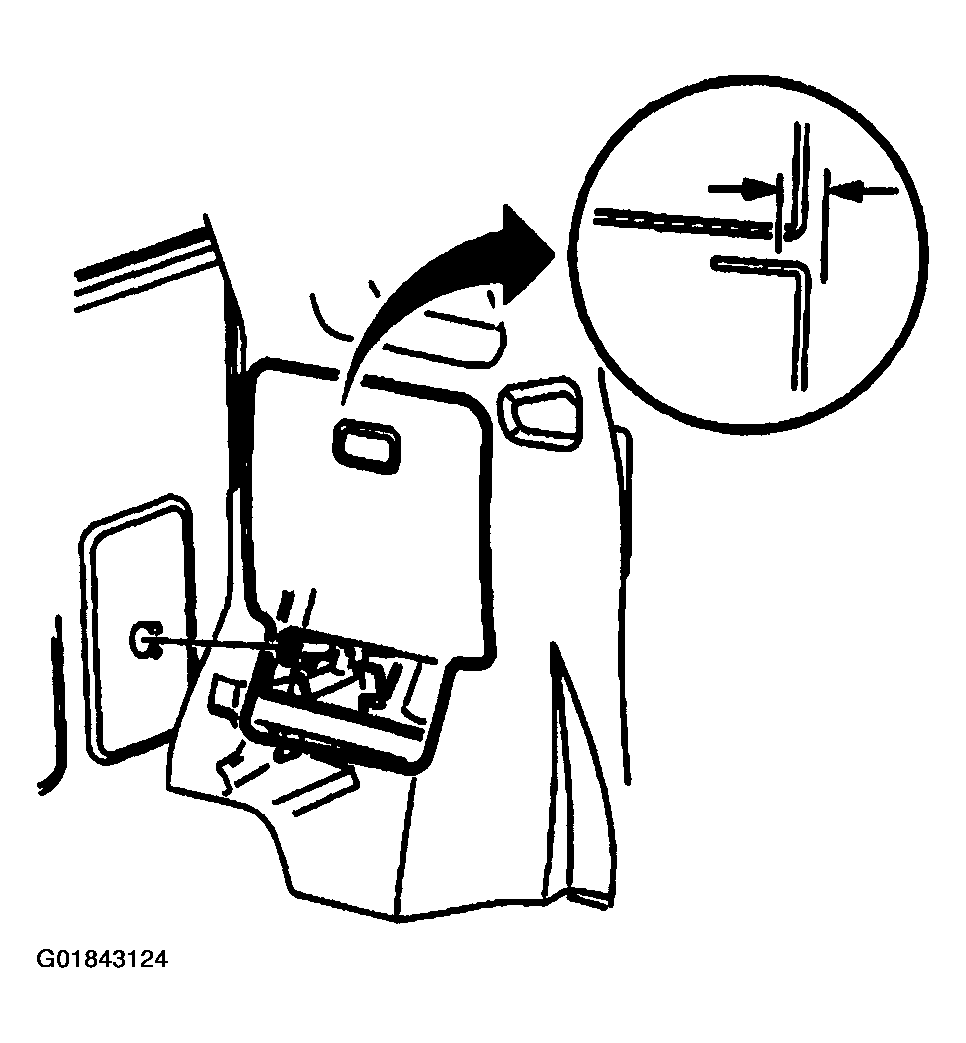

    Fig 1: Identifying Jump Seat Adjusted Position
    G01843124Courtesy of GENERAL MOTORS CORP.
