Seat Rear Vertical

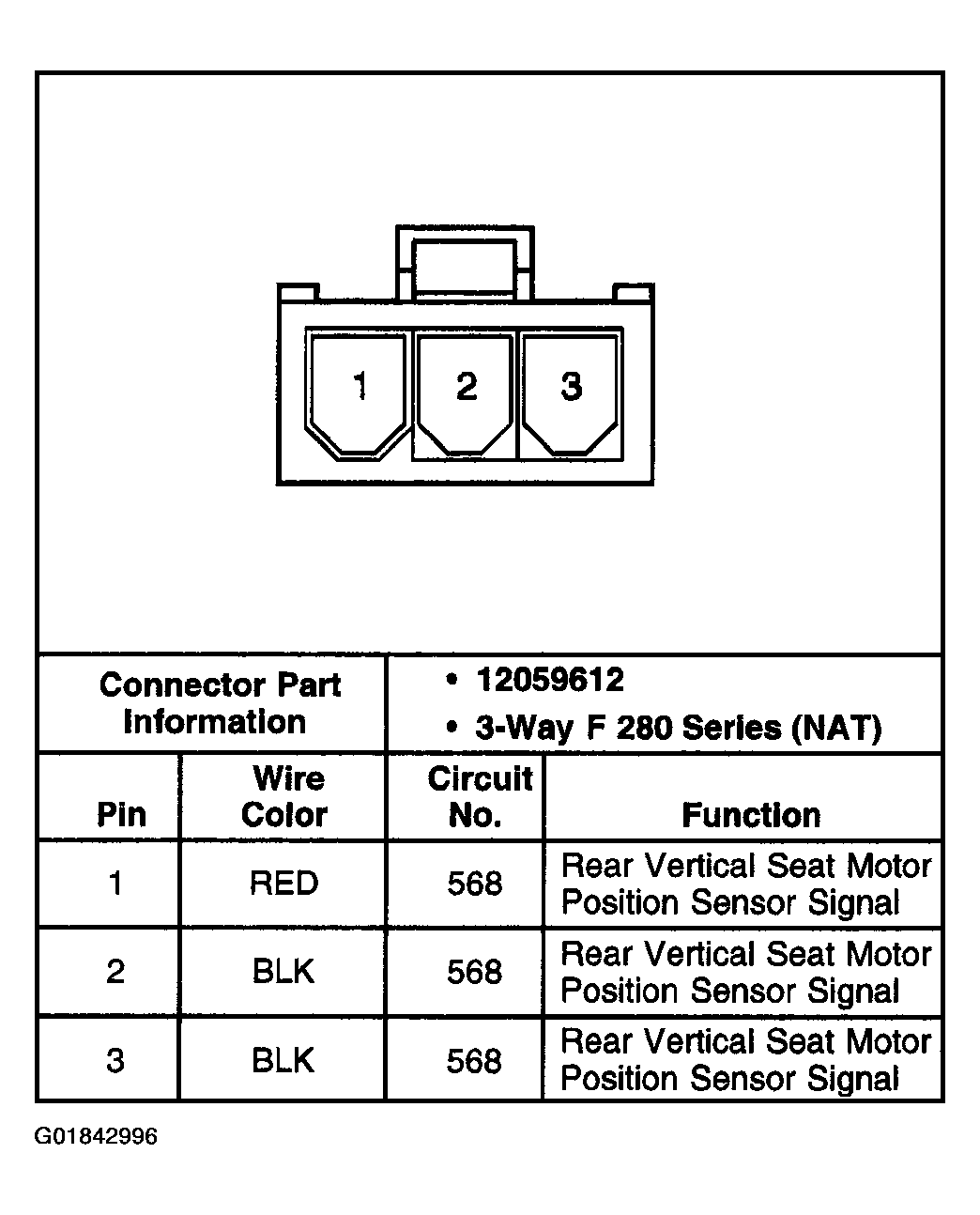

Fig 1: Seat Rear Vertical Position Motor - Memory
G01842996Courtesy of GENERAL MOTORS CORP.

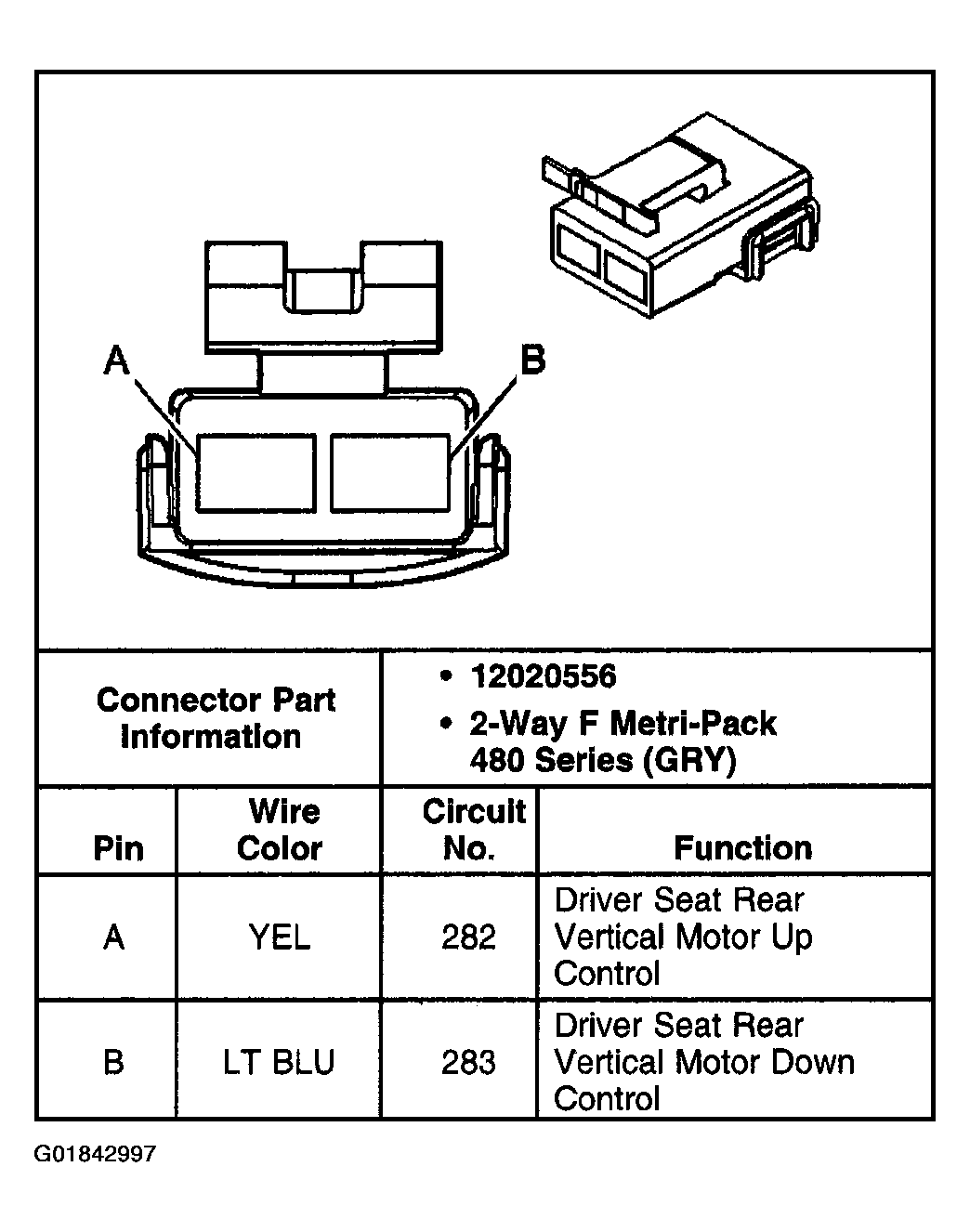

Fig 2: Seat Rear Vertical Motor - Driver
G01842997Courtesy of GENERAL MOTORS CORP.

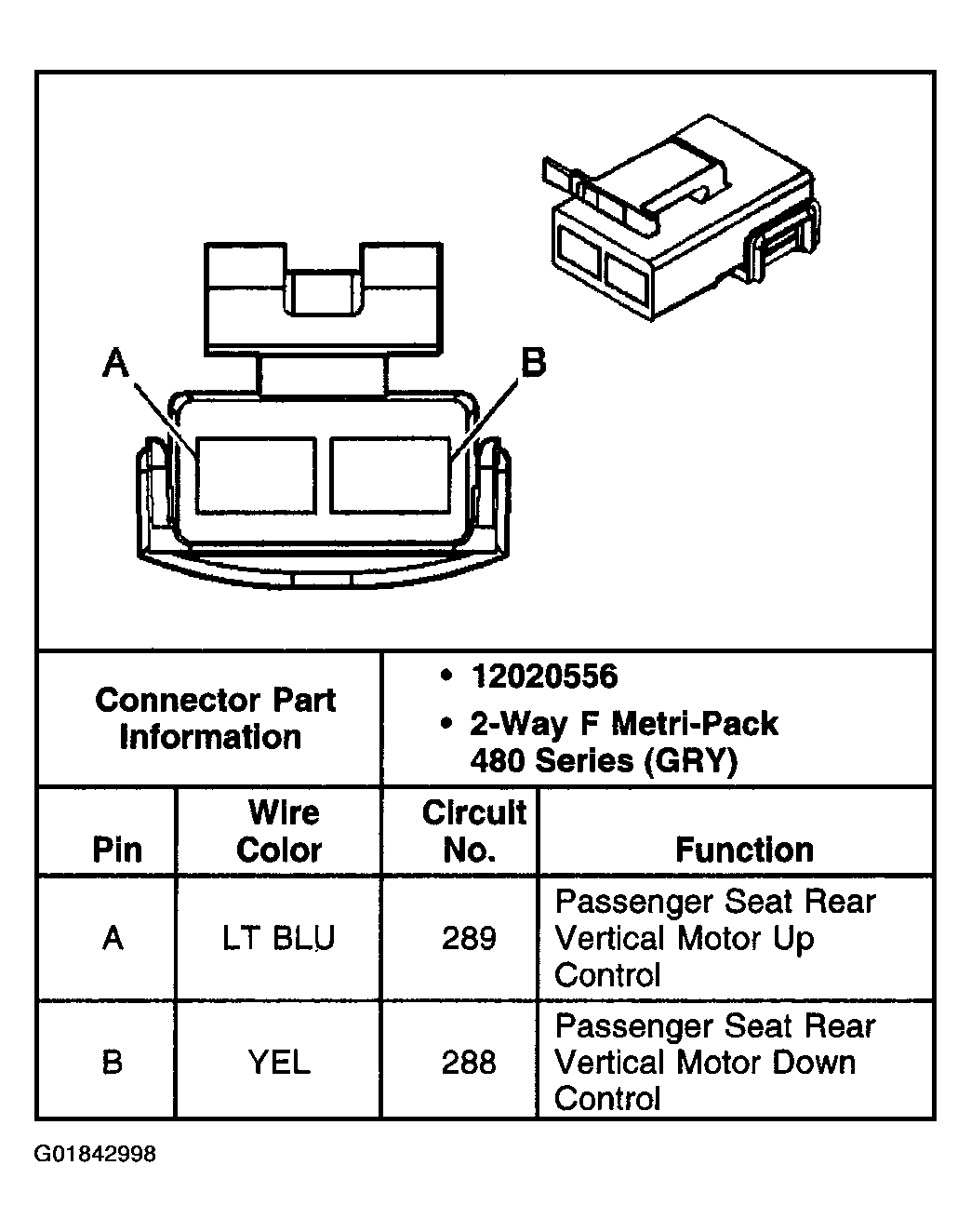

Fig 3: Seat Rear Vertical Motor - Front Passenger
G01842998Courtesy of GENERAL MOTORS CORP.
