Installation Procedure

Install the power steering pump.
NOTE: Refer to FASTENER NOTICE .
Install the power steering pump front mounting bolts.
Tighten

Tighten the power steering pump front mounting bolts to 30 N.m (22 lb ft).
Install the power steering pump rear mounting bracket bolt.
Install the power steering pump rear mounting bracket nuts to the engine studs.

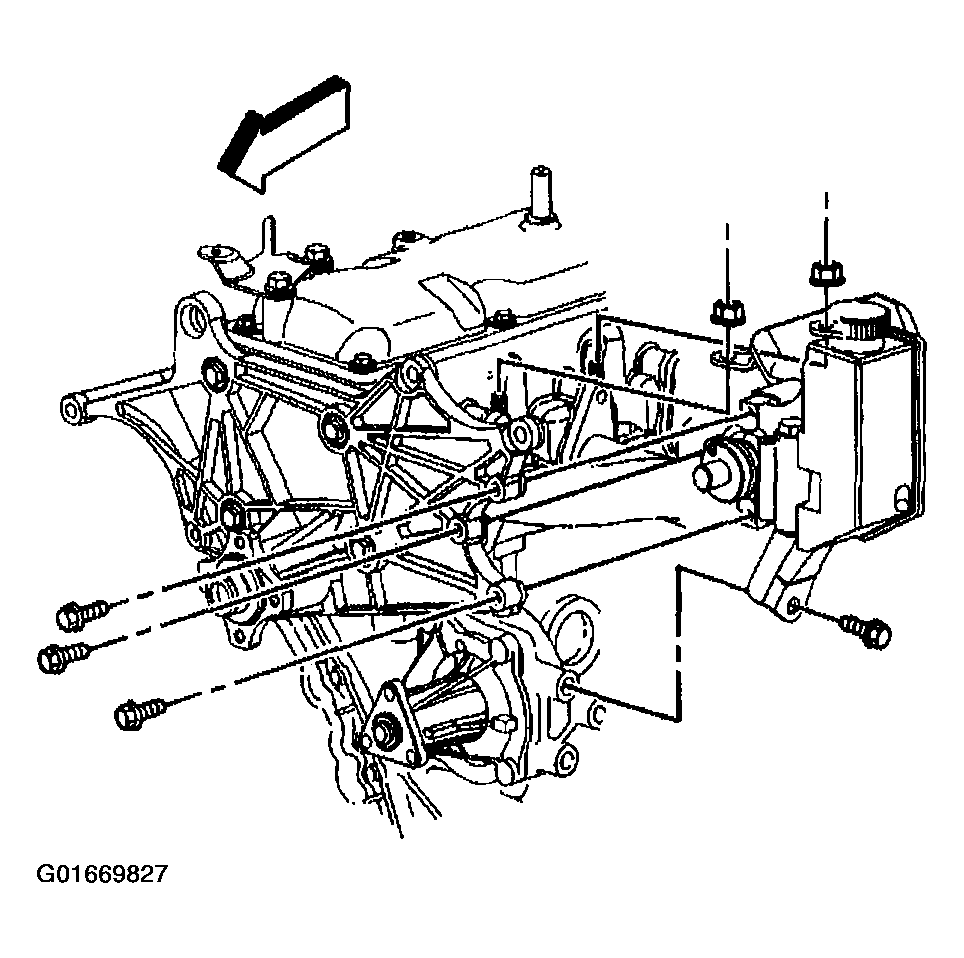

Fig 1: Installing Power Steering Pump & Bolts (2.2L)
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the power steering pump rear mounting bracket bolt and nuts to 50 N.m (37 lb ft).
Install the A/C compressor to the accessory bracket.
Install the A/C compressor rear bracket mounting bolts.
Tighten

Tighten the A/C compressor rear bracket mounting bolts to 31 N.m (23 lb ft).
Install the A/C compressor mounting bolts.
Tighten

Tighten the A/C compressor mounting bolts to 50 N.m (37 lb ft).

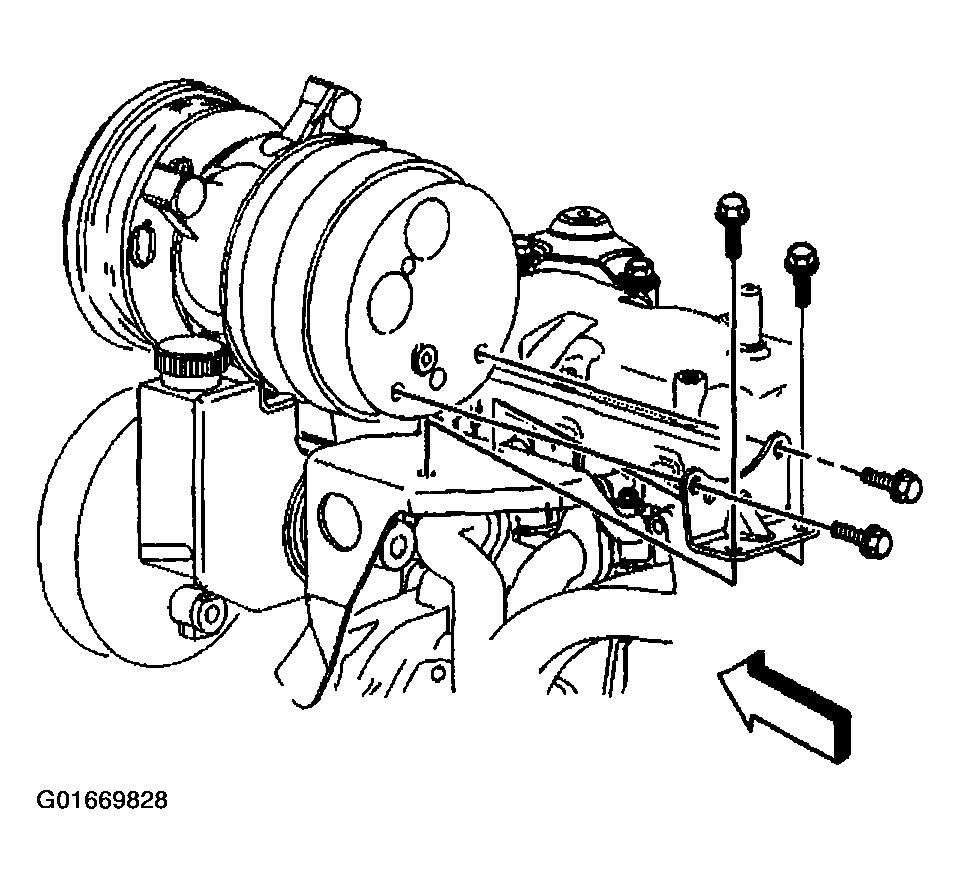

Fig 2: Installing A/C Compressor, Bracket & Bolts (2.2L)
Courtesy of GENERAL MOTORS CORP.
Connect the A/C compressor electrical connection.
Install the power steering pump pulley. Refer to Power Steering Pulley Replacement .
Install the drive belt. Refer to DRIVE BELT REPLACEMENT .

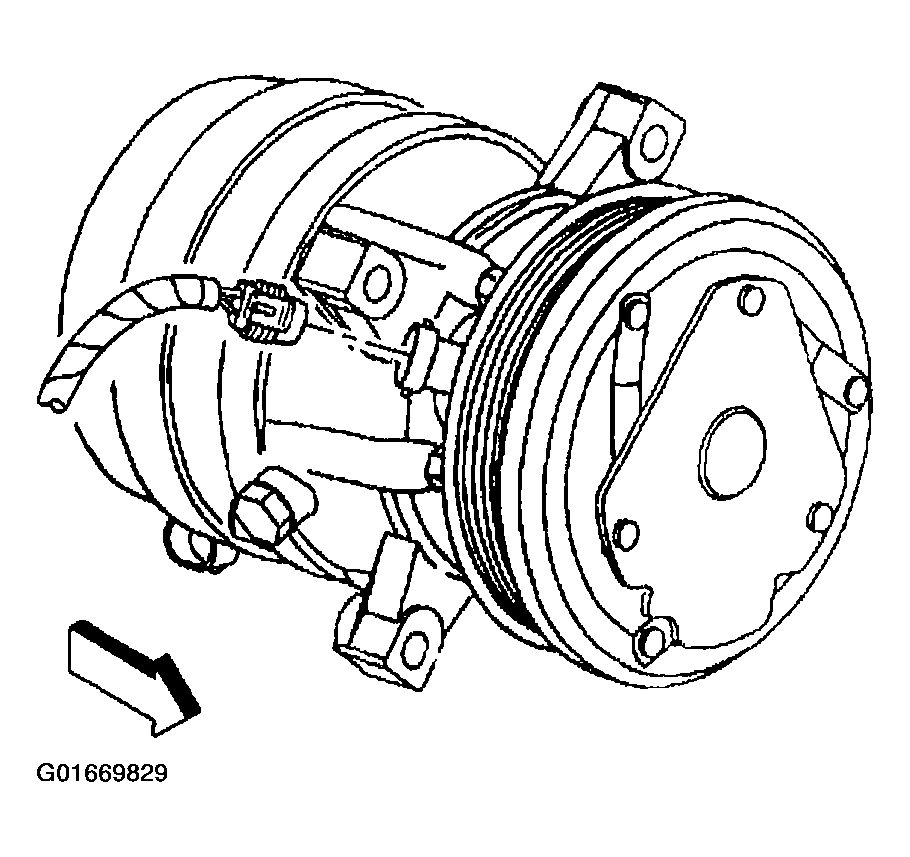

Fig 3: Connecting A/C Compressor Electrical Connection (2.2L)
Courtesy of GENERAL MOTORS CORP.
Install the power steering pump hoses.
Install the upper fan shroud. Refer to FAN SHROUD REPLACEMENT .
Fill the power steering system.
Bleed the system. Refer to Bleeding the Power Steering System .
Inspect the hoses for clearance away from the frame and other components.

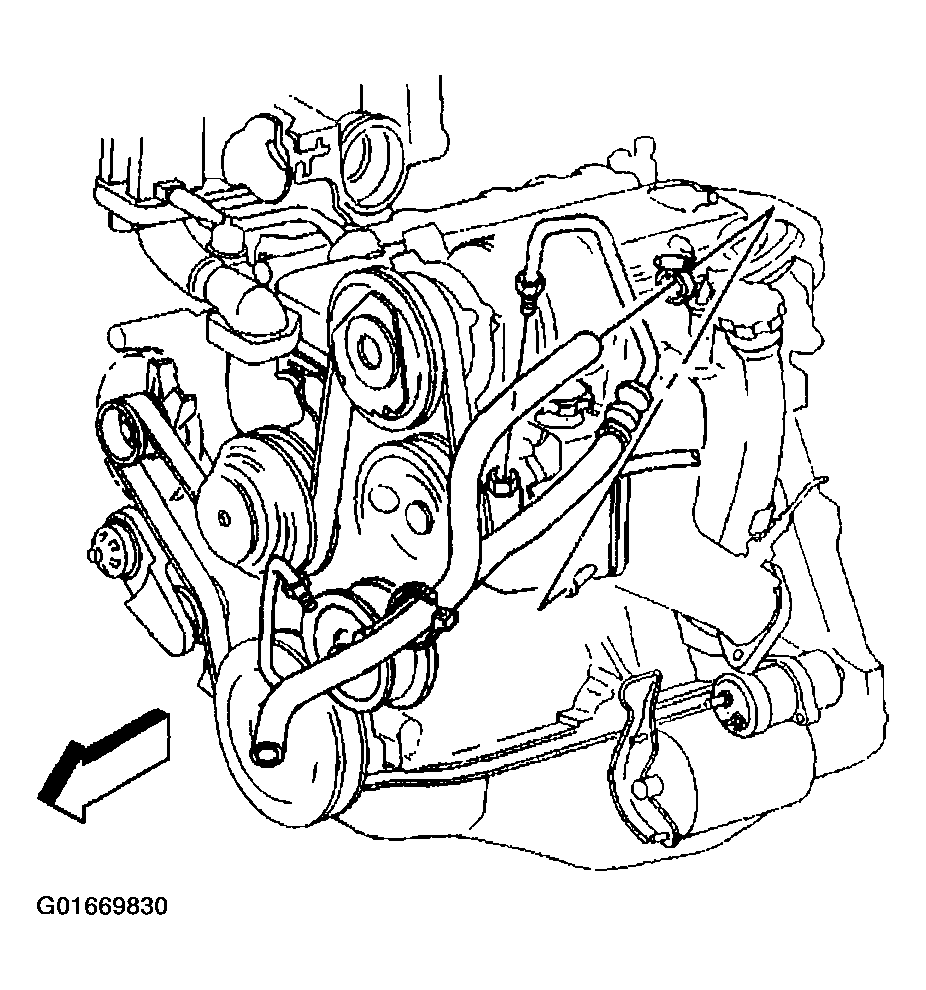

Fig 4: Installing Power Steering Pump Hoses (2.2L)
